System Sensor FL0111E Quick Installation Manual

DESCRIPTION
The LT FL01 Series is part of the Fire Alarm Aspiration Sensing
Technology (FAAST) family. FAAST is an advanced fire detection
®
system for use where early warning and very early warning are a
requirement. The system continuously draws air from the controlled
environment through a series of sampling holes to monitor the
environment for smoke particulate.

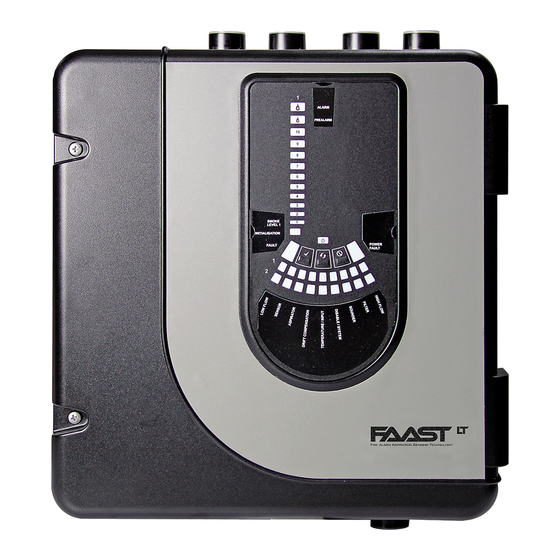

The FL01 is the stand-alone version of the FAAST LT range and is
available in 3 different models:
FL0111E - Has single channel capability with one laser smoke
sensor.
FL0112E - Has single channel capability with two laser smoke
sensors in a common chamber for coincidence
detection.
FL0122E - Has two channel capability with two laser smoke
sensors in separate chambers. (One sensor for each
channel).
This guide provides information for mounting and basic installation
using the unit's default factory settings.
information please see the FAAST LT Advanced Setup and Control
Guide - reference D200-100-00.
SPECIFICATIONS
Electrical Characteristics
Voltage Range:
Supply Current: 1 Channel:
2 Channel:
Configurable Input: Activation Time:
Relay Contact Ratings:
Environmental Ratings
Temperature:
Relative Humidity:
IP Rating:
Mechanical
Exterior Dimensions:
Wiring:
Maximum Single Pipe Length:
Maximum Number of Holes:
D200-101-00
FIRE ALARM ASPIRATION SENSING TECHNOLOGY
STAND-ALONE FAAST LT MODELS FL0111E FL0112E FL0122E
For more extensive
18.5 - 31.5 VDC
170mA (typical); 360mA (max) @
24 VDC 25 C (excluding sounders)
o
270mA (typical); 570mA (max) @
24 VDC 25 C (excluding sounders)
o
2s (min)
2.0 A @ 30 VDC, 0.5A @ 30 VAC
-10°C to 55°C
10% to 93% (non-condensing)
65
See Figure 1
0.5 mm² to 2 mm² max
100m (Classes A. B & C)
See Table 1A

QUICK INSTALLATION GUIDE

356 mm

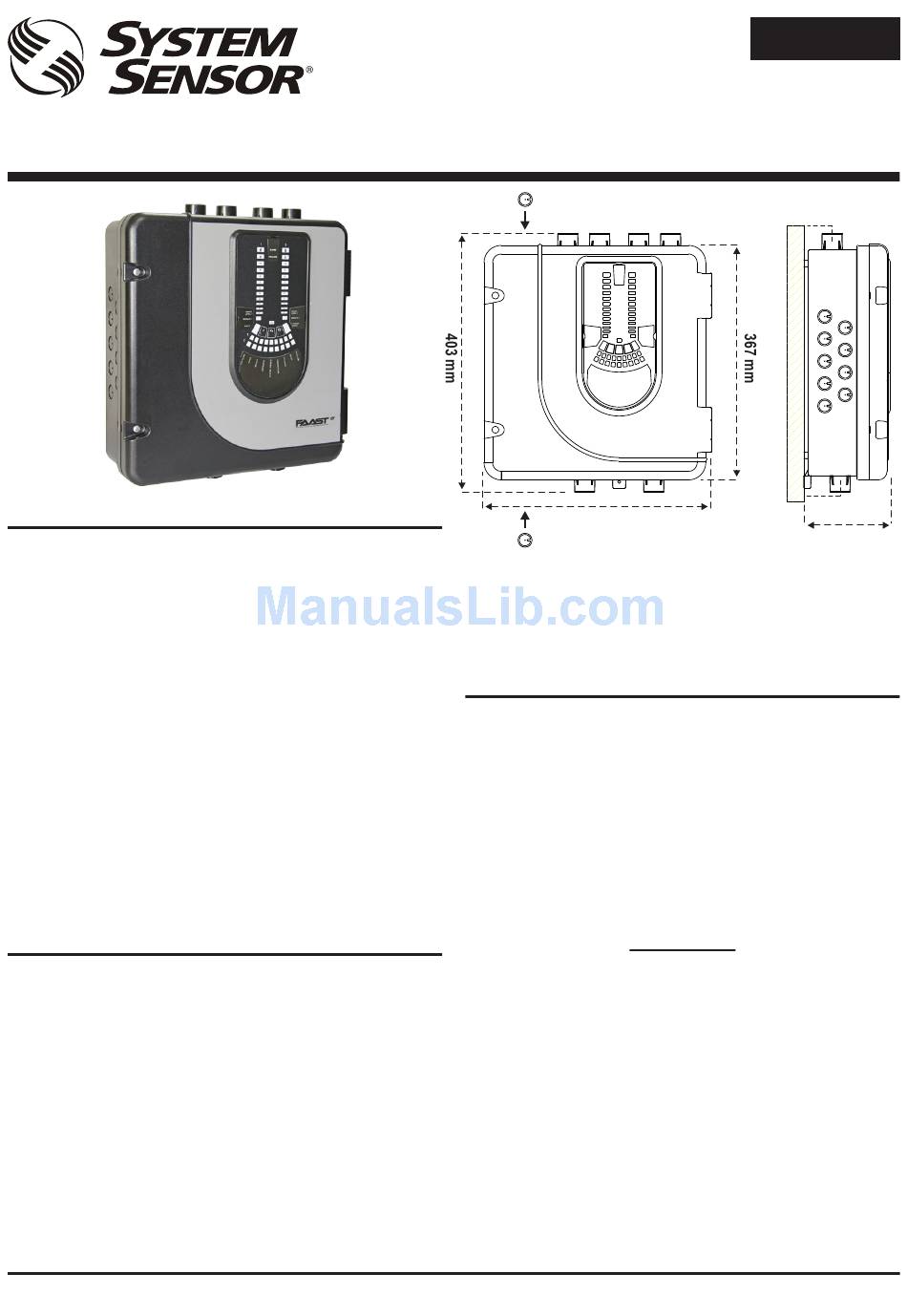

Figure 1: Dimensions and Knock-Outs
Pipe Spec (EN54-20 Compliance):
Outside Pipe Diameter:
Shipping Weight:
PARTS LIST
Description
FAAST LT unit
Mounting bracket
3-pin Terminal block
4-pin Terminal block
2-pin Terminal block
47 k-ohm EOL Resistor
USB Cable
Front Panel Labelling Pack
Installation Kit CD
Quick Installation Guide
Aspirating Smoke Detectors supplied and installed within the
EU must conform to the EU Construction Products Directive
(89/106/EEC) and the related European Product Standard EN
54-20. FAAST LT has been tested and certified to ensure that it
conforms to the necessary Standards, but strict adherence to this
instruction guide is advised to ensure that the installation meets
the requirements of the CPD Directive
1
E N G L I S H
to EN 61386
(Crush 1, Impact 1, Temp 31)
25mm (nom) or 27mm (nom)
6.5kg (inc sensors)
Quantity
1
1
6
1
3
2
1
1
1
1
Important Note
®
44 mm
56 mm
135 mm
I56-3888-103
