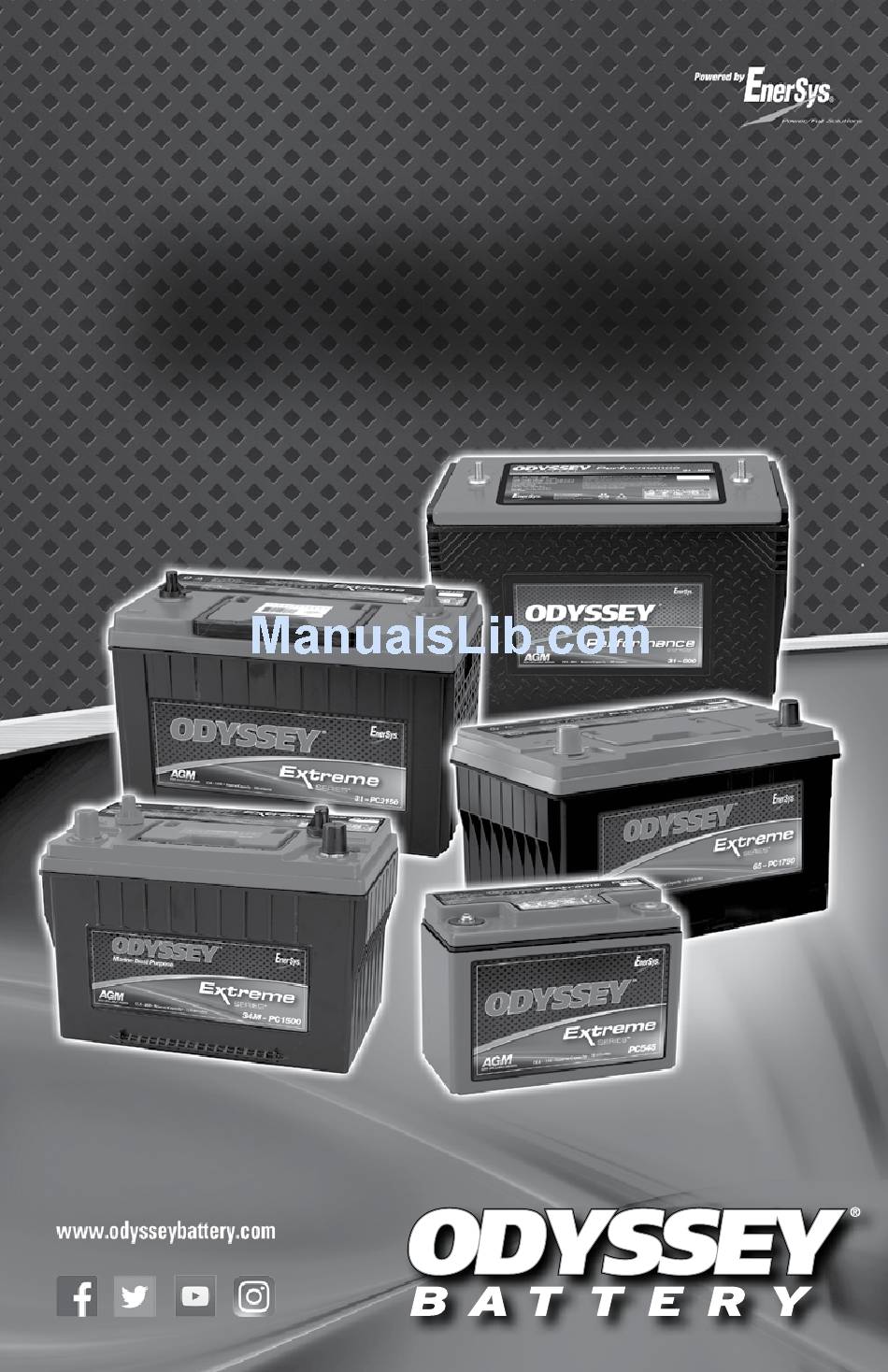

- Page 1 OWNER'S MANUAL E N G I N E E R E D W I T H T H I N P L A T E P U R E L E A D ( T P P L ) T E C H N O L O G Y EXTREME POWER AND ENDURANCE...
- Page 2 ® GUARANTEED LONGER SERVICE LIFE With an eight to 12 year design life (float) and a three to 10 year service life, ODYSSEY batteries save you time and money because you do not have to replace the battery as often. Since actual warranty can vary with your geographical location, please check with your ODYSSEY battery representative for the warranty specific to your application.
-
Page 3: Installation
• REMOVING THE LABELED COVER • REMOVING OR DESTROYING THE BATTERY’S DATE CODE ODYSSEY EXTREME SERIES™ BATTERY WARNING – DO NOT USE ANY TYPE OF OIL, ORGANIC SOLVENT, ALCOHOL, DETERGENT, STRONG ACIDS, STRONG ALKALIS, PETROLEUM-BASED SOLVENT OR AMMONIA SOLUTION TO CLEAN THE BATTERY COVERS AND BATTERY TOPS. - Page 4 ODYSSEY EXTREME SERIES BATTERIES ™ ® 1.00” 3/8-16 THREAD M6 THREAD (25.4 mm) 3/8-16 M6 FEMALE THREAD .65”-.75” M6 FEMALE THREAD 0.43” (16.5-19.1mm) THREAD (11.0 mm) 0.53” (13.5 mm) PC1800-FT ALL OTHER MODELS PC535 PC625 PC370 PC950 PC1100 31-PC2150S (FRONT TERMINAL)
-
Page 5: Special Notice
ODYSSEY battery may run out of charge due to low amperage output of the bike's stator at low rpms. After riding, turn the bike's engine off but leave the lights on for 30 seconds. - Page 6 6 or more hours, 95°F (35°C) Figure 1 can be used to determine the SOC of the ODYSSEY battery. Use a high 113°F (45°C) quality digital voltmeter to measure its OCV. The graph shows that a healthy,...
- Page 7 † Can be fitted with brass automotive terminal. Height shown includes SAE post. Optional metal jackets available on PC545, PC680, PC925, PC1200, PC1700 and 31-PC2150. Operating Temperature Range: PC310 and PC1800-FT: -40°F (-40°C) to 122°F (50°C), PC370, PC950 and PC1100: -40°F (-40°C) to 122°F (50°C), PC535 and PC625: -40°F (-40°C) to 113°F (45°C), PC545, PC680, PC925, PC1200 and PC1700 without metal jacket: -40°F (-40°C) to 113°F (45°C), PC545, PC680, PC925, PC1200 and PC1700 with metal jacket: -40°F (-40°C) to...
-
Page 8: Maintenance
® openly vented. The ODYSSEY battery is and operates as a sealed battery, recycling nearly all gases internally under normal operating conditions. There is no corrosion of the positive terminal or corrosion to the surrounding area. ODYSSEY batteries are shipped fully charged from the factory, but prior to installation, check the battery’s... -
Page 9: Parallel Connection
Low power 2.0 amp chargers for storage charge will keep a fully charged battery fully charged but cannot recharge if the ODYSSEY battery becomes discharged. Racing Vehicles using total loss (no alternator) - standard automotive type chargers are not designed to return 105-108% of the energy removed. -
Page 10: Battery Connection
24V MOTOR 36V BATTERY CONNECTION To power a 36V trolling motor, you will need to connect three ODYSSEY batteries in series. As shown in the bottom illustration, the negative of Battery 1 is wired to the positive of Battery 2; the negative of Battery 2 is then connected to the positive of Battery 3. -
Page 11: Winter Storage
13.5V and 13.8V. We recommend using the ODYSSEY battery portable charger for your battery. Additional information on ODYSSEY battery portable chargers, where to buy ODYSSEY battery chargers and ODYSSEY battery charging in general can be found on our website at www.odysseybattery.com. www.odysseybattery.com... - Page 12 HOW TO OBTAIN WARRANTY SERVICE: A. Retail, Dealer or Wholesaler Purchases: return the Battery to the original supplying wholesaler or dealer with original purchase receipt. If not feasible, other ODYSSEY battery distributors/ dealers can be approached but a warranty processing fee may be applied.
