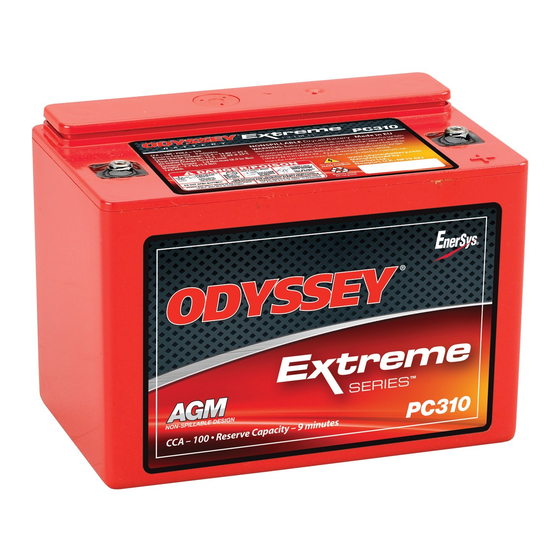

Odyssey PC310 Owner's Manual
  1. Manuals
  2. Brands
  3. Odyssey Manuals
  4. Battery Pack
  5. PC310
  6. Owner's manual

Odyssey PC310 Owner's Manual

Hide thumbs Also See for PC310:
Table of Contents

Advertisement

Quick Links

See also: User Manual
OWNERS MANUAL
E N G I N E E R E D W I T H T H I N P L A T E P U R E L E A D ( T P P L ) T E C H N O L O G Y
EXTREME POWER
AND ENDURANCE
www.odysseybattery.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Odyssey PC310

Summary of Contents for Odyssey PC310

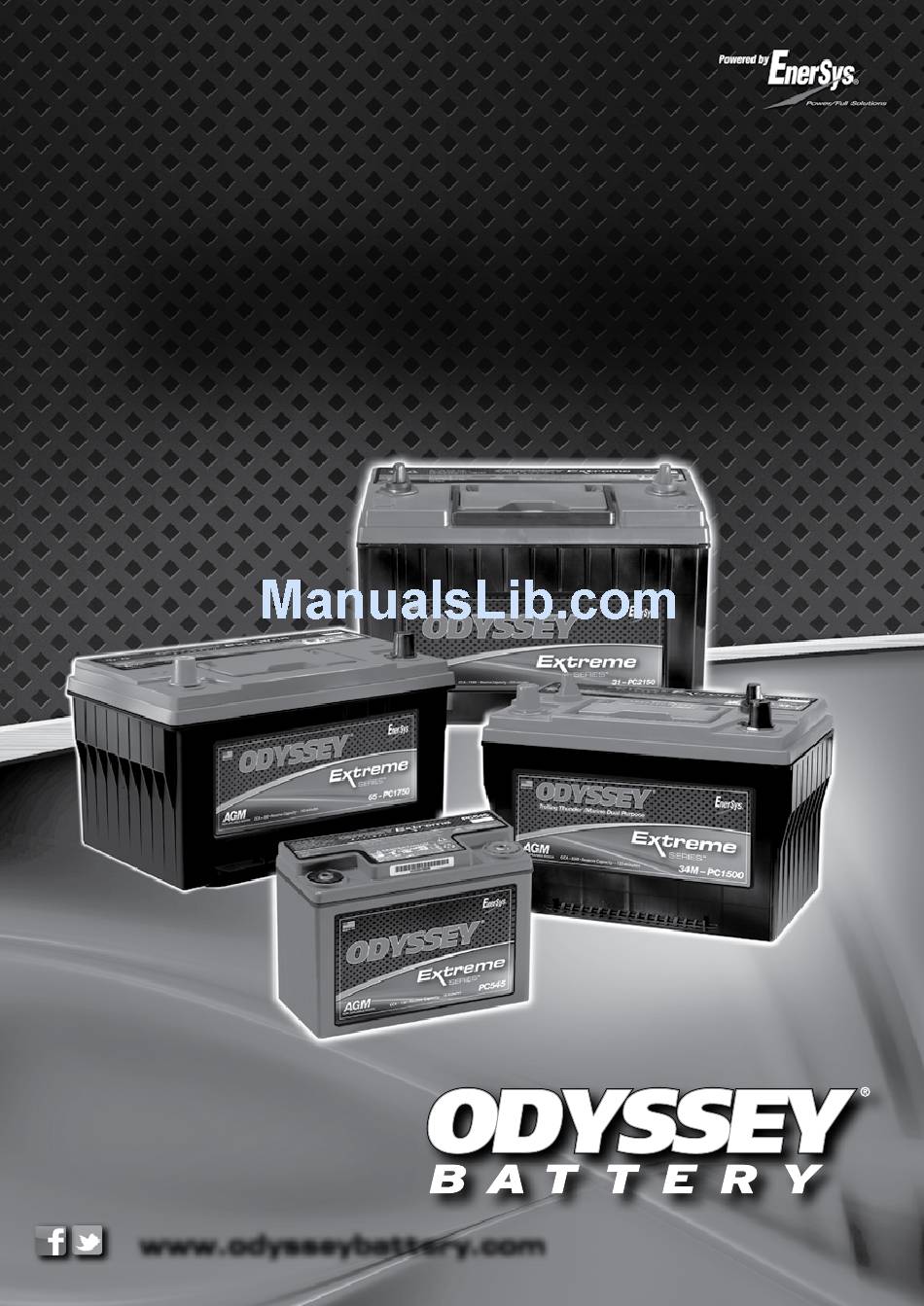

  • Page 1 OWNERS MANUAL E N G I N E E R E D W I T H T H I N P L A T E P U R E L E A D ( T P P L ) T E C H N O L O G Y EXTREME POWER AND ENDURANCE www.odysseybattery.com...
  • Page 2 80% depth of discharge (DOD). A typical starting, lighting and ignition (SLI) battery can do one or the other, but not both. It is either a sprinter or a long distance runner; ODYSSEY batteries will do both –...
  • Page 3 2. Inspect existing battery cables for corrosion, acid damage or insulation deterioration. Replace if deterioration is present. 3. Position your ODYSSEY battery in the battery holder and fasten firmly to the vehicle. • Optional height adapter may be used on 34-PC1500 models for installations where a group 24 or group 27 is required.
  • Page 4 If your V-Twin motorcycle is equipped with a standard 32 amp single phase stator/alternator and you ride at a low engine rpm around town or even on long rides, the appropriate ODYSSEY battery may run out of charge due to ®...
  • Page 5 Optional metal jackets available on PC545, PC680, PC925, PC1200, PC1700 and 31-PC2150 Operating Temperature Range: PC310 and PC1800-FT: -40°F (-40°C) to 122°F (50°C), PC370, PC950 and PC1100: -40°F (-40°C) to 122°F (50°C), (PC535 and PC625: -40°F (-40°C) to 113°F (45°C), PC545, PC680, PC925, PC1200 and PC1700 without metal jacket: -40°F (-40°C) to 113°F (45°C), PC545, PC680, PC925, PC1200 and PC1700 with...
  • Page 6 11.88 Volts To get long life from the ODYSSEY battery, it is important that the battery is kept near full charge, approximately 12.8 volts. If there are electrical loads during storage, then the negative battery cable should be disconnected or an independent float charger used.
  • Page 7 36V BATTERY CONNECTION To power a 36V trolling motor, you will need to connect three ODYSSEY batteries in series. As shown in the bottom illustration, the negative of Battery 1 is wired to the positive of Battery 2; the negative of Battery 2 is then connected to the positive of Battery 3.
  • Page 8 Batteries for warranty replacement consideration are to be returned to the original supplying distributor/dealer. If not feasible, other ODYSSEY ® distributors/dealers can be approached but a warranty processing fee may be applied. This warranty may vary from country to country; contact your authorized ODYSSEY ®...
  • Page 9 Technical Manual SEVENTH EDITION ® Publication No: US-ODY-TM-001 - April 2011...

  • Page 10: Table Of Contents

    Shock and vibration test per IEC 61373, Sections 8-10 This edition also includes Charging ODySSEy batteries ® updated test data on ODySSEy Selecting the right charger for your battery batteries. Selecting battery type on your charger Rapid charging of ODySSEy batteries ®...

  • Page 11: Why Use Odyssey Batteries

    A traditional battery resembles either a sprinter or a long distance runner; an ODYSSEY battery will do both - provide short duration high amperage pulses or low rate, long duration drains.

  • Page 12: Extended Discharge Characteristics

    ® battery can deliver many deep discharge cycles, yet another area where the ODYSSEY battery outperforms a conventional SLI battery, which can deliver only a few deep discharge cycles. The following twenty graphs show detailed discharge characteristics of the entire ODYSSEY battery line. The end of discharge voltage in each case is 10.02V per battery or 1.67 volts per cell (VPC).
  • Page 13 ® EnErgy And poWEr dEnsiTiEs PC535 & ER18 performance data at 25°C, per 12V module Time Watts Amps Capacity Energy (Ah) (Wh) W/liter Wh/liter W/kg Wh/kg Watts Amps 2 min 1182 112.0 3.40 35.5 450.7 13.5 218.9 10000 5 min 71.9 5.75 62.9...
  • Page 14 EnErgy And poWEr dEnsiTiEs PC680 & ER25 performance data at 25°C, per 12V module Time Watts Amps Capacity Energy (Ah) (Wh) W/liter Wh/liter W/kg Wh/kg Watts Amps 2 min 1486 143.0 49.5 601.4 20.0 212.3 10000 5 min 78.8 66.0 320.5 26.7 113.1...
  • Page 15 ® EnErgy And poWEr dEnsiTiEs Time Watts Amps Capacity Energy ER40 performance data at 25°C, per 12V module (Ah) (Wh) W/litre Wh/litre W/kg Wh/kg 2 min 3307.2 326.8 10.9 110.2 668.1 22.3 264.6 Watts Amps 5 min 2332.8 219.5 18.3 194.4 471.3 39.3...
  • Page 16 EnErgy And poWEr dEnsiTiEs 75-PC1230 & 75/86-PC1230 performance data at 25°C, Time Watts Amps Capacity Energy (Ah) (Wh) W/litre Wh/litre W/kg Wh/kg per 12V module 2 min 4561.7 432.9 14.3 150.5 531.5 17.5 221.4 5 min 2936.3 266.5 22.1 243.7 342.1 28.4 142.5...
  • Page 17 EnErgy And poWEr dEnsiTiEs 34-PC1500, 34R-PC1500, 34M-PC1500, 34/78-PC1500 & Time Watts Amps Capacity Energy (Ah) (Wh) W/liter Wh/liter W/kg Wh/kg 78-PC1500 performance data at 25°C, per 12V module 2 min 5228 494.8 16.3 172.5 538.1 17.8 209.9 Watts Amps 5 min 3337 304.4 25.3...
  • Page 18 EnErgy And poWEr dEnsiTiEs PC1800-fT performance data at 25°C, per 12V module Time Watts Amps Capacity Energy (Ah) (Wh) W/liter Wh/liter W/kg Wh/Kg 2 min 4422 491.4 16.4 147.4 199.6 73.7 Watts Amps 10000 5 min 4422 491.2 40.9 368.5 199.6 16.6 73.7...

  • Page 19: Peukert's Exponent

    I are two discharge current rates and T and T The relationship between DOD and cycle life for ODYSSEY the corresponding discharge durations. Knowing the rated batteries is shown in Figure 1. The lower the DOD the higher capacity of the battery and the coefficient (given in the table...

  • Page 20: Float Life

    8°C rise in battery temperature, the float life is cut in half. This means that an ODYSSEY battery that has a 10-year float life at 25°C (77°F) will have only a 5-year life at 33°C (91°F) and a 2-1/2 year float life at 41°C (106°F).
  • Page 21 Although over discharging a battery is not recommended, more than the capacity in Cycle 2. Replace the battery ODYSSEY batteries have a much higher level of tolerance if Cycle 3 capacity is less than Cycle 2 capacity. If the for this kind of abuse than traditional starting, lighting and capacity is greater than or equal to 80% of the rated ignition (SLI) batteries.

  • Page 22: Parasitic Loads

    Extreme cold temperature performance To see how this works, consider the ODYSSEY 31-PC2150 battery, which is a 92Ah BCI Group 31 size battery. Based High discharge rate performance in extremely cold on the percent discharge criteria given in the previous...

  • Page 23: Charging Odyssey

    No manual intervention is necessary with chargers having this profile. Table 4 shows the minimum charge currents for the full range of ODYSSEY batteries when they are used in deep figure 6: Recommended three-step charge profile cycling application. When using a charger with the IUU profile, we suggest the following ratings for your ODYSSEY battery.

  • Page 24: (A) Selecting The Right Charger For Your Battery

    Should you choose Cycling tests conducted on an ODYSSEY PC545 battery to use a manual charger with your ODYSSEY battery, do demonstrated the impact raising the charge voltage from not exceed charge times suggested in Table 5 below. It is 14.2V to 14.7V has on the cycle life of the battery.

  • Page 25: Rapid Charging Of Odyssey Batteries

    ® The charge times recommended in Table 5 assume that Table 6: fast charge capability the ODYSSEY battery is fully discharged and these charge Inrush current magnitude times will only achieve about a 80% state of charge. For Capacity partially discharged batteries, the charge times should be returned 0.8C...

  • Page 26: Odyssey

    6. Adjust the tester load current to lad the battery to half its As discussed in a previous section, properly charged rated CCA and apply the load for 15 seconds. Table 7 shows ODYSSEY batteries are capable of delivering as many as 400 the ½CCA values for all ODYSSEY battery models. Use ®...

  • Page 27: Parallel Connections

    This is also why these negatives to each other. batteries do not require periodic addition of water. The high recombination efficiency of ODYSSEY batteries Correct Wiring Connections make them safe for installation in human environments. It is not uncommon to see these batteries in aircraft, hospital operating rooms and computer rooms.

  • Page 28: Frequently Asked Sli Battery Questions

    0°C (32°F) until the battery voltage drops a gel form. If the ODYSSEY battery were to split open, there to 7.20 volts for a 12V battery. A 12V battery that has a...
  • Page 29 Wouldn’t they charge faster as a Ni-Cd? As mentioned before, this battery has very low impedance, No, the ODYSSEY battery is NOT a Ni-Cd battery. It is a valve meaning that the short circuit current is very high. For a regulated lead acid (VRLA) battery.
  • Page 30 Notes www.odysseybattery.com Publication No: US-ODY-TM-001 - April 2011...
  • Page 31 ® Notes www.odysseybattery.com Publication No: US-ODY-TM-001 - April 2011...
  • Page 32 About EnerSys ® EnerSys is a global leader in stored energy solutions ® for automotive, military, and industrial applications. With manufacturing facilities in 17 countries, sales and service locations throughout the world, and over 100 years of battery experience, EnerSys is a powerful partner for automotive service and parts providers.
