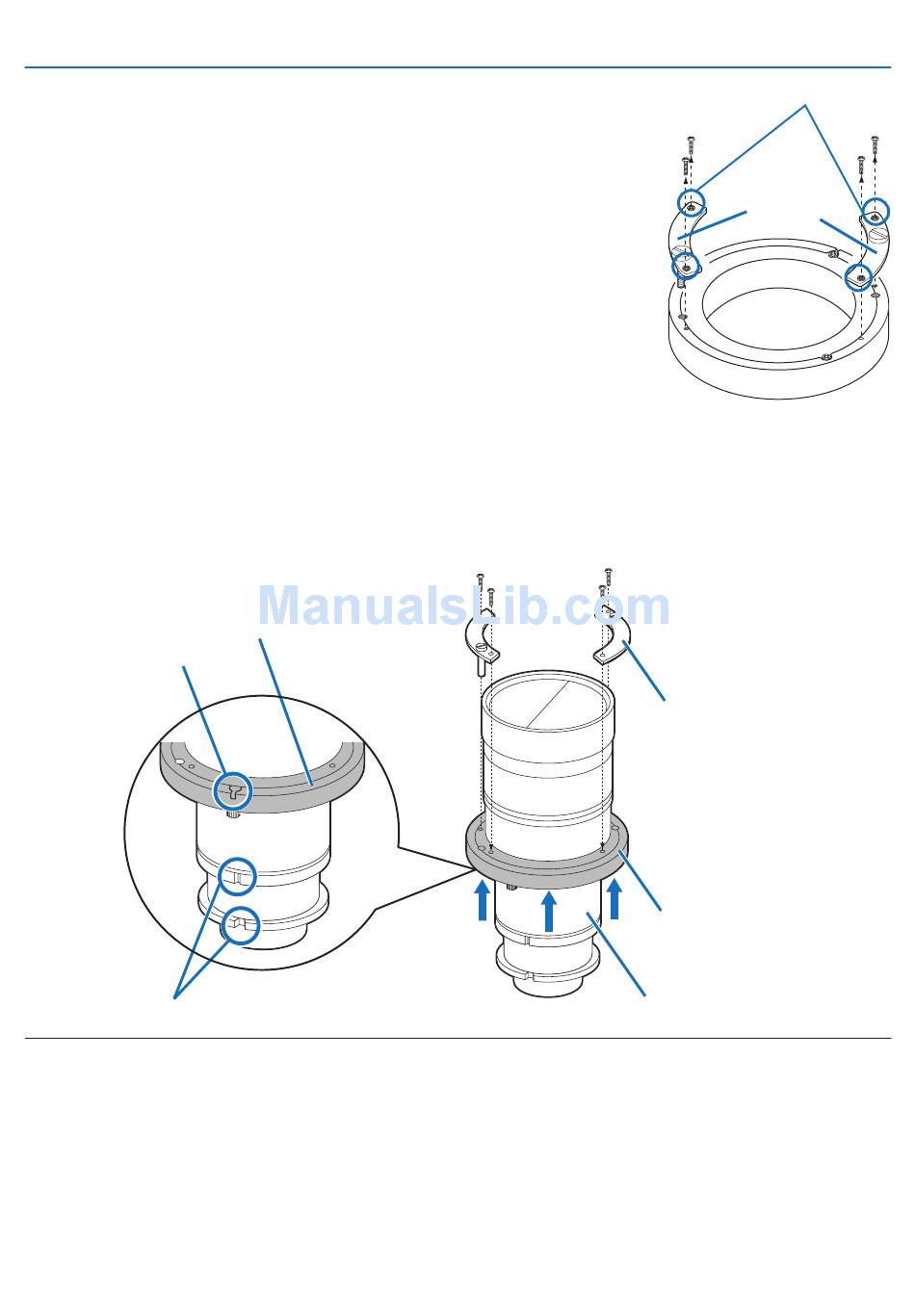

1. Remove two mounting metals of the lens holder.
Remove four mounting screws and remove two mounting
metals.
These four mounting screws and two mounting metals will be
used for lens holder mounting.
2. Place the lens with the face upward.
Check that the place for putting the lens is flat before the work.
It is recommended to keep the lens cap set so as to protect the lens from any damage.
3. Insert the lens holder from under the lens.
Align the lens holder slits with two lens insertion guides and insert the lens holder.
4. Fix two mounting metals of the lens holder with four mounting screws.
Slit
Lens insertion guides
Lens holder
3. Setting Up Your Projector
65
Mounting screws
Mounting
metals
Lens holder
mounting metal
Lens holder
Lens
