Magtek Excella Quick Installation Manual page 2

Operation
PREPARING THE CHECKS
When you have a deck of checks that needs to be processed, prepare the checks as described below:
1. Grab the entire deck of checks and lightly tap the bottom of the deck against a flat surface with the objective of
aligning the bottom edge of all the checks in the deck.
2. Also, grab the entire deck of checks and lightly tap with your hand the right edge of the deck with the objective of
aligning the leading edge of all the checks in the deck.
FEEDING CHECKS AUTOMATICALLY
The Input Hopper can hold up to 70 checks. To feed a deck of checks, proceed as follows:

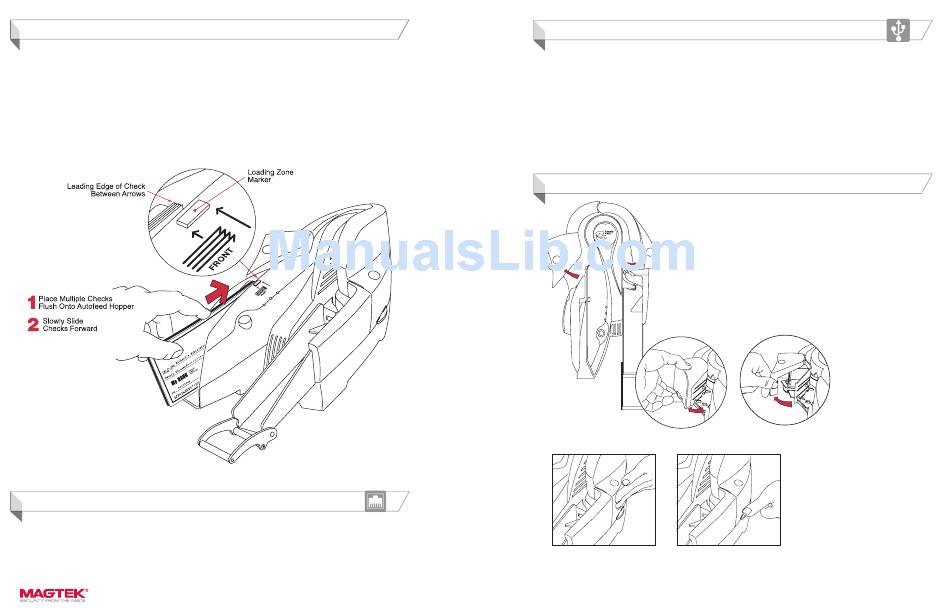

1. Stack the checks in the Input Hopper as shown in Figure 1.
2. Slide the deck forward to the Loading Zone Marker so that all leading edges are between the arrows as shown in
Figure 1.
Ethernet Connection
Excella is a web appliance and it offers several functions and features in a built-in Web page accessible through a Web browser. For
example, if Excella's default Ethernet device IP address is 192.168.10.100, type the "http://192.168.10.100" in your web browser to access
Excella's web page.
On the main menu, the Configuration page offer options to setup the Network and Ethernet configurations. Additionally, an option is
provided to save and restore device configurations.
Figure 1. Stacking Checks in Input Hopper
USB Connection
The following is a summary of the installation steps for Excella with a USB interface:
1.
Ensure the API/Demo CD is inserted in the drive.
2.
When the PC detects the new USB device, follow the instruction wizard instructions.
3.
When prompted, point to the CD as the source for the drivers.
4.
After the drivers have been successfully installed, run the "ExcellaUSBConfig" utility. On the PC, this utility can be found on the folder:
C:\Program Files\MagTek\Excella Demo.
5.
For "Excella Device" select the USB Device ID shown. For example, the default USB ID is "USB\VID_0801&PID_2230\123".
6.
For "Excella Device(s) in MICRDEV.INI file", choose the default "EXCELLA_USB".
7.
For "IP Address(PC Side)", use the default address or enter a new address like 192.168.x.y (NOTE: "x" and "y" are numbers between
2-254; pick "x" to avoid IP address conflicts).
8.
For "IP Address (Device Side), use the default address or enter a new address like 192.168.x.z. (NOTE: "x" and "z" are numbers
between 2-254; "x" must be the same as in step 7; "z" must be different than "y" in step 7).
9.
For "Subnet Mask", enter a new Subnet Mask or use the default: 255.255.255.0.
10.
Click on "Apply".
11.
Click on "OK" and close the utility.
Opening and Closing the Unit
OPENING THE UNIT
The Left Access Door, the Right Access Door and the Printer/Cartridge Cover, shown in
Figure 2, can be opened to provide access to the check path and both scan bars. Open
the unit as described as follows:
•
Open the Left Access Door by placing the thumb on the Indent and the finger(s) on
the Tab as shown in Figure 2 and squeezing, and then gently pull the Door open.
•
Open the Right Access Door, in the same manner, by placing the thumb on the
Indent and the finger(s) on the tab, and squeezing and then gently pull the guide
open.
•
Open the Printer/Cartridge Cover by pulling the Cover from the Left Door as shown
in Figure 3.
Figure 2. Opening the Left and Right Access Doors
Figure 4. Closing the Unit
Figure 3. Separating the Printer
Cover from the Left Access Door
CLOSING THE UNIT
If the Left Access Door or the Right Access Door has
been opened, close the access door as described
below:
•
Push to close the access door (Left or Right) to its
normal operating position (as show in Figure 4).
•
If the Printer/Cartridge Cover is open on the Left
Access Door, first close the printer cover and
then close the access door as described in step
1 above.
•
Push down on the tab of the access door (as
shown in Figure 4) If the tab was not latched,
a "click" sound will be heard as feedback to
indicate the access guide is securely closed.
•
The LED indicator will flash if the access door is
improperly closed (see Table 1).
