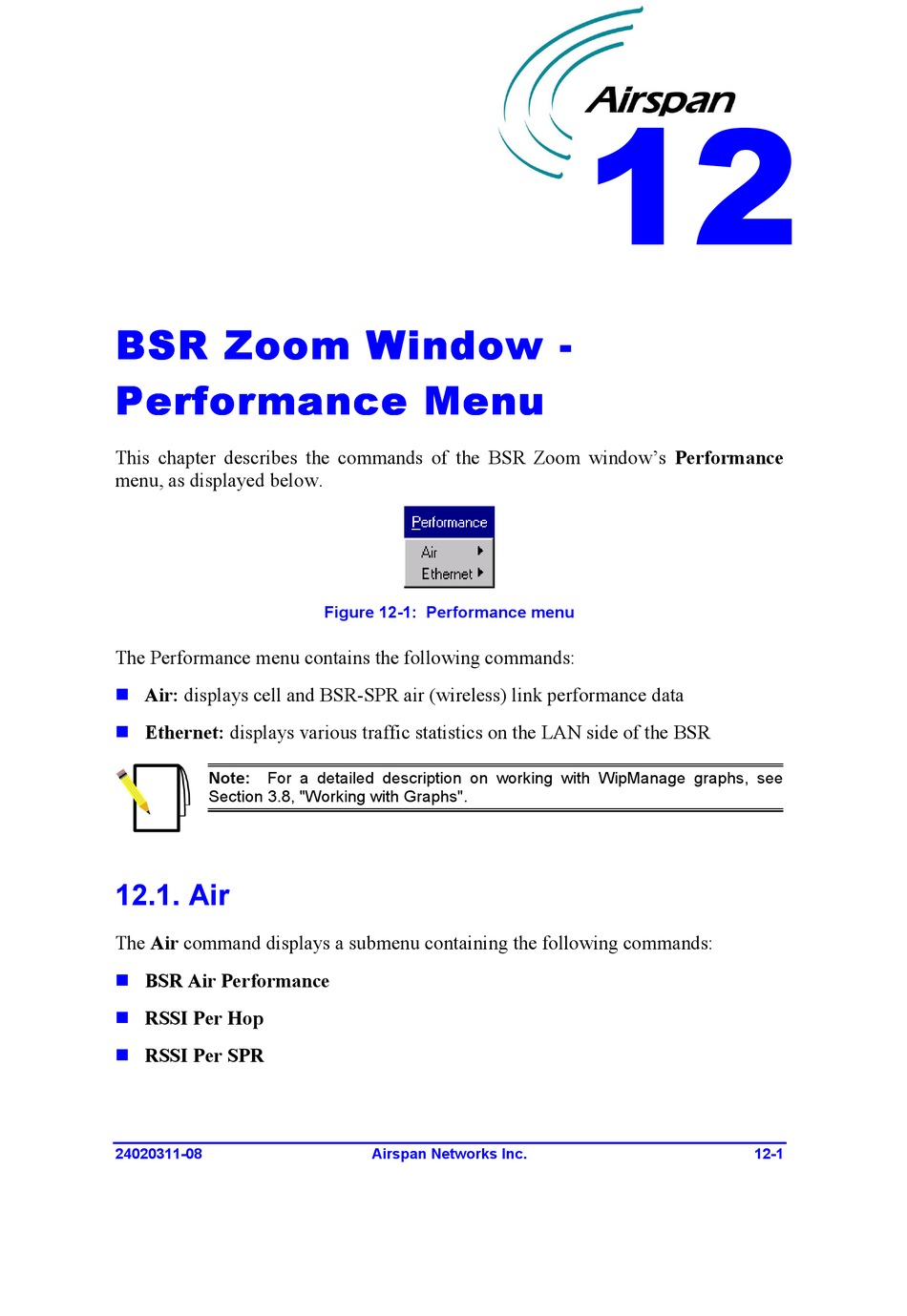

This chapter describes the commands of the BSR Zoom window's Performance
menu, as displayed below.
The Performance menu contains the following commands:
! Air: displays cell and BSR-SPR air (wireless) link performance data
! Ethernet: displays various traffic statistics on the LAN side of the BSR
Note: For a detailed description on working with WipManage graphs, see
Section 3.8, "Working with Graphs".

12.1. Air

The Air command displays a submenu containing the following commands:
! BSR Air Performance
! RSSI Per Hop
! RSSI Per SPR
