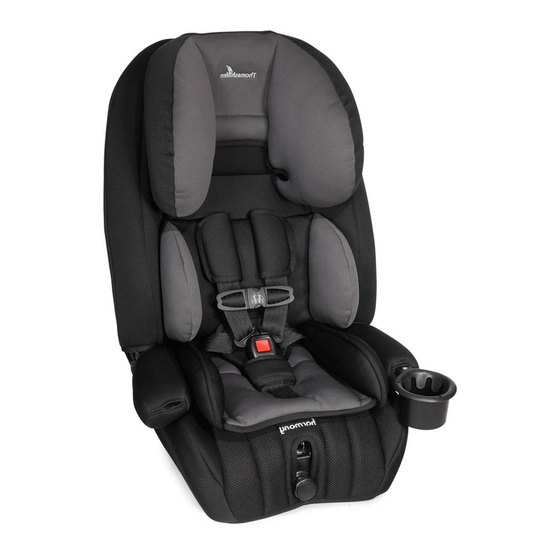

Harmony Defender Reha
2-in-1 CarSeat
ONLY for children who meet following requirements:
HARNESS MODE:
Weight: 22 - 65 lbs / 10 - 29.5 kg and height: 27 - 57 in / 68.6 - 144.8 cm
BOOSTER MODE:
Weight: 30 - 110 lbs / 13.6 - 50 kg and height: 34 - 57 in / 86.4 - 144.8 cm
Instructions for assembly and use
of the Reha version (supplement) ..............................
8
Advertisement
Table of Contents
Related Manuals for Thomashilfen Harmony Defender Reha
Summary of Contents for Thomashilfen Harmony Defender Reha
- Page 1 US Version Harmony Defender Reha 2-in-1 CarSeat ONLY for children who meet following requirements: HARNESS MODE: Weight: 22 - 65 lbs / 10 - 29.5 kg and height: 27 - 57 in / 68.6 - 144.8 cm BOOSTER MODE: Weight: 30 - 110 lbs / 13.6 - 50 kg and height: 34 - 57 in / 86.4 - 144.8 cm Instructions for assembly and use of the Reha version (supplement) ......
- Page 2 Harmony Defender Reha – US Version – 2-in-1 CarSeat (1a) (1b) (2a) (2b)
- Page 3 Harmony Defender Reha – US Version – 2-in-1 CarSeat (3a) (3b) (4a) (5a) (5b)
- Page 4 Harmony Defender Reha – US Version – 2-in-1 CarSeat (6a) (6b) (7a) (7b) (7c) (7d)
- Page 5 Harmony Defender Reha – US Version – 2-in-1 CarSeat (8a) (9a) (9b) (9c) (9d)
- Page 6 Harmony Defender Reha – US Version – 2-in-1 CarSeat (10a) (10b) (10c) (11a) (11b)
- Page 7 Harmony Defender Reha – US Version – 2-in-1 CarSeat (11c) (12a) (12b) (12c) (12d)
-
Page 8: General Instructions
Harmony Defender Reha – US Version – 2-in-1 CarSeat (supplement) Dear Defender Reha user, To make handling of your new children car seat safe, practical, and comfortable for both you and your child, please read these instructions and the instructions enclosed to the seat before use. -
Page 9: Purpose / Indication
Harmony Defender Reha – US Version – 2-in-1 CarSeat (supplement) Booster Mode ONLY ONLY use Defender Reha in Booster Mode with children who meet following requi- rements: • Weight 30 - 110 lbs / 13.6 - 50 kg and Height 34 - 57 in / 86.4 - 144.8 cm... -
Page 10: Warranty
The warranty and remedies as set forth above are exclusive and in lieu of all others, oral or written, express or implied. In no event will Thomashilfen or the retailer sel- ling this product be liable to you for any damages, including incidental or consequen- tial damages, or loss of use arising out of the use or inability to use this product. - Page 11 Harmony Defender Reha – US Version – 2-in-1 CarSeat (supplement) STAND THE INSTRUCTIONS IN THIS MANUAL AND IN YOUR VEHICLE OW- NER’S MANUAL. • DO NOT tamper with or modify the child restraint, including the buckles, harness system or UAS, for anyreason.
-
Page 12: General Information
Harmony Defender Reha – US Version – 2-in-1 CarSeat (supplement) General information • To ensure proper child restraint use, keep and store this instruction manual and refer to it when necessary. (Fig. A) • For children over 18.1 kg (40 lbs) requiring more harness length, remove black EPP pad under fabric on base of unit. -
Page 13: Technical Data
Harmony Defender Reha – US Version – 2-in-1 CarSeat (supplement) Technical data Seat depth 13.5 in / 33 cm Seat width 8.5 - 12 in / 21.5 - 30.5 cm * Seat to head 23.5 - 30.5 in / 60 - 78 cm ** Shoulder height 10 - 19.5 in / 25 - 49.5 cm **... -
Page 14: Head Support
Harmony Defender Reha – US Version – 2-in-1 CarSeat (supplement) 5-point belt Please note: Booster Mode ONLY: The 5-point positioning belt integrated into the child seat is NOT a safety-relevant item. In this case the child is restrained by the vehicle’s 3-point safety belt. The 5-point belt is only intended for use as a positioning belt to provide additional sup- port for children with a body weight between 30 and 110 lbs / 13.6 and 50 kg and... - Page 15 Harmony Defender Reha – US Version – 2-in-1 CarSeat (supplement) Lateral seat support The Harmony Defender Reha is fitted with a seat reducer. The lateral seat supports are fitted to the seat pad with hook and loop fastener. To increase seat width (21.5 to 30.5 cm / 8.5 to 12 in) just pull off the lateral seat supports from the seat reducer.
- Page 16 Harmony Defender Reha – US Version – 2-in-1 CarSeat – Accessories Footrest adapter (accessory) item code: 821/2 First pull off the 2 rubbers underneath the seat shell (Fig. 9a). To be able to connect the Defender Reha with the footrest adapter, you must first mount the adapter plate to the seat.
- Page 17 Harmony Defender Reha – US Version – 2-in-1 CarSeat – Accessories the connectors have locked into place safely by pulling. Now fit the LATCH connec- tor into the footrest adapter ‘s rear support (the plate is rounded at this point) with the released locking screw.
- Page 18 Harmony Defender Reha – US Version – 2-in-1 CarSeat – Accessories footrest tubes allow the footrest to be adjusted to match the depth of the vehicle’s seat. To stabilize the footrest on the vehicle floor adjust the height of the support bars by screwing them in or out until they have contact with the vehicle.
- Page 19 Harmony Defender Reha – US Version – 2-in-1 CarSeat – Accessories NOTE: For reasons of space the large crotch pad (item code 832) should be removed when using the table. The cover is removable (zipper) and can be maschine washed at up to 30 °C / 86 °F.
- Page 20 Member of the International Support Association for the Rehabilitation of Children and Youths e.V. Thomashilfen North America (ExoMotion, LLC) · 7936 Occidental Ave S · Seattle WA 98108 · USA Phone: 886.870.2122 (toll free) · Fax: 866.870.0801 (toll free) · www.thomashilfen.us...
