Instruction Manual

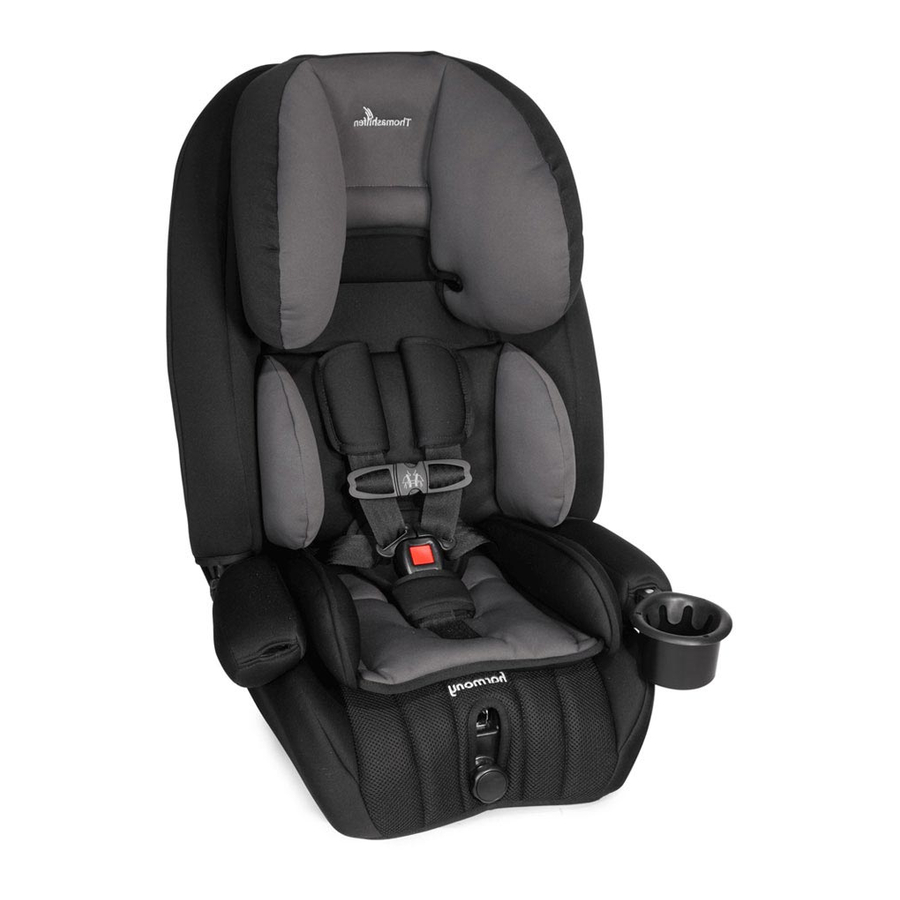

Defender Reha „crotch strap extension"
(item no. 514)
WARNING!
Only use Defender Reha „crotch strap
extension" (item no. 514) in Booster
Mode.
Read instructions for proper installation
carefully.
You MUST always use vehicle 3-point lap-
and-shoulder belt when restraining the
child in Booster Mode. The integrated
harness system is only for positioning
children with special needs.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Thomashilfen Defender Reha
Summary of Contents for Thomashilfen Defender Reha
- Page 1 Instruction Manual Defender Reha „crotch strap extension“ (item no. 514) WARNING! Only use Defender Reha „crotch strap extension“ (item no. 514) in Booster Mode. Read instructions for proper installation carefully. You MUST always use vehicle 3-point lap- and-shoulder belt when restraining the child in Booster Mode.
- Page 2 Preparations for Defender car seat 886 US or 888 CAN only a. Convert Defender car seat 886 US or 888 CAN to Booster Mode Cut off top tether as shown in picture below. Install crotch strap extension a. Remove base plate while unscrew 4 phillips screws...
- Page 3 b. Access to standard crotch strap To get easier access to this space press and hold harness adjustment button and pull strap. c. Uninstall standard crotch strap Cut off harness buckle from standard crotch strap. Harness buckle will be re-installed to crotch strap extension later. Then pull out metal locking plate with crotch strap.
- Page 4 d. Install new crotch strap extension (item no. 514) First take off end cap from extension. Following parts you need now: Guide strap through belt buckle from behind Now guide strap through lock buckle strap adjuster Now attach end cap to crotch strap. Guide strap through slit 1 then coming from back through slit 2.
- Page 5 Before installing please make sure crotch strap extension with belt buckle is assembled correctly. Guide belt buckle facing forward through big slot from underneath seat.
- Page 6 Pull off protection from adhesive surface of hook and loop fastener. Position metal locking plate as far as possible to the front of slot. Then press down metal locking plate so adhesive surface will glue to seat shell. e. Re-install base plate with 4 phillips screws.
- Page 7 Length adjustments Adjust strap through lock buckle strap adjuster. Should you have further questions or problems, please contact your specialist dealer or us directly. Our address: Thomashilfen North America 7936 Occidental Ave S Seattle WA 98108 Phone: 886-870-2122 email: info@thomashilfen.com...
