FLIR T4 series Quick Start Manual

Introduction
The FLIR T440 is a camera that offers good
performance at an affordable price. Excellent
ergonomics, a walk-up-and-use interface, and easy
communication make the FLIR T440 a truly user-
friendly camera for the beginner or advanced user.
Features
Excellent ergonomics: The FLIR T440 has a tiltable
infrared unit and auto-orientation, which make it
easy to capture images from any angle comfortably.
The small size and low weight of the camera facilitate
its use over a full working day.
Affordable performance: The FLIR T440 is equipped
with the innovative Multi Spectral Dynamic Imaging
(MSX) feature, which produces an image richer in
detail than ever before. You can highlight objects of
interest, on both the infrared and the visual images,
by sketching or adding predefined stamps directly
onto the camera's touch screen.
Case Contents
• Infrared camera with lens
• Battery (2 ea.)
• Battery charger
• Bluetooth headset
• Lens cap
• FLIR Tools+ (license only)2
• Hard transport case
• IR lens, f = 10 mm, 45°2
• Memory card
• Neck strap
• Power supply, incl. multi-plugs
• Printed documentation
• Sunshield
• USB cable, Std A to Mini-B
• Video cableCase Contents
View from the rear
1. Touch-screen LCD.
2. Antenna for wireless communication.
3. Digital zoom button.
4. Programmable button.
5. Joystick with push-button functionality.
6. Back button.
7. Camera lamp button.
8. Button to switch between automatic and manual
image adjustment mode.
9. Image archive button.
10. On/off button.
11. Hand strap.

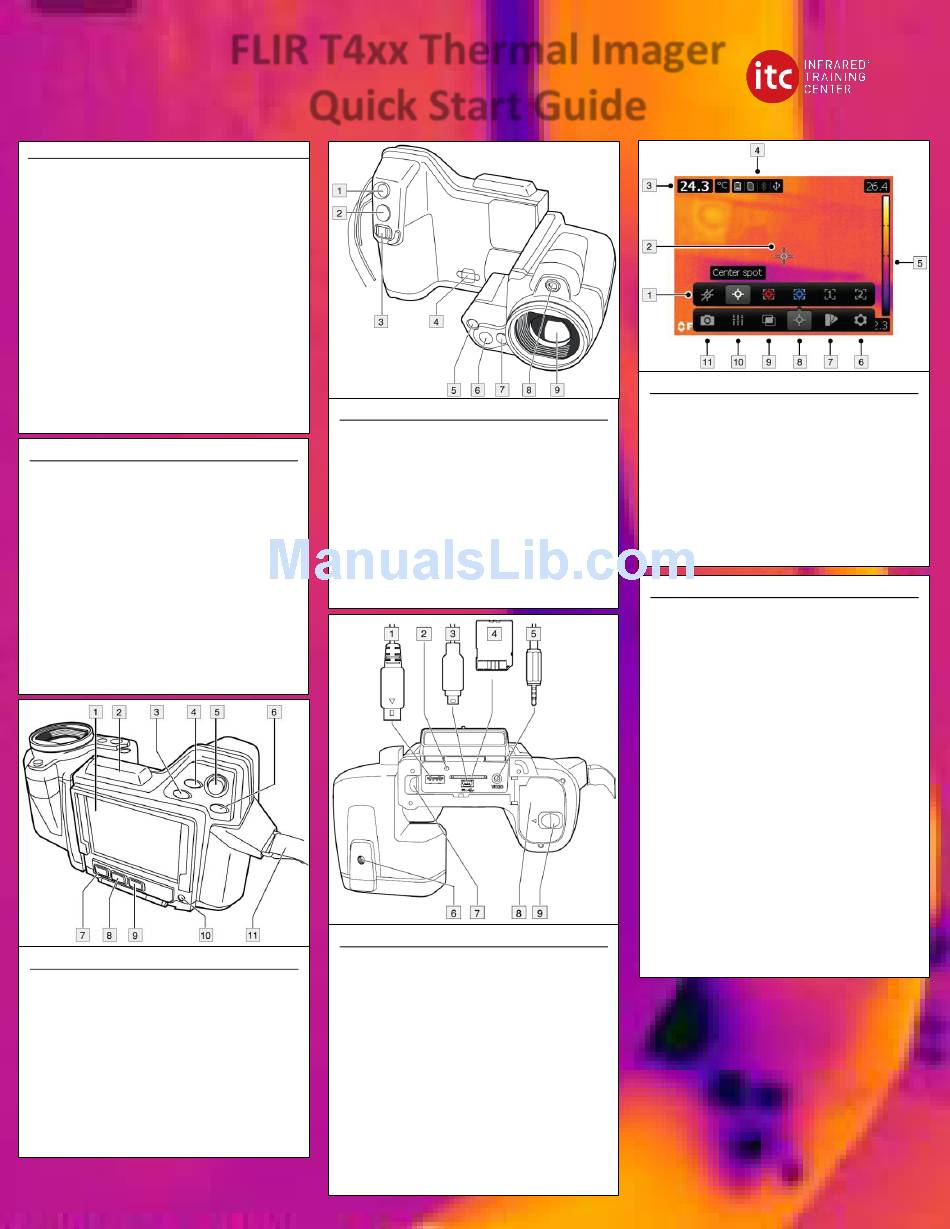

FLIR T4xx Thermal Imager

Quick Start Guide

Camera Features (front)
1. Laser pointer button. Push to activate the laser
pointer.
2. Autofocus/save button.
3. Focus button. Move left/right to focus the camera.
4. Attachment point for the neck strap.
5. Camera lamp.
6. Digital camera.
7. Release button for additional infrared lenses.
8. Laser pointer.
Note The laser pointer may not be enabled in all
markets.
9. Infrared lens.
View from the bottom
1. USB-A cable (to connect an external USB device to
the camera).
2. Indicator showing that the memory card is busy.
Note
• Do not eject the memory card when this LED is
flashing.
• Do not connect the camera to a computer when
this LED is flashing.
3. USB Mini-B cable (to connect the camera to a
computer).
4. Memory card.
5. Video cable (composite video).
6. Tripod mount 1/4"-20.
7. Latch for the cover to the connector bay.
8. Battery compartment cover.
9. Latch for the battery compartment cover.
Screen elements
1. Measurement toolbar.
2. Measurement tool (e.g., spotmeter).
3. Result table.
4. Status icons.
5. Temperature scale.
6. Settings toolbar button.
7. Color toolbar button.
8. Measurement toolbar button.
9. Image mode toolbar button.
10. Measurement parameters toolbar button.
11. Recording mode toolbar button.
Quick Start Guide
1. Put a battery into the battery compartment.
2. Charge the battery for 4 hours before starting the
camera for the first time.
3. Insert a memory card into the card slot.
4. Push the On/off button to turn on the camera.
5. Aim the camera toward the object of interest.
6. Adjust the focus.
Note: It is very important to adjust the focus
correctly. Incorrect focus adjustment affects
how the image modes work. It also affects the
temperature measurement.
7. Push the Autofocus/save button fully down to
save an image.
8. Go to http://support.flir.com/tools and download
FLIR Tools.
9. Install FLIR Tools on your computer.
10. Start FLIR Tools.
11. Connect the camera to the computer using a USB
cable.
12. Import the images into FLIR Tools.
13. Select one or more images.
14. Click Generate report.
15. Click Export to export the report as a PDF file.
16. Send the PDF report to your client.
