Features - BeachTek DXA-MICRO PRO+ Operating Manual

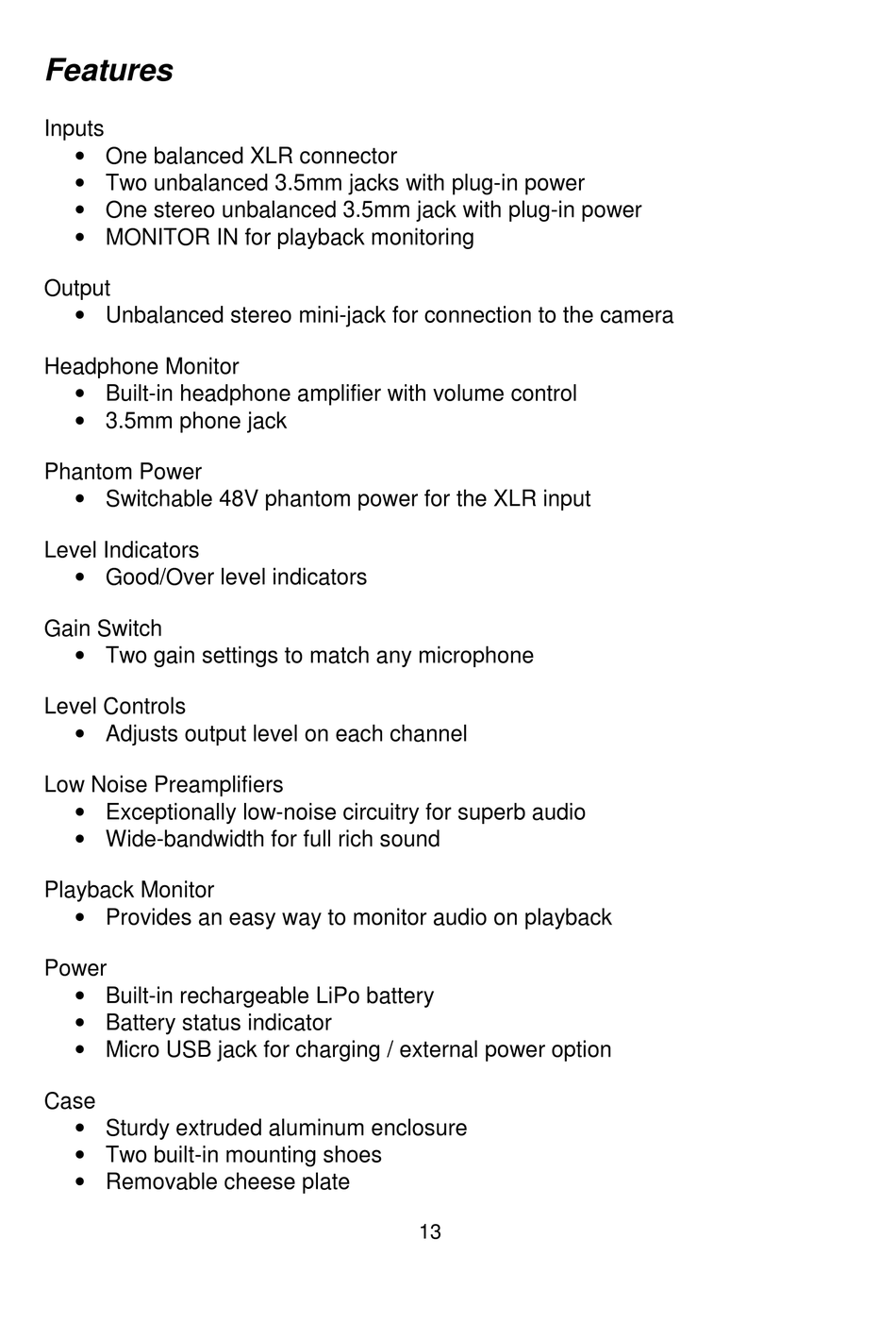

Features

Inputs
 One balanced XLR connector
 Two unbalanced 3.5mm jacks with plug-in power
 One stereo unbalanced 3.5mm jack with plug-in power
 MONITOR IN for playback monitoring
Output
 Unbalanced stereo mini-jack for connection to the camera
Headphone Monitor
 Built-in headphone amplifier with volume control
 3.5mm phone jack
Phantom Power
 Switchable 48V phantom power for the XLR input
Level Indicators
 Good/Over level indicators
Gain Switch
 Two gain settings to match any microphone
Level Controls
 Adjusts output level on each channel
Low Noise Preamplifiers
 Exceptionally low-noise circuitry for superb audio
 Wide-bandwidth for full rich sound
Playback Monitor
 Provides an easy way to monitor audio on playback
Power
 Built-in rechargeable LiPo battery
 Battery status indicator
 Micro USB jack for charging / external power option
Case
 Sturdy extruded aluminum enclosure
 Two built-in mounting shoes
 Removable cheese plate
13
