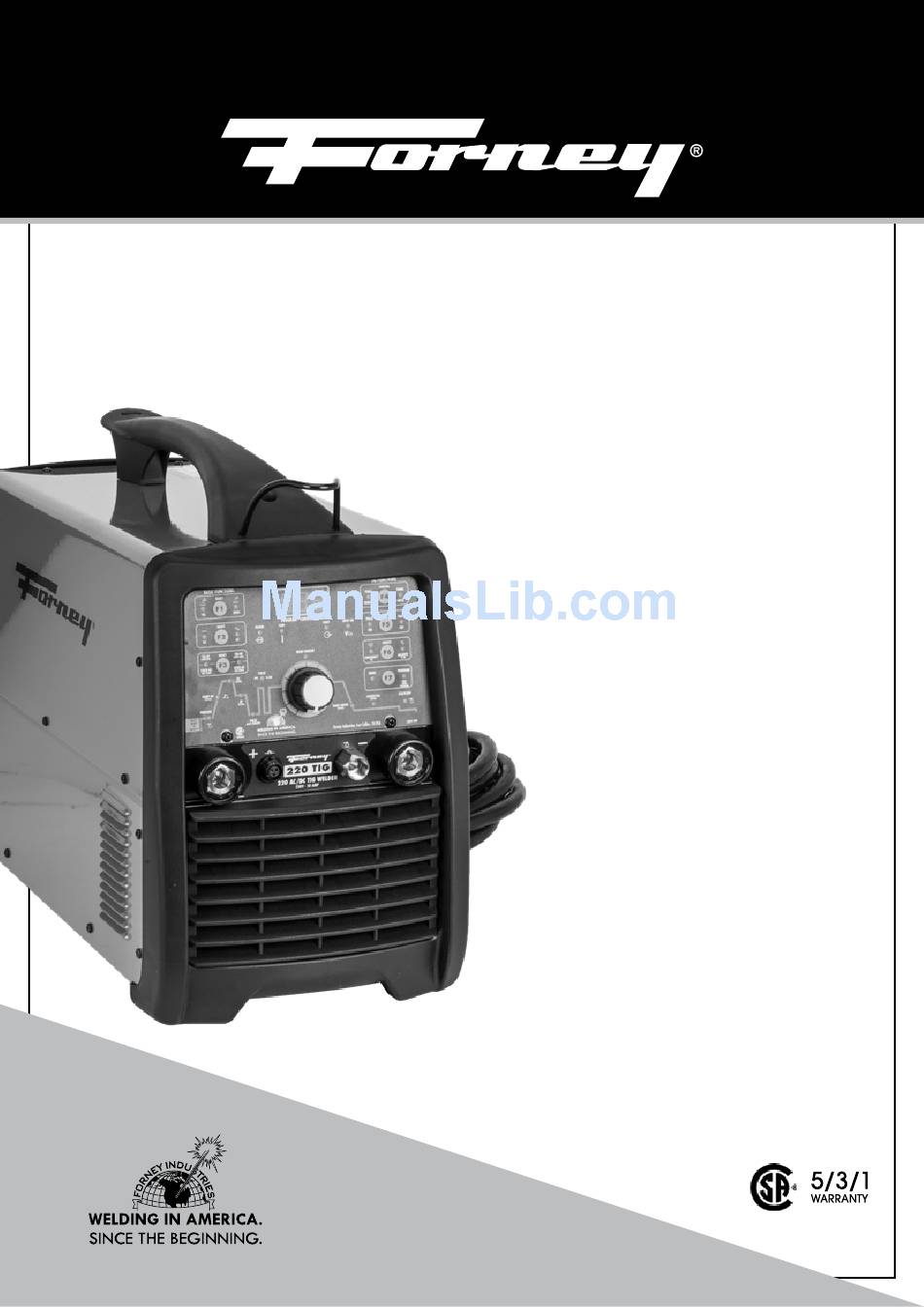

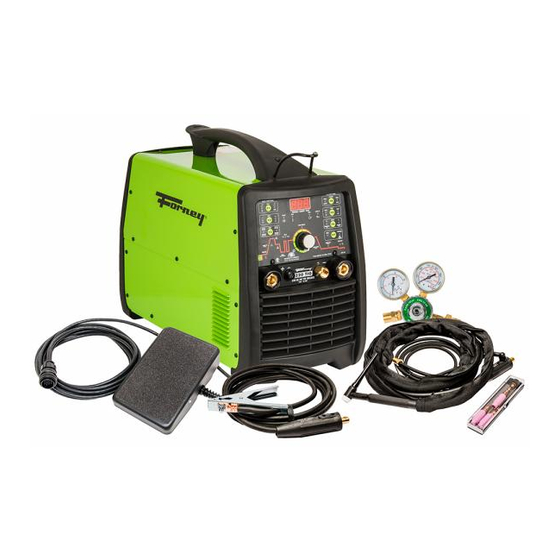

220 TIG AC/DC WELDER
OPERATING MANUAL
FEATURES:
•
•
•
IDEAL FOR:
Automotive, Motorcycles, Stainless and
Aluminum Fabrication or Repair
INCLUDES:
Machine only
WWW.FORNEYIND.COM
230V Input; 200A Output
TIG functions - High Frequency, Pulse (PPS,
% On, Base Current), AC Frequency, AC
Balance, Pre-flow, Post-flow, Crater Fill,
Ramp Up/Down, Foot Pedal or Panel
Control, Lift Arc Capable, 20 Default
Programs, 20 User Defined Programs
Stick functions - Hot Start, Arc Force
CAT# 325
REV 04.14.2017
Advertisement
Table of Contents
Related Manuals for Forney 220 TIG AC/DC
Summary of Contents for Forney 220 TIG AC/DC
- Page 1 220 TIG AC/DC WELDER OPERATING MANUAL FEATURES: • 230V Input; 200A Output • TIG functions - High Frequency, Pulse (PPS, % On, Base Current), AC Frequency, AC Balance, Pre-flow, Post-flow, Crater Fill, Ramp Up/Down, Foot Pedal or Panel Control, Lift Arc Capable, 20 Default Programs, 20 User Defined Programs •...
- Page 3 Above all, our employees will provide the same respect and caring attitude within the organization as they are expected to share with every Forney customer. Our goal will be to exceed our customers’ expectations through empowered people, guided by shared values and commitments.
-
Page 4: Warranty
STOP! PLEASE DO NOT RETURN TO THE STORE If you have questions or problems with your new plasma cutter, please call customer service at 1-800-521-6038 Monday through Friday from 7 a.m. - 5 p.m. (MST) or at www.forneyind.com/about-us/contact-us. Please take time to register your product at www.forneyind.com/support/product-registration. -
Page 5: Safety Summary
BEFORE INSTALLING, OPERATING OR CARRYING OUT MAINTENANCE ON THE MACHINE, READ THE CONTENTS OF THIS MANUAL CAREFULLY, PAYING PARTICULAR ATTENTION TO THE SAFETY RULES AND HAZARDS. In the event of these instructions not being clear, please contact your Forney Authorized Dealer or Forney Customer Service 1-800- 521-6038... -
Page 6: Personal Protection
Personal Protection Welding processes of any kind can be dangerous not only to the operator but to any person situated near the equipment, if safety and operating rules are not strictly observed. THE WELDING ARC PRODUCES VERY BRIGHT ULTRAVIOLET AND INFRARED LIGHT. -
Page 7: Fire Prevention
area. These metals produce extremely toxic fumes which can cause discomfort, illness and death. • Do not weld or cut in areas that are near chlorinated solvents. Vapors from chlori nated hydrocarbons, such as trichloroeth ylene and perchloroethylene, can be decomposed by the heat of an electric arc or its ultraviolet radiation. -
Page 8: High Frequency Radiation
• Check welding area to make sure it is free of sparks, glowing metal or slag, and flames before leaving the welding area. • Wear garments free of oil or other flammable substances such as leather gloves, thick cotton shirts with no synthetic materials, cuffless trousers, closed toed shoes. Keep long hair pulled back. -
Page 9: Noise
• Do not attempt to plug the welder into the power source if the ground prong on power cord plug is bent over, broken off, or missing. • Do not allow the welder to be connected to the power source or attempt to weld if the welder, welding cables, welding site, or welder power cord are exposed to any form of atmospheric precipitation, or salt water spray. -
Page 10: Table Of Contents
Table of Contents WARRANTY ..............................4 SAFETY SUMMARY .............................5 PRINCIPAL SAFETY STANDARDS ......................5 CALIFORNIA PROPOSITION 65 WARNING ....................5 EMF INFORMATION..........................5 PERSONAL PROTECTION ........................6 FIRE PREVENTION ..........................7 HIGH FREQUENCY RADIATION ......................8 ARC WELDING .............................8 ELECTRIC SHOCK ..........................8 NOISE ..............................9 ADDITIONAL SAFETY INFORMATION ....................9 TABLE OF CONTENTS ..........................10 INSTALLATION ............................11 WELDER SPECIFICATIONS ........................11... -
Page 11: Installation
Operation Description The 220 TIG AC/DC single-phase, constant current, inverter welder is designed for portable use on jobs involving maintenance, fabrication, and construction. This versatile arc welding power source allows for a high degree of user adjustability in both Stick and TIG processes. Some highlights of the 220 TIG AC/DC include: •... -
Page 12: Parameter Controls
Parameter Controls BASIC FUNCTIONS TIG FUNCTIONS SELECT CONTROL PEDAL PANEL STICK REMOTE LOCAL PROGRAM - CURRENT - VALUE SELECT SELECT POWER TEMP FAULT INPUT OK PULSE PULSE TIG-HF SELECT TIG-HF ADJUST MAIN CURRENT CONSTANT START ONLY STICK-HS STICK-AF FREQUENCY BALANCE HOT START ARC FORCE % EN... -
Page 13: Function Button Descriptions
Function Button Descriptions FUNCTION SELECTION BASIC FUNCTION ADVANCED FUNCTION DETAILS DESCRIPTIONS • TIG Selects either TIG or STICK welding process BASIC FUNCTIONS TIG FUNCTIONS SELECT CONTROL BASIC FUNCTIONS TIG FUNCTIONS • STICK PEDAL PANEL SELECT CONTROL BASIC FUNCTIONS TIG FUNCTIONS PEDAL PANEL STICK... - Page 14 TIG FUNCTIONS CONTROL PEDAL PANEL REMOTE LOCAL FUNCTION SELECTION BASIC FUNCTION ADVANCED FUNCTION DETAILS GRAM - CURRENT - VALUE SELECT FAULT INPUT OK PULSE PULSE DESCRIPTIONS • FREQUENCY FREQUENCY: BALANCE: ADJUST MAIN CURRENT • BALANCE Normal AC frequency Normal AC frequency FREQUENCY BALANCE from the wall outlet is 60...
-
Page 15: Parameter Setup
Parameter Setup TIP: Start in the top-left corner at F1 and continue down and over through F7 to setup weld parameters. Once parameter is selected, use the dial to fine-tune settings. Pressing F7 steps through parameters; Holding F7 for 3 seconds saves changes made to parameters for User Defined Programs only. TIG DC SETUP TIG AC SETUP STICK SETUP... -
Page 16: Tungsten Recommendations
Tungsten Recommendations TUNGSTEN RECOMMENDATIONS TUNGSTEN TYPE COMMENTS 1.5-2% Lanthanated (La) Most versatile tungsten (best overall) 1.5-2% Ceriated (Ce) Solid performance for most applications 1-2% Thoriated (Th) Performance OK but hazardous Pure OK but will ball up and not allow concentrated Recommended Amperage Settings for SMAW (Arc) Electrodes SIZE OF WELDING ELECTRODE AMPERAGE SETTING... -
Page 17: Default Programs
Default Programs The 220 TIG AC/DC is loaded with 20 Default Programs and 20 User Defined Programs for TIG welding. Default programs S1 through S5 are for welding steel without pulse control. S6 through S10 are for welding stainless steel with pulse control. A1 through A10 are for welding aluminum. User Defined programs are designated as U1 through U20. -
Page 18: Maintenance & Servicing
Maintenance & Servicing General Maintenance Your arc welder is simple and durable, requiring virtually no maintenance other than the guidelines shown below: • Keep the ventilation holes clean to avoid the build-up of dirt inside the machine, this can reduce machine output. -
Page 19: Parts List
85715 INPUT FILTER PCB FOR 220 TIG AC/DC 85716 SWITCHING PCB 220 TIG AC/DC 85717 PRIMARY PCB + HEATSINK ASSEMBLY 220 TIG AC/DC 85718 RELAY/FAN POWER PCB FOR 220 TIG AC/DC 85719 HF POWER OCB FOR 220 TIG AC/DC 84087... -
Page 20: Parts Diagram
Parts Diagram WWW.FORNEYIND.COM... -
Page 21: Wiring Diagram
Wiring Diagram WWW.FORNEYIND.COM... -
Page 22: User Notes
User Notes ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________... - Page 24 Forney Industries, Inc. 2057 Vermont Drive Fort Collins, CO 80525 800-521-6038 www.forneyind.com...
