Page 3: Information About The Documentation
Information about the documentation About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •... - Page 4 The type designation and serial number are printed on the rating plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information Type: HITP 8000 D...
- Page 5 Have damaged parts repaired before using the tool. Many accidents are caused by poorly maintained tools. Service ▶ Have your tool repaired only by a qualified specialist using only genuine Hilti spare parts. The safety of the tool can thus be maintained. General safety instructions ▶...

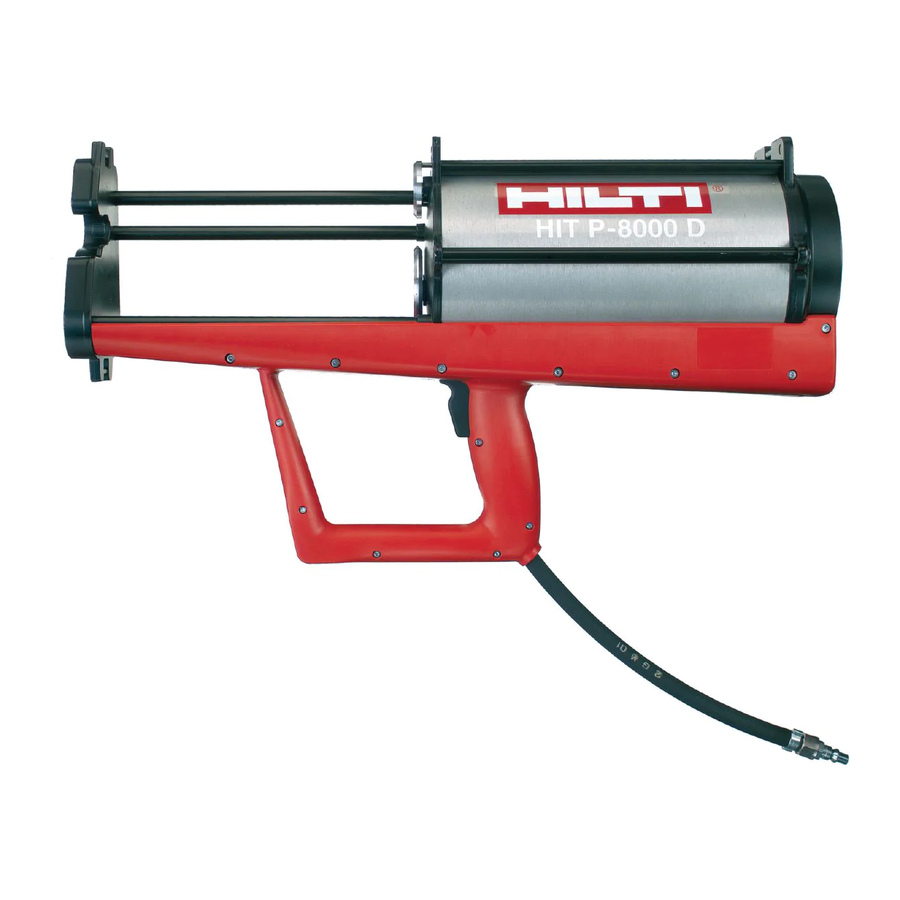

- Page 6 Description Overview Mixing nozzle (static mixer) Foil pack Foil pack holder Cylinder Return button & Piston advance button Compressed air connection English Printed: 18.05.2018 | Doc-Nr: PUB / 5151278 / 000 / 03...
-
Page 7: Technical Data
Compressed air is used to build up the necessary ejection force. Items supplied Dispenser, foil pack holder and operating instructions Other system products approved for use with this product can be found at your local Hilti Store or at: www.hilti.group | USA: www.hilti.com Technical data Weight without mortar and foil pack holder 6.2 kg... - Page 8 1. Remove the cap from the foil pack. 2. Screw the static mixer (mixing nozzle) on to the foil pack. Each new foil pack requires a new mixing nozzle. 3. Push the foil pack into the foil pack holder from the front. Inserting the foil pack holder and foil pack CAUTION Risk of injury Compressed-air hazard.
- Page 9 Setting metered dispensing ▶ Set the metered-dispensing switch to the desired setting. Preparing the tool for use ▶ Press the piston advance button. The amount of mortar to be discarded depends on the type of mortar used. Discard the amount of mortar stated in the instructions for the foil pack.
- Page 10 1. Insert the mixing nozzle into the drillhole until the tip of the nozzle is touching the bottom of the hole. Use an extension if the drillholes to be filled are extra-deep. 2. Press the piston advance button and slowly withdraw the mixing nozzle from the drillhole. Return function CAUTION Risk of injury Compressed-air hazard.
-
Page 11: Manufacturer's Warranty
To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group / www.hilti.com China RoHS (Restriction of Hazardous Substances) Click on the link to go to the table of hazardous substances: qr.hilti.com/r5250. - Page 12 English Printed: 18.05.2018 | Doc-Nr: PUB / 5151278 / 000 / 03...
- Page 13 Printed: 18.05.2018 | Doc-Nr: PUB / 5151278 / 000 / 03...
- Page 14 Printed: 18.05.2018 | Doc-Nr: PUB / 5151278 / 000 / 03...
- Page 15 Printed: 18.05.2018 | Doc-Nr: PUB / 5151278 / 000 / 03...
- Page 16 Hilti = registered trademark of Hilti Corp., Schaan 20180503 Printed: 18.05.2018 | Doc-Nr: PUB / 5151278 / 000 / 03...
