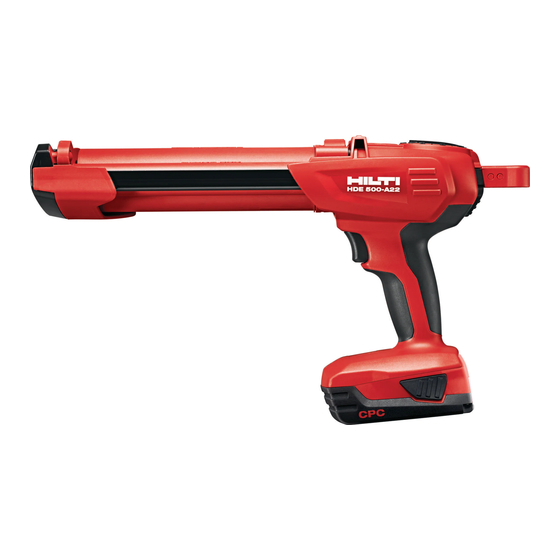

Hilti HDE 500-A22 Operating Instruction
Hide thumbs
Also See for HDE 500-A22:
- Manual (302 pages) ,
- Operating instructions manual (238 pages) ,
- Operating instructions manual (188 pages)
Related Manuals for Hilti HDE 500-A22
Summary of Contents for Hilti HDE 500-A22
- Page 1 HDE 500-A22 English Printed: 13.12.2016 | Doc-Nr: PUB / 5142533 / 000 / 03...
- Page 2 Printed: 13.12.2016 | Doc-Nr: PUB / 5142533 / 000 / 03...
- Page 3 1 Information about the documentation 1.1 About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •...
- Page 4 2 Safety 2.1 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
- Page 5 ▶ If the battery is too hot to touch, it may be defective. In this case, place the power tool in a non-flammable location, well away from flammable materials, where it can be kept under observation and left to cool down. Contact Hilti Service after the battery has cooled down. English...
- Page 6 3 Description 3.1 Overview English Printed: 13.12.2016 | Doc-Nr: PUB / 5142533 / 000 / 03...
- Page 7 3.2 Intended use The tool is designed to dispense the contents of Hilti foil packs in a controlled operation. The HDE 500A22 cordless dispenser is designed exclusively for use with Hilti 330 ml or 500 ml foil packs.
-
Page 8: Operation
HDE 500-A22 Typical A-weighted sound power level (L 78 dB Uncertainty for measured sound power level (L 3 dB Typical A-weighted emission sound pressure level (K 67 dB Uncertainty for the sound pressure level (K 3 dB Total vibration (a 0.5 m/s²... - Page 9 3. Fit the front end of the foil pack holder into the front locating lug. Note Make sure that the HILTI name is not upside down. 4. Snap the foil pack holder into engagement in the rear locating lug. 5. Swivel the foil pack holder into the tool.
- Page 10 1. Turn the static mixer (mixing nozzle) on to the foil pack. 2. Press the release button. 3. Pull the piston rods back as far as they will go. 4. Swivel the foil pack holder up. 5. Push the foil pack into the foil pack holder. 6.
- Page 11 1. Set the dispenser volume regulator switch to 2. Squeeze the trigger until the mixing nozzle is completely full. 3. Set the dispenser volume regulator switch to the appropriate volume of mortar ◁ 1 = 1 stroke (approx. 5 ml) ◁...
- Page 12 5.7 Removing the foil pack 1. Set the dispensing mode selector switch to 2. Press the release button. 3. Pull the piston rods back as far as they will go. 4. Swivel the foil pack holder up. 5. Remove the foil pack. 6.
-
Page 13: Troubleshooting
To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com 6 Troubleshooting 6.1 Troubleshooting... - Page 14 See the “Technical data” section. Electrical fault ▶ Consult Hilti Service if the problem persists. The foil pack holder cannot The foil pack is not pushed fully ▶ Push the foil pack into the foil be swiveled into the tool.
- Page 15 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 16 Printed: 13.12.2016 | Doc-Nr: PUB / 5142533 / 000 / 03...
- Page 17 Printed: 13.12.2016 | Doc-Nr: PUB / 5142533 / 000 / 03...
- Page 18 Hilti = registered trademark of Hilti Corp., Schaan 20161110 Printed: 13.12.2016 | Doc-Nr: PUB / 5142533 / 000 / 03...
