Summary of Contents for Fairford synergy SGY 101

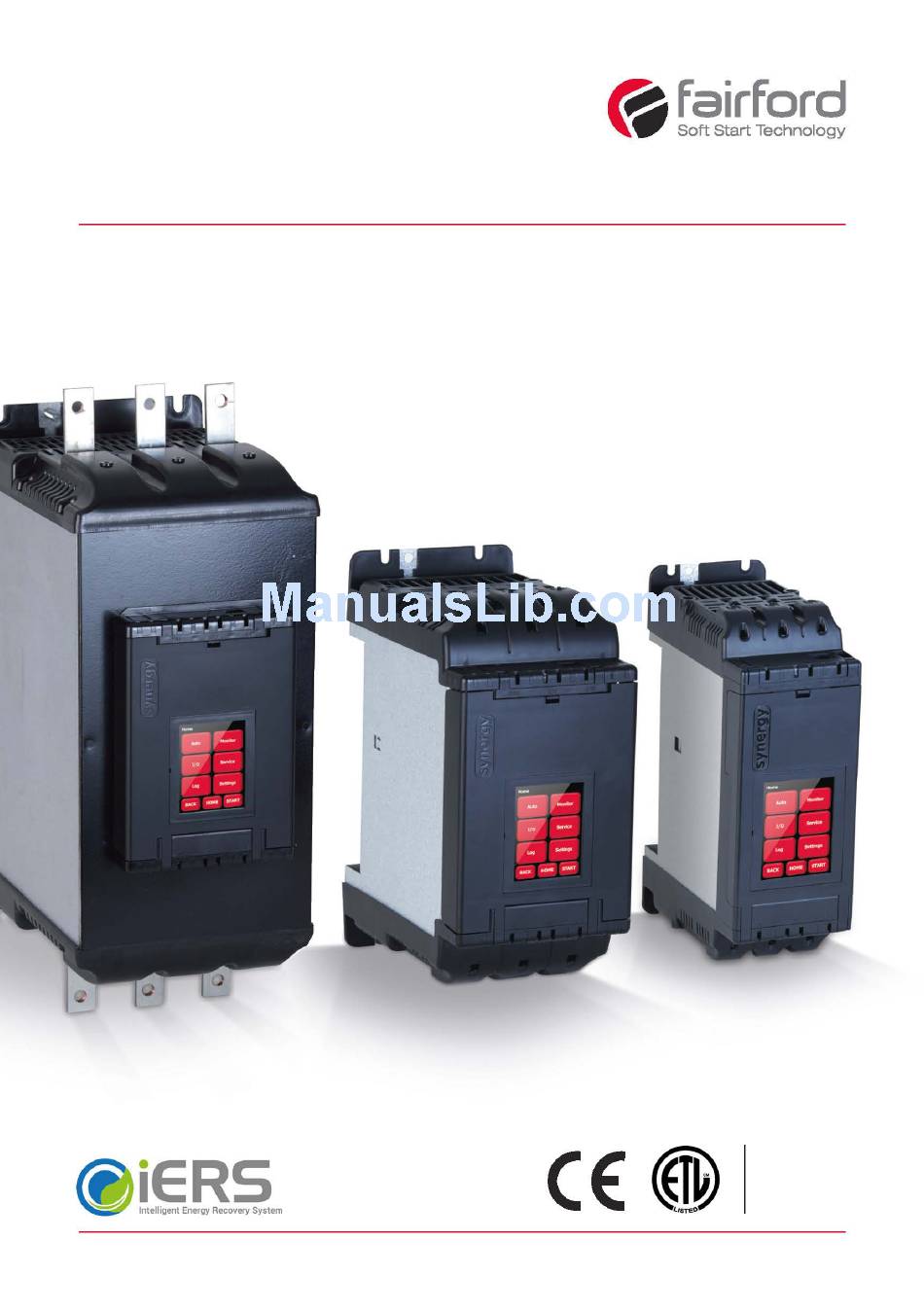

- Page 1 synergy ™ Quick Start Guide CONFORMS TO STD UL 508 CSA 22.2 No. 14...
-
Page 2: Redefining Motor Control
Redefining Motor Control The original pioneers of soft start technology, Fairford Electronics Limited have been at the forefront of motor control innovation since the 1970’s. Fairford have manufactured and supplied over 1 million products into the market place and are recognised as the reference point for many control solution providers worldwide. - Page 3 équipement. Short Circuit Fairford soft starts are not short circuit proof. After severe overload or short circuit, the operation of the soft start should be fully tested by an authorised service agent.
- Page 4 Safety (continued) • Synergy™ soft starts contain dangerous voltages when connected to the mains supply. Only qualified personnel that have been completely trained and authorised, should carry out installation, operation and maintenance of this equipment. ™ • Les démarreurs progressifs Synergy contiennent des tensions dangereuses, lorsqu’ils sont connectés à...
- Page 5 Environment - installation Size 1, SGY-101 to SGY-117. Dimensions Fitting < 30° < 30° < 30° < 30° 25mm 95.2mm (3.75”) 25mm (0.98”) 95.2mm (3.75”) (0.98”) 25mm 25mm 25mm 25mm (0.98”) (0.98”) (0.98”) (0.98”) 177.1mm (6.97”) 60mm 60mm 177.1mm (6.97”) (2.375”) (2.375”) SGY-101 to SGY-105 lower fan only...
- Page 6 Environment - installation Size 3, SGY - 301 to SGY - 305 Dimensions Fitting < 30° < 30° < 30° < 30° 60mm (2.36") 205mm (8.07") 164mm (6.45") 25mm (0.98") 60mm (2.36") 310mm (12.20") 160mm (6.29") Weight = 16.00 kg (35.27lbs) Air Flow Size 3, SGY - 307 &...
- Page 7 Environment - installation Enclosure Ventilation When fitting synergy™ into a cabinet, ventilation must be provided if the heat output of the unit is greater than the cabinet will dissipate. Use the following formula to determine the fan requirement. An allowance has been incorporated into the formula so that the figure for Q is the air delivery in the fan suppliers data.
-
Page 8: Wiring Connection
Wiring connection... - Page 9 Wiring connection In Line In Delta K1 - Main contactor and Note: Circuit breaker isolation protection switch gear alone is not allowed for In Delta K1 - Main contactor or (provided by the customer) operation. K1 (Main contactor) circuit breaker isolation controlled by the Running relay and protection switch gear MUST be used for isolation.
- Page 10 Wiring connection 3 Wire Control Diagram 3 wire Control Diagram 24Vdc control supply (U 110/230Vac control supply (U and digital input (U ) programming (only and digital input (U ) programming. applicable for SGY-101 to SGY-305). Digital input 24Vdc 110/230Vac programming D1 - 1I = Start D1 - 2I = Stop...
- Page 11 Soft start motor reversing circuit Below is a soft start reversing circuit without soft stop, it shows the main components required. You must follow your local wiring and electrical regulations when constructing this circuit, set to ‘User Programmable’ control. Control supply 110/230Vac or 24Vdc Protection switch depending on application Emergency stop...
- Page 12 Control Supply Control S Sequential Soft Start diagram 3 phase Supply 110Vac, 230Vac 3 phase Supply 110Vac, 230Vac or 24Vdc or 24Vdc Control Supply Control Supply After emergency After emergency stop button L or 24Vdc D1-1I stop button L or 24Vdc D1-1I D1COM N or 0Vdc...
- Page 13 Programming Setup Wizard Please note; Only appears if application with a trip class higher than 10 is selected...
-
Page 14: Rating Table
Rating table Control IEC, I e UL, FLA supply Type 220- 440- 200V 208V 230V 400V 480V 240V SGY-101-4-01 SGY-103-4-01 SGY-105-4-01 SGY-107-4-01 18.5 SGY-109-4-01 SGY-111-4-01 24Vdc SGY-113-4-01 18.5 SGY-115-4-01 110Vac SGY-117-4-01 230Vac SGY-201-4-01 SGY-203-4-01 SGY-205-4-01 SGY-301-4-01 SGY-303-4-01 SGY-305-4-01 SGY-307-4-02 110Vac SGY-309-4-02 SGY-307-4-03 230Vac... -
Page 15: Technical Information
Technical information Motor overload 'cold' trip curves (20°C ambient) 1000 100 10 1 1 1.5 2 2.5 3 3.5 4 4.5 Multiple of Motor FLA Class10 Class20 Class30 ... - Page 16 Technical information/Standards Rated operational voltages 200Vac to 480Vac Rated operational current See Rating table SGY-101 to SGY-205 Ie: AC-53a: 3.5-17: 90-5 Rating index SGY-301 to SGY-309 Ie: AC-53a: 3.5-17: 90-3 Rated frequency 50 to 60Hz Rated duty Uninterrupted Form designation Form 1 Internally bypassed Rated insulation voltage 480V...
- Page 17 Standards -20°C (-4°F) to 50°C (122°F). Above 50°C de-rate linearly by 4% of synergy™ Ie per °C to a maximum of 60°C (140°F). Altitude above sea level 1000m (3281ft). Above 1000m de rate by 1% of synergy™ Ie per 100m (328ft) to a maximum altitude of 2000m (6562ft). Please note for higher temperatures and altitudes contact your supplier.
- Page 18 Standards Short Circuit protection (continued). Type designation (e.g. SGY-201) Rated operational currents Rated conditional short circuit current Class J time-delay Maximum fuse #1 rating Z UL Listed inverse-time delay- Maximum 1000 1000 1000 circuit breaker #1 rating Z Mersen 6,9 URD 31__ Mersen 6,9 URD 33__ Bussmann 170M40__ Bussmann 170M60__...
- Page 19 Notes...
- Page 20 Livsfara genom elektrisk ström! Toate lucrările descrise trebuie efectuate numai de personal de specialitate calificat şi Endast utbildade elektriker och personer som undervisats i elektroteknik får utföra de arbeten de persoane cu cunoştiinţe profunde în electrotehnică. som beskrivs nedan. info@fairford.com www.fairfordsoftstart.com...
