Mitsubishi FX-30P Installation Manual

JY997D34201G
Side
JAPANESE
A
Side
ENGLISH
B
FX-30P
INSTALLATION MANUAL
Manual Number JY997D34201
Revision G
Date August 2017
This manual describes the part names, dimensions, and specifications of the
product. Before use, read this manual and manuals of relevant products fully to
acquire proficiency in handling and operating the product. Make sure to learn all
the product information, safety information, and precautions.
Store this manual in a safe place so that it can be taken out and read whenever
necessary. Always forward it to the end user.
Registration:
The company name and the product name to be described in this manual are the
registered trademarks or trademarks of each company.
Effective August 2017
Specifications are subject to change without notice.
©
2008 Mitsubishi Electric Corporation
Safety Precautions
(Read these precautions before use.)
This manual classifies the safety precautions into two categories:
and .
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or slight personal injury
or physical damage.
Depending on the circumstances, procedures indicated by
also cause severe injury.
It is important to follow all precautions for personal safety.
Associated Manuals
Manual name Manual No. Description
FX Series JY997D16501 Explains the FX Series PLC
3U 3U
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R516 installation, and maintenance.
FX 3UC Series JY997D28701 Explains the FX 3UC Series PLC
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R519 installation, and maintenance.
FX Series JY997D31301 Explains the FX Series PLC
3G 3G
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R521 installation, and maintenance.
FX Series JY997D45401 Explains the FX Series PLC
3GC 3GC
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R533 installation, and maintenance.
FX 3S Series JY997D48601 Explains the FX 3S Series PLC
User's Manual MODEL CODE: specifications for I/O, wiring,
- Hardware Edition 09R535 installation, and maintenance.
This manual contains hardware
JY992D66301
FX e x p l a n a t i o n s f o r
2N
MODEL CODE:
HARDWARE MANUAL installation and specification for
09R508
FX series PLC
2N
This manual contains hardware
FX (D/UL) e x p l a n a t i o n s f o r
2NC
JY992D87201
HARDWARE MANUAL installation and specification for
FX (D/UL) series PLC
2NC
This manual contains hardware
JY992D76401
FX 2NC (DSS/DS) e x p l a n a t i o n s f o r
MODEL CODE:
HARDWARE MANUAL installation and specification for
09R509
FX 2NC (DSS/DS) series PLC
Side
B
Manual name Manual No.
This manual contains hardware
JY992D89301
FX 1N e x p l a n a t i o n s
MODEL CODE:
HARDWARE MANUAL installation and specification for
09R511
FX series PLC
1N
This manual contains hardware
JY992D83901
FX e x p l a n a t i o n s
1S
MODEL CODE:
HARDWARE MANUAL installation and specification for
09R510
FX series PLC
1S
This manual contains hardware
FX 0 /FX 0N e x p l a n a t i o n s
JY992D47501
HARDWARE MANUAL installation and specification for
FX 0 /FX
This manual contains hardware
FX e x p l a n a t i o n s
0S
JY992D55301
HARDWARE MANUAL installation and specification for
FX series PLC
0S
This manual contains hardware
FX-SERIES e x p l a n a t i o n s
JY992D47401
HARDWARE MANUAL installation and specification for
FX series PLC
FX 0 /FX 0S /FX 0N /FX/FX 2C /
This manual contains instruction
F X 2 N / F X 2 N C
JY992D48301 explanations for the FX series
P R O G R A M M I N G
PLC
MANUAL
FX /FX /FX /FX JY992D88101 This manual contains instruction
1S 1N 2N 2NC
P R O G R A M M I N G MODEL CODE: explanations for the FX series
MANUAL ΙΙ 09R512 PLC
FX /FX /FX /FX /
3S 3G 3U 3GC
FX Series JY997D16601 Describes PLC programming for
3UC
Programming Manual MODEL CODE: basic/applied instructions and
- Basic & Applied 09R517 devices.
Instruction Edition
JY997D34401
FX-30P Describes FX-30P type Handy
MODEL CODE:
Operation Manual programming panel details.
09R924
How to obtain manuals
For product manuals or documents, contact the Mitsubishi Electric dealer from whom
you purchased your product.
may
Certification of UL, cUL standards
FX-30P units comply with the UL standards (UL, cUL).
UL, cUL File Number: E95239
Regarding the standards that comply with the main unit, please refer to either the FX
series product catalog or consult with your nearest Mitsubishi product provider.
Compliance with EC directive (CE Marking)
This note does not guarantee that an entire mechanical module produced in
accordance with the contents of this note will comply with the following standards.
Compliance to EMC directive and LVD directive for the entire mechanical module
should be checked by the user/manufacturer. For more information please consult with
your nearest Mitsubishi product provider.
Regarding the standards that comply with the main unit, please refer to either the FX
series product catalog or consult with your nearest Mitsubishi product provider.
Requirement for Compliance with EMC directive
The following products have shown compliance through direct testing (of the identified
standards below) and design analysis (through the creation of a technical construction
file) to the European Directive for Electromagnetic Compatibility (2014/30/EU) when
used as directed by the appropriate documentation.
Attention
This product is designed for use in industrial applications.
w i r i n g ,
w i r i n g ,
w i r i n g ,
Type: Programmable Controller (Open Type Equipment)
Description
Models: MELSEC FX series manufactured from December 1st, 2008
FX-30P
f o r w i r i n g ,
Standard
EN61131-2:2007 Compliance with all relevant aspects of the standard.
Programmable controllers EMI
- Equipment • Radiated Emission
f o r w i r i n g ,
r e q u i r e m e n t s a n d • Conducted Emission
tests EMS
• Radiated electromagnetic field
• Fast transient burst
• Electrostatic discharge
f o r w i r i n g ,
• High-energy surge
• Voltage drops and interruptions
0N series PLC
• Conducted RF
• Power frequency magnetic field
f o r w i r i n g ,
Caution for EC Directive
Attach the ferrite core to the communication cables (PLC side).
Attach the ferrite core in approximately 100 mm (3.93") or less from connector on the
f o r w i r i n g , PLC side.
For the ferrite core use the following product or one with equivalent specifications.
Model name: ZCAT2035-0930 (Manufactured by TDK co., Ltd.)
FX-30P
Communication
cable
1. Introduction
Mitsubishi Handy Programming Panel FX-30P (hereafter abbreviated as "FX-30P") is a
handheld unit to edit programs, monitor and test devices, etc. for a connected FX
Series PLC.
→ For system configuration, refer to the FX-30P Operation Manual.
1.1 Major Features of the FX-30P
• The FX-30P is a compact, handheld program monitor.
• The FX-30P displays the program/PLC operation status (monitor), operation
guidance and error messages on the LC display of 21 half-width characters by 8
lines.
• The FX-30P offers online mode and offline mode.
The FX-30P directly accesses the memory of the connected PLC in online mode,
and accesses the built-in RAM in offline mode.
• The FX-30P can back up programs written in offline mode using the built-in battery.
• The FX-30P has a built-in flash memory to save up to 15 programs.
The program management function can read out programs saved in the flash
memory to the built-in RAM, write programs from the built-in RAM to the flash
memory, and delete programs.
• The FX-30P offers list format for writing and reading programs and displaying
monitored devices.
1.2 Incorporated Items
Check to ensure the following product and items are included in the package:
FX-30P
FX-20P-CAB0 (cable)
Manuals [Japanese version, English version]

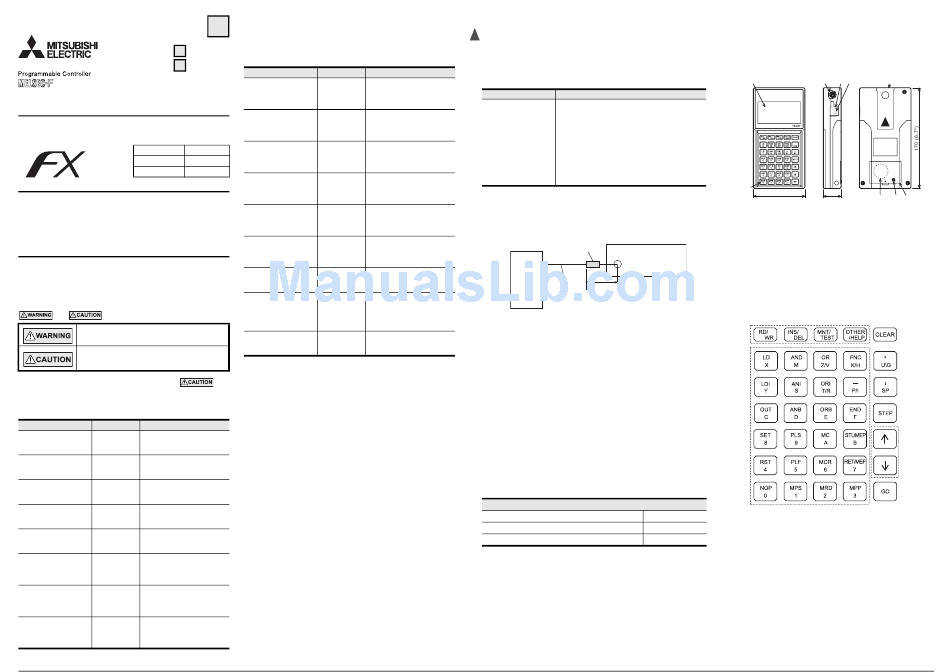

1.3 External Dimensions and Part Names
[1]
Remark
[9]
[1] LCD display (With backlight)
[2] PLC communication port
[3] USB cover
Ferrite core
[4] USB communication port
FX Series PLC [5] Slide hook
[6] Battery cover
[7] Screw for battery cover anchoring
[8] FX 3U -32BL type battery (standard accessory)
100 mm
(3.93")
[9] Key
or less
1.4 Key layout
(1)
(2)
Included Items
(1) Function keys (read/write, insert/delete, monitor/test and other/help): Each
1 unit
key operates alternately.
1 cable
(2) Instruction keys, device symbol keys and numeric keys: Instruction keys are
provided in the upper position of each key, and numeric and device number
1 manual each
keys are provided in the lower position of each key.
(3) [Clear] key: Use this key to cancel the key input before pressing the [GO]
key (before confirmation), clear an error message, or return to the previous
screen.
(4) This key is provided to aid device symbol input.
Use this key to directly specify a buffer memory or specify a device bit.
(5) [Space] key: Use this key to enter space in the entry column, specify a
device or specify a constant.
(6) [Step] key: Use this key to specify the step number.
(7) Cursor control keys: Use these keys to move the line cursor and prompt,
specify a device before or after the currently specified device, or scroll lines.
Press and hold a cursor control key for 1 second or more to achieve
continuous input.
(8) [GO] key: Use this key to confirm or execute a command, scroll the screen
after display, or perform a search again.
[2] [3] [4] [5]
87 (3.43") 30
[8] [7] [6]
(1.19")
Unit: mm (inches)
MASS (Weight): Approx. 0.3 kg (0.66 lbs)
(3)
(4)
(5)
(6)
(7)
(8)
