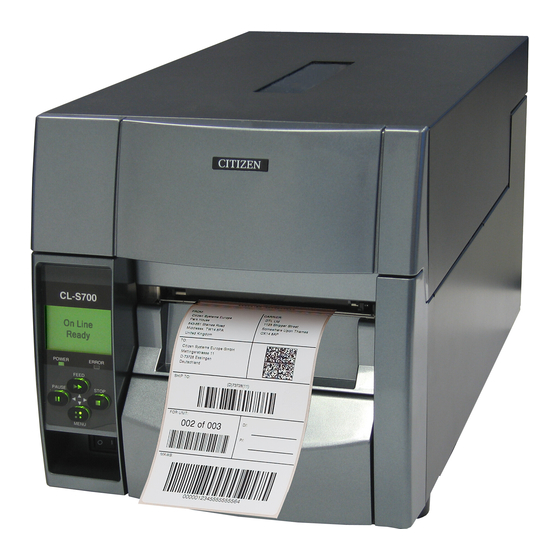

Citizen CL-S700 Installation Manual

For option peeler

Hide thumbs Also See for CL-S700:

See also: Technical Manual , User Manual

CL-S700 INSTALLATION MANUAL for OPTION PEELER

【

】

CAUTION when using the option peeler

Print speed must be set to 7IPS or below

１．Remove the front 3 parts. Remove the 2 parts in the both side first, then remove the part

in center.

Remove 2

Remove 3

Remove 3 screws

Remove 2 screws

Table of Contents

Need help?

Do you have a question about the CL-S700 and is the answer not in the manual?

Page 1 CL-S700 INSTALLATION MANUAL for OPTION PEELER 【】 CAUTION when using the option peeler Print speed must be set to 7IPS or below １．Remove the front 3 parts. Remove the 2 parts in the both side first, then remove the part in center.
Page 2 ２．"Plastic cover" on the part removed from the center must be changed to "Metal guide frame" This part must be change to "Metal gide frame" Remove 2 screws Metal guide frame Hold by 2 screws ３．Install the peeler itself by using 1 long screw Peeler must be held by attached 1 long screw and holding position must be the center.
