Unitech MS100 Quick Start Manual

MS100
Quick Start Guide

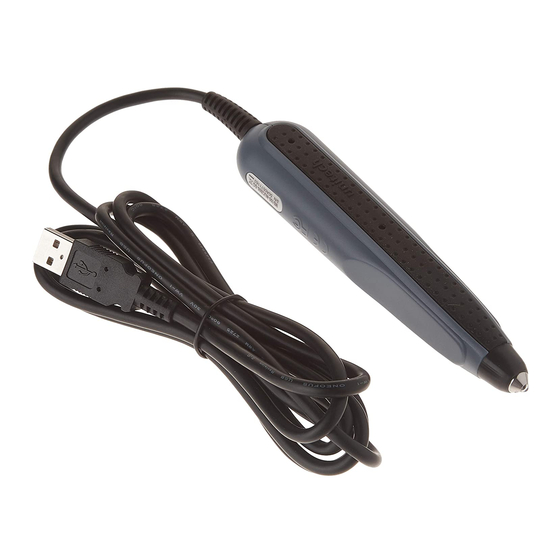

The Unitech MS100 Linear Imager Scanner
Installation Instructions & Popular Configuration Settings
Connect to host via PS/2
Plug the interface cable into a free USB port of a host computer.
SETTINGS AND CONFIGURATION
The following section covers the most common configuration
settings for your MS100 scanner.
For additional configuration options please
unitechscanners.com/MS100 and select the "Download" tab.
You will find the User's Manual and a variety of other resources.
SETUP AND INSTALLATION
The following steps will show you how to install your scanner.
Test & Finish
Open a word processing program such as Microsoft Word or
Notepad on your host. Now scan the following barcode:
If the word "Unitech" appears on the screen you have succesfully
installed your scanner. Congratulations!
Tab Mode
visit
Tab Mode
You may wish to set your scanner to "Tab Mode." In this mode, data
will tab over to the next column as you scan instead of jumping to the
next line. Scan the top barcode then the bottom barcode to switch to
Tab Mode from the default Enter Mode.
Connect to host via USB
Plug the interface cable into a free USB port of a host computer.
Default settings
Factory Default
Scan here to switch back to Enter Mode. This barcode will also
return your scanner to its original factory settings, a useful feature for
troubleshooting purposes.
Connect to host via RS232
Plug the interface cable into the RS232 port of a host computer.
Plug the power supply cable into the RS232 connector and into an
electrical outlet.*
How can we help you?
The MS100 is a plug-and-play pen scanner.* It does not require
a driver and should be recognized as a generic HID device by
your computer, similar to a standard keyboard. This allows you
to scan into any field that you could normally type into.
Unitech's professional support team is available to quickly
answer questions or technical-related issues. Should equipment
issues occur, please contact a Unitech Service Representative
at (800) 861-8648 for more information.
*RS232 connections may require additional software
