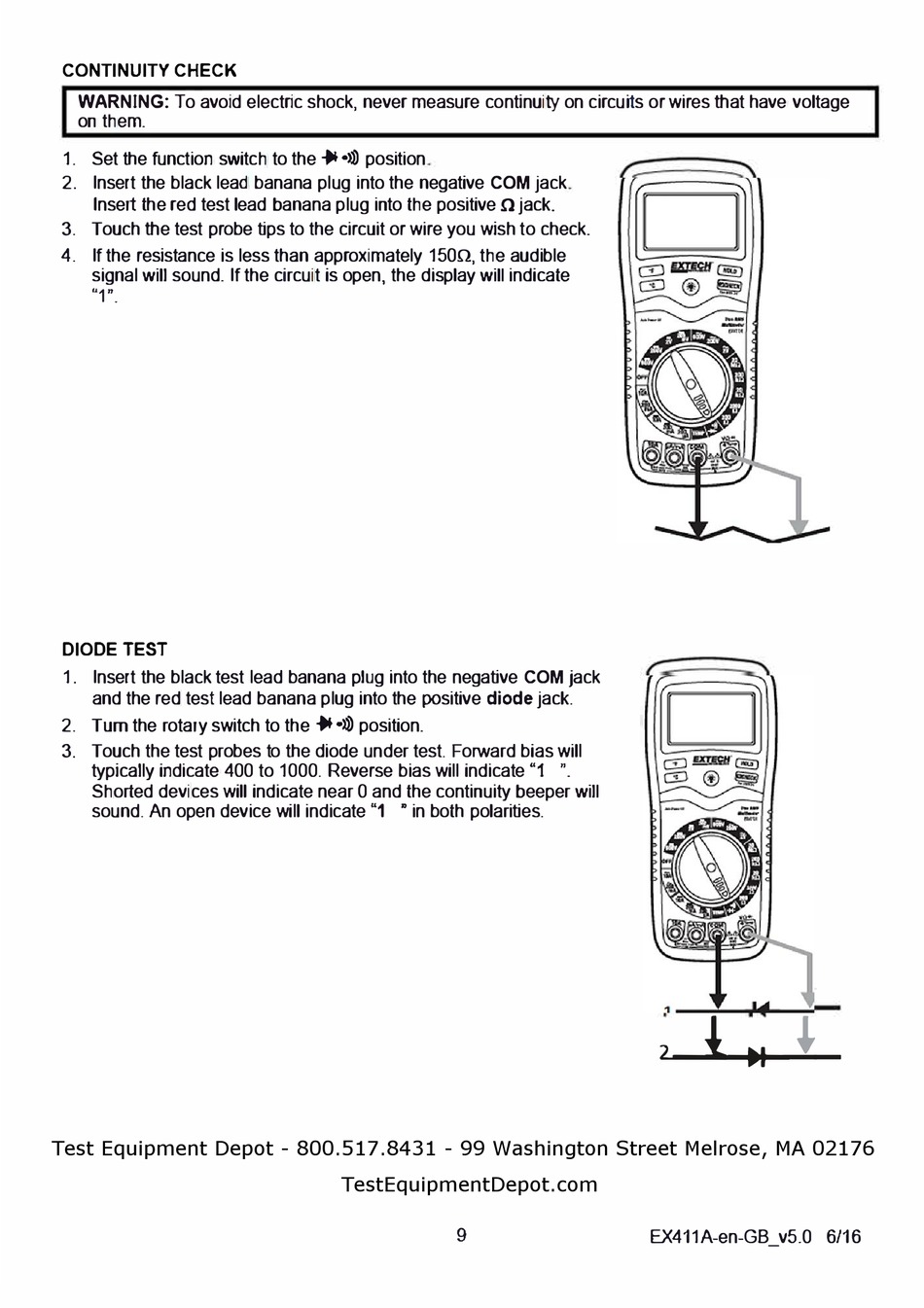

CONTINUITY CHECK

To avoid electric shock, never measure continuity on circuits or wires that have voltage
WARNING:
on them.
1. Set the function switch to the .-i •>ll position
2. Insert the black lead banana plug into the negative
Insert the red test lead banana plug into the positive o jack.
3. Touch the test probe tips to the circuit or wire you wish to check.
4. If the resistance is less than approximately 150n, the audible
signal sound. If the circuit is open, the display
will
c11n.

DIODE TEST

1. Insert the black test lead banana plug into the negative
and the red test lead banana plug into the positive
2. Turn the rotary switch to the .-i •>ll position.
3. Touch the test probes to the diode under test. Forward bias will
typically indicate 400 to 1000. Reverse bias will indicate "1 •.
Shorted devices will indicate near 0 and the continuity beeper
sound. An open device will indicate
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
COM
indicate
will
diode
• in both polarities.
"1
TestEquipmentDepot.com
9
jack
jack
COM
jack.
will
2- !
EX411A-en-GB_v5.0 6/16
