Smartline KVM Extender – Quick Guide

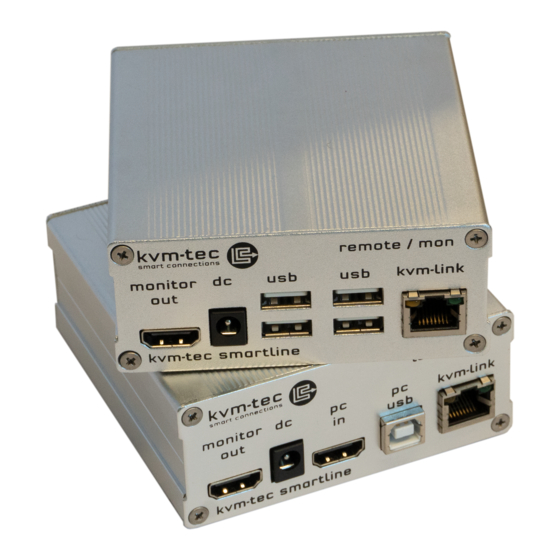

SVX1 Packaging contents
1x SVX1 / PC
1x SVX1 / monitor
2x wall power supply
2x DVI-HDMI cable
1x USB cable
1x Quick Guide
4 mounting pads
4 rubber feet
Installation:
Connect the respective ports of your PC as shown below:
SVX1/PC:
kvm-tec electronic gmbh
– 2523 Tattendorf –
Tel + Fax +43-2253 / 81912 – Mobil +43-650 81912 02 – Email
From the AC
Adapter
From the DVI
output of the
graphics card
Josef Gisperg Platz 7 – Austria
To the
computer
USB port
office@kvm-tec.com
Cat5 cable to
the monitor
part of the
Extender (up
to 100m)
www.kvm-tec.com
