Summary of Contents for KVM-TEC smartEASY single SE1
- Page 1 Easy Check out our Installation Channel: FULL HD - KVM EXTENDER OVER IP Tune in the easy KVM World • smartEasy Single in copper Dual in copper www.kvm-tec.com MANUAL...
-
Page 2: Table Of Contents
2.1 Installing the extender 2.2 QUICKINSTALLATION smarteasy single 2.3 QUICKINSTALLATION smarteasy dual 2.4 Start up 2.5 Removing a CATx cable 2.6 Best practice for Windows 10 3. extender settings www.kvm-tec.com 3.1 Using the on screen menu 2 | kvm-tec kvm-tec | 3... - Page 3 4.2.8 more features 3.7.6 Change keyboard fallback modus 4.2.9 frontbridging 3.7.7 Lock menu 4.2.10 System Status Frontbridging 3.7.8 Mouse speed 4.2.11 Change the Frontbridging Layout 3.7.9 Monitor sync strength 4.2.12 backbridging 4.2.13 System Status Backbridging 4 | kvm-tec kvm-tec | 5...
-
Page 4: Introduction
CPU and the SE/Monitor is referred to as the ‘remote unit‘ / CON. 7.1. Standard warranty 7.2 Extended warranty 8. cable requirements 8.1 Requirements for CAT5e/6/7 cables 9. Requirements network-switch 9.1 Recommended switches 10. contacts & phone / emails 11. Notes 6 | kvm-tec 7 | kvm-tec kvm-tec | 7... -
Page 5: Safety Instructions
• Use shielded cables only to connect the components in order to avoid such interference. Non-compliance invalidates the permission to operate this product. • Only the mains adapter included with the product should be used as the power supply. Do not use other adapters. • Prior to connecting to the mains, make sure your local mains voltage matches the rating indicated on the product. • The product must be connected to a permanent and earthed AC wall socket. 8 | kvm-tec kvm-tec | 9... -
Page 6: Technical Specifications
1.4 ABOUt tHe PROdUct - smARteAsY sINgLe 1.3 tecHNIcAL sPeZIFIcAtIONs Typ: KVM Extender local/CPU Unit and remote/CON Unit Remote /cON extender Modell: smartEASY single SE1 KVM Extender smartEASY dual SE2 KVM Extender Spannungsversorgung: 100 - 240 V; 50/60 Hz AC Power supply 12VDC2A, external power supply... -

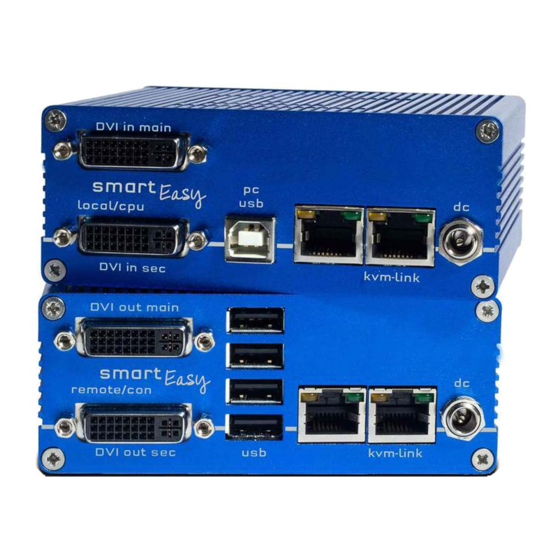

Page 7: Product Elements - Smarteasy Dual
Connection for CAT5/6/7 cable Connection power supply 12V1A Led stAtUs yellow LINK ok Led stAtUs green Video ok yellow LINK ok green blinking Video and USB activityx green Video ok green blinking Video and USB activityx 12 | kvm-tec kvm-tec | 13... -
Page 8: Product Elements - Smartflex Backside
DVI connection to PC USB to PC kvm-link Connection for CAT5/6/7 cable kvm-link Connection for CAT5/6/7 cable Conenction 12V1A power supply Led stAtUs yellow LINK ok green Video ok green blinking Video and USB activity 14 | kvm-tec kvm-tec | 15... -
Page 9: About The Status Led
1 x USB cable 1,8m/5.9ft 4 x rubber feet Remote / cON Unit 1 x SE2 remote/CON 1 x wall power supply unit 12 V 1A (EU-plug or Int plug) 4 x rubber feet 16 | kvm-tec kvm-tec | 17... -
Page 10: Mounting Options
Rackmounting RMK-EASY-F Part Nr. 6232 RMK-FLEX-F The rack mounting kit RMK-EASY- F is for mounting kvm-tec smartEASY single and dual extenders. It consists of a19“ rack shelf and an alu-faceplate. Rackmounting RMK- EASY- FN - T Part-Nr. 6232 RMK- EASY-FN The rack mounting kit RMK-EASY-FN is for assembling kvm-tec smartEASY extenders. -
Page 11: Quickinstallation Smarteasy Single
1Gbit/sec. For video sharing the network has to support IGMP snooping. HAve FUN - your kvm-tec extender is now in use for many years (mtBF approx 10 years) HAve FUN - your kvm-tec extender is now in use for many years (mtBF approx 10 years) -
Page 12: Start Up
The red status LED blinks a few seconds. After a few seconds the status LED lights green. The monitor will displays your computer’s desktop or any open applications. 2.5 RemOvINg A cAtx cABLe to remove a cAtx cable: • Press the latch down and slowly pull the cable out. 22 | kvm-tec kvm-tec | 23... - Page 13 2. INstALLAtION OF tHe exteNdeR 2. INstALLAtION OF tHe exteNdeR 24 | kvm-tec kvm-tec | 25...
-
Page 14: Extender Settings
Setting local Features menu The individual menu items are described in more detail in chapter 4 (page 52). Remote Settings Setting remote About Overview Overview Extender Q Exit Close the OSD 26 | kvm-tec kvm-tec | 26 kvm-tec | 27... -
Page 15: Diagnosis Menu
“Test OK! If errors occurred during the test, the status displays the sum of all errors that occurred. Additionally you get the CPU temperature information of both units. Another feature is the cable test 28 | kvm-tec kvm-tec | 29... -
Page 16: Ddc Menu
- Press 2 to save the current DDC information. The system will applies the same settings after restarting the Extender - Press the keys 4 to 8 to use a predefined resolution, which is saved. 3. press ESC to return to the main menu 3.5.2 ddc secONd (dUAL) 30 | kvm-tec kvm-tec | 31... -
Page 17: Extender Settings
The PC can be put into sleep mode and reactivated with any key. View the local or remote Extender settings: - Press the L button to display the Local setting menu. USB Compatibility Mode Disabled/Enabled USB Remote Wakeup Disabled/Enabled Compatibility with Linux Disabled/Enabled Bandwidth Reduction 32 | kvm-tec kvm-tec | 33... -
Page 18: Compatibility With Linux
(OSD). You can choose between French (FR), English (EN) and German (DE). selecting a keyboard layout: 1. Press s in the extender settings menu- The Remote settings menu appears. 2. Press the k key. The keyboard Layout will be changed. 34 | kvm-tec kvm-tec | 35... -
Page 19: Editing Keyboard Shortcuts
1. press the R key in the main menu. The Remote Settings menu is displayed. 2. Press the P button to enable or disable the Power Saving Mode. 3. When in Power Saving Mode, press any key to return to the menu. 36 | kvm-tec kvm-tec | 37... -
Page 20: Hiding System Status Menu
For most keyboards, use the 0 setting. When using USB, some mice act like a keyboard. In this case, select fallback mode 1 or 2. To change the Keyboaed fallback mode press the button F 38 | kvm-tec kvm-tec | 39... -
Page 21: Lock Menu
By pressing the L button, you can choose between: The mouse speed can be adjusted by pressing the m button Password OSD can only be activated by password timer disabel, 1min, 5min, 10min, 15min, 30min, 60min 40 | kvm-tec kvm-tec | 41... -
Page 22: Monitor Sync Strength
All extenders in the system file can also be updated together. For the update, activate the Settings window and select the folder from which the firmware file is to be uploaded. The list of bitmaps is displayed under MX Firmware. Then transfer the firmware and the update will be done in two steps. 1. send the firmware to the extender. It takes about 2 minutes until the firmware is loaded into the extender. The bar on the right in the column the main window fills blue 2. is the update. AtteNtION Only if the bar is grey, the update is finished. 42 | kvm-tec kvm-tec | 43... -
Page 23: Firmware Update With Usb Stick
1. Make sure the main menu is open. 2. Press the M key. The Options Overview menu opens. The current USB Memory status is displayed (Enabled or Disabled). 3. Press 1 to enable or 0 to disable the USB Memory upgrade. 44 | kvm-tec kvm-tec | 45... -
Page 24: About This Device
USB status. The link status indicates whether a connection is possible. connected shows if the kvm files can be transferred currently. video and UsB shows if data is currently being transferred. single dual 46 | kvm-tec kvm-tec | 47... -
Page 25: Switching Features Menu
(Point to Point schließt sich mit Matrix mode aus) Matrix Switching Mode Disabled/Enabled USB Save Feature (mass storage usable) Disabled/Enabled Freeze last Image (Disabled)Disabled/Enabled USB Emulation Mode (Disabled ) Disabled/Enabled Easy Manager Easy Back Bridge Unlock Features Switching Status as EasyManager 48 | kvm-tec kvm-tec | 49... -
Page 26: Point To Point
3. Press esc to return to the main menu. 4.2.5 UsB sAve FeAtURe The kvm-tec feature „USB save“ prevents the intrusion of viruses via the USB interface by deactivating mass storage devices. By pressing the key „s“ you can switch the USB save feature on and off... -
Page 27: Easy Manager On/Off
Extenders in the network. 4.2.8 mORe FeAtURes -Change the names of the devices -Update the extender in the network (see 3.11.2) -USB Emulation Mode can be set via this device in the whole network Easy Manager on/off 52 | kvm-tec kvm-tec | 53... -
Page 28: Frontbridging
Unit dual | In frontbridging, one or two monitors can simultaneously display the contents of the PCs with different images and can be operated either right or left. Local Unit single Local Unit single 54 | kvm-tec kvm-tec | 55... -
Page 29: System Status Frontbridging
USB status. The link status indicates whether a connection is possible. connected shows if the kvm files can be transferred currently. video and UsB shows if data is currently being transferred single dual 56 | kvm-tec kvm-tec | 57... -
Page 30: Backbridging
In backbridging it is possible to share from one dual remote Unit single remote Unit single local extender to two single remote extender. For all applications that require monitoring at different locations local Unit dual 58 | kvm-tec kvm-tec | 59... -
Page 31: System Status Backbridging
USB status. The link status indicates whether a connection is possible. connected shows if the kvm files can be transferred currently. video and UsB shows if data is currently being transferred single dual 60 | kvm-tec kvm-tec | 61... -
Page 32: Easy Cross Move - Software Feature
You can change the bandwidth with +/- or u/d. both PCs can be opera- remote Unit dual ted with one mouse and one keyboard 2 local Units + 1 remote Unit = easy cross move with 1 keyboard & 1 mouse 62 | kvm-tec kvm-tec | 63... -
Page 33: Remote Settings
- Once every device on the network has been detected, it is advisable to reduce. - F5’ in the switch list (with Easyline Manager) sends a broadcast to reduce ALL devices all at once. Get List 64 | kvm-tec kvm-tec | 65... -
Page 34: Connecting, Disconnecting Or Selecting A Current Workplace Connected Devices
Install current firmware from our homepage www.kvm- green has an incorrect tec.com/support display Led is blinking Different firmware Please contact the kvm-tec support team via e-mail: green or USB is not support@kvm-tec.com or by phone: +43 2253 81912 30 compatible Led light Different firmware To enter on screen menu/check firmware version:... -
Page 35: Maintance & Care
Contact kvm-tec Contact kvm-tec support support We are here for you to answer your questions about installation? Manual download www.kvm-tec.com kvm-tec Installationchannel on our homepage personally +43 2253 81912 68 | kvm-tec 69 | kvm-tec kvm-tec | 69... -
Page 36: Warranty
2 years standard warranty color Orange/White Orange green/White Blue Blue/White Art Nr 9003 warranty extension to 5 years per Set green Art Nr 9002 warranty extension to 5 years Brown/White per Unit Brown 70 | kvm-tec kvm-tec | 70 kvm-tec | 71... -
Page 37: Requirements Network-Switch
Fax: 0043 (0) 2253 81 912 99 Email: support@kvm-tec.com Web: www.kvm-tec.com A list of kvm-tec tested and recommended switches can be found on our website at www.kvm-tec.com Find our newest updates and FAQs on our homepage: http://www.kvm-tec.com Products - Switching System - Datasheet -recommended Switch kvm-tec Inc. -
Page 38: Notes
11. NOtes 74 | kvm-tec...
