Transmission Unit And Pulley; Restoring Drive To The Lawnmower - Mountfield SP534ES Service Manual

• Refit the spark plug cap on the spark plug
• Carefully lift the mower down onto the ground without tipping it forwards or sideways
• Drive should now be restored to your lawnmower
Please note that replacement parts for your lawnmower can be purchased from your local dealer
who is also able to undertake repairs if required.
Your local dealer can be found via the ServiceLink website -
Please visit www.servicelink.org.uk

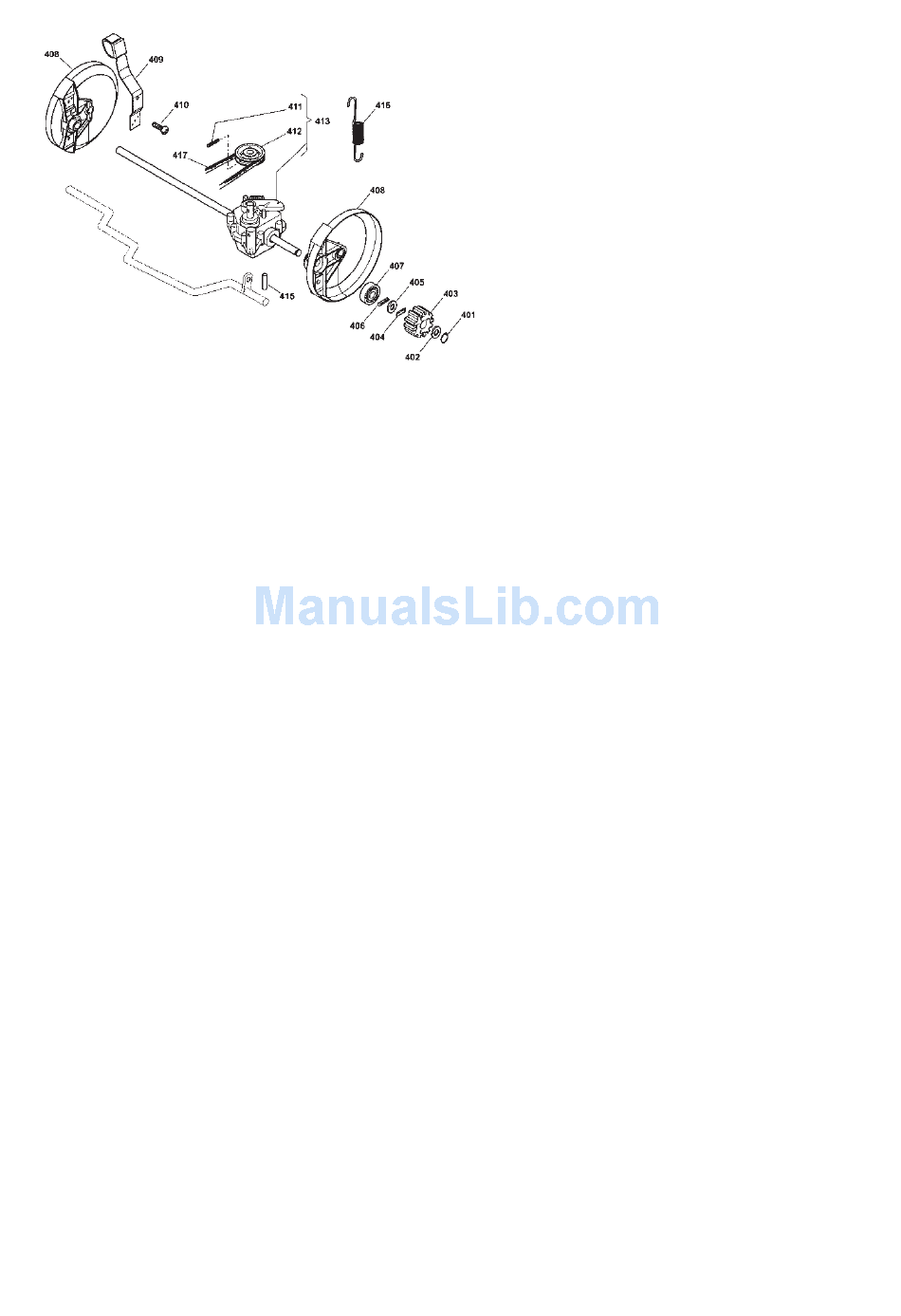

On the back axle there is a black box
•
(the transmission unit) and on the
uppermost face of this is a pulley (part
412)
• Wind the belt onto this pulley as if
winding a chain onto a bicycle wheel
(it may appear that this pulley is at an
angle, but the tension of the belt will
straighten this)
Refit the belt guard plate and fasten in
•
place with the four screws
• Re-attach the blade the correct way up
www.servicelink.org.uk
for other helpful advice, manuals & self help guides
