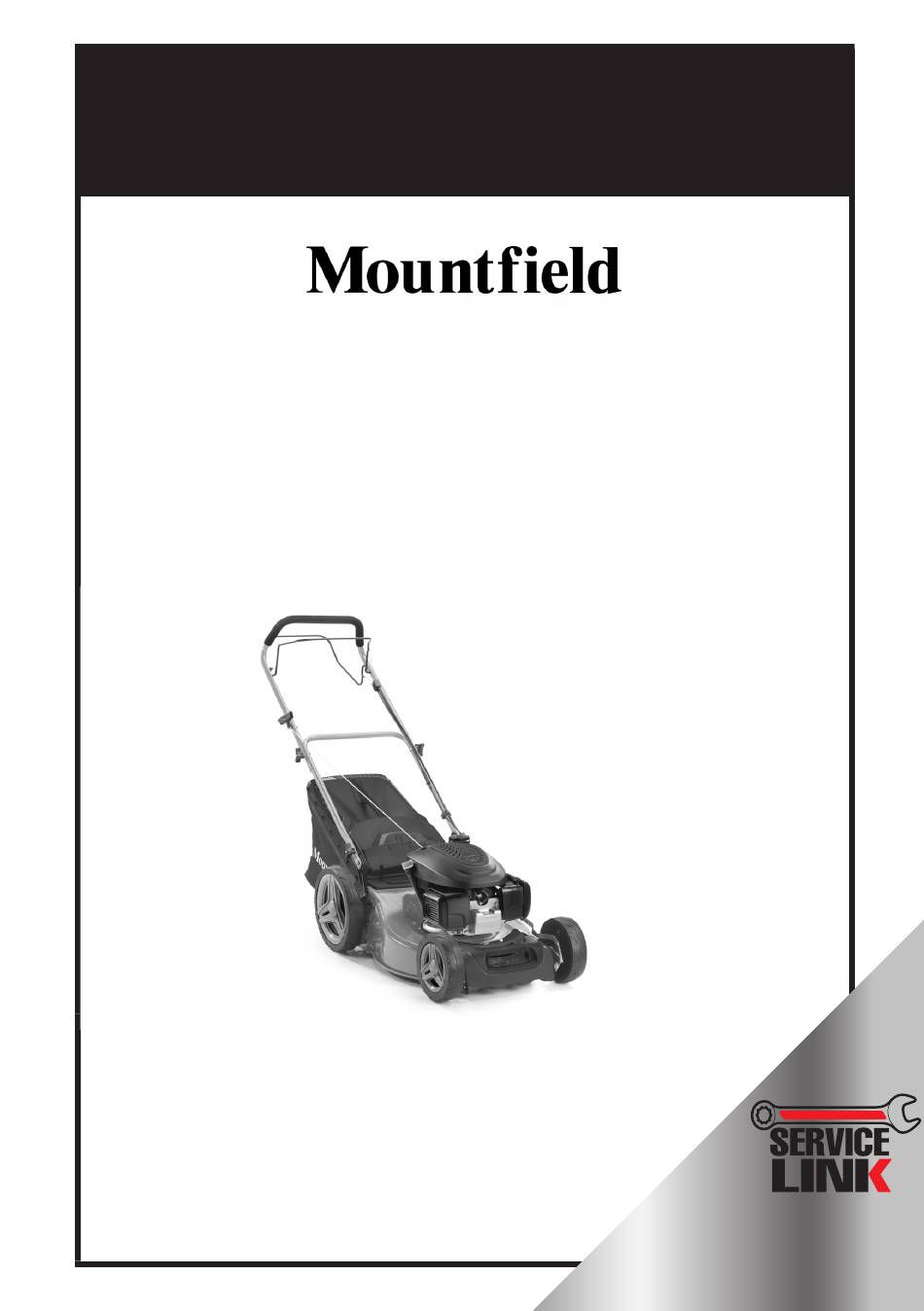

Please Read These Instructions
Before Using Your Mower
Operating Instructions

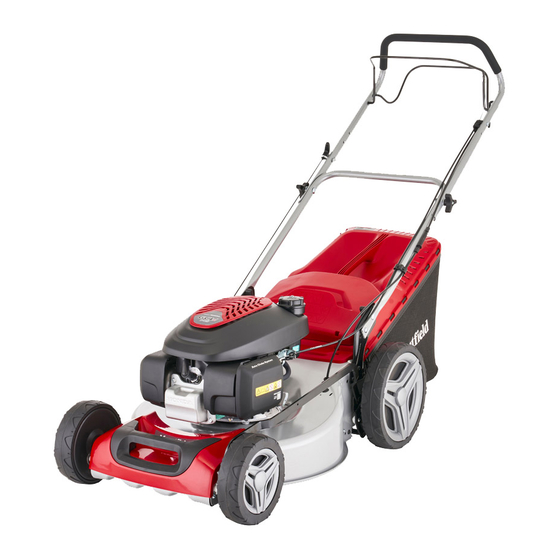

SP53H, SP51H Lawnmowers
with Honda GCVx 170 OHV and
GCVx 145 OHV Autochoke engines
Do not return this product to store, please call
the Service Link Helpline.
Products with petrol in cannot be accepted
back in store.
Visit www.servicelink.org.uk for a quick start video
for models
Product Code:
2L0536033/MC
2L0536133/MC
Supported by
For all your Warranty,
Parts and Service needs
0800 121 6585
1800 806 149 ROI
www.servicelink.org.uk
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2L0536033/MC and is the answer not in the manual?

Questions and answers

Summary of Contents for Mountfield 2L0536033/MC

  • Page 1 SP53H, SP51H Lawnmowers with Honda GCVx 170 OHV and GCVx 145 OHV Autochoke engines Product Code: 2L0536033/MC 2L0536133/MC Do not return this product to store, please call Supported by the Service Link Helpline. Products with petrol in cannot be accepted back in store.
  • Page 2 ENGLISH - Translation of the original instruction ................ITALIANO - Istruzioni Originali ....................
  • Page 3 Type: /min Art.N. - s/n IMPORTER FOR UK...
  • Page 4 0 mm 3 mm...
  • Page 10 3 mm 0 mm...
  • Page 15: Technical Data

    CP1 534 �1� TECHNICAL DATA Series �2� Nominal power * 2,10 ÷ 3,3 �3� Max. engine operation speed * 2900 ± 100 �4� Machine weight * 29 ÷ 35,5 �5� Cutting width �6� Cutting blade 81004459/0 �7� dB(A) Acoustic pressure level (max.) Measurement uncertainty �8�...
  • Page 16 WARNING: READ THIS MANUAL CAREFULLY BEFORE USING THE MACHINE. Keep safe for future reference. INDEX • Never allow children or persons unfamiliar with these instructions to use the machine. Local laws may establish 1. GENERAL INFORMATION .......... 1 a minimum age for users. 2.
  • Page 17: During Operation

    • Immediately clean up all traces of fuel spilt on the machine Use limitations or on the ground. • Never operate the machine with guards that are damaged, • Replace caps on all fuel tanks and containers securely. missing or incorrectly assembled (grass catcher, side •...
  • Page 18: Safety Signs

    This machine is designed and built to cut (and collect) grass must be replaced. Order replacement decals from an in gardens and grassy areas, with a height according to its Authorised Mountfield Service Dealer. cutting capacity, driven by an operator walking behind it. IDENTIFICATION LABEL Generally speaking this machine can: The identification label holds the following data (Fig.1.0).
  • Page 19: Cutting Height Adjustment

    UNPACKING (Fig.3.0) Preparation for grass mowing and chopping Remove all the unassembled parts from the box. (mulching function): Take out the machine and dispose of the box and packaging in compliance with local regulations. Lift the rear discharge guard (Fig.13.A) and fit the chute cap (Fig.13.B) into the discharge opening, keeping it HANDLE ASSEMBLY (Fig.4.A/B/C) slightly tilted to the right.
  • Page 20: Operation

    Remove the grass catcher (Fig.21.B/C/D). provided in the tables, do not use the machine! Contact STOP (Fig.22.A) an Authorised Mountfield Service Dealer to have it checked and repaired if necessary. After having stopped the machine, it will take a few seconds for the cutting blade to stop.
  • Page 21 - par. 6.1.2d.). IMPORTANT Any maintenance and adjustment operations not described in this manual must be carried out To wash the internal part of the cutting blade assembly, by a Authorised Mountfield Service Dealer. proceed as follows (Fig.25.A/B/C): 7.2.1 Refuelling Always stay behind the handle of the lawn mower;...
  • Page 22 * Refer to the engine manual. *** Operation to be performed at the first signs of any malfunction *** The operation must be carried out by your Dealer or a Mountfield Authorised Service Dealer 11. PROBLEM IDENTIFICATION If problems persist after having performed the above operations, contact your Dealer or a Mountfield Authorised Service Dealer. PROBLEM...
  • Page 23 12. ATTACHMENTS ON REQUEST 12.1 MULCHING KIT (Fig.28) Finely chops the cut grass and leaves it on the lawn. EN - 8...
  • Page 24 ATTENZIONE: PRIMA DI USARE LA MACCHINA, LEGGERE ATTENTAMENTE IL PRESENTE LI- BRETTO. Conservare per ogni futura necessità. INDICE • Non permettere mai che la macchina venga utilizzata da bambini o da persone che non abbiano la necessaria 1. GENERALITÀ ............... 1 dimestichezza con le istruzioni.
  • Page 25: Durante L'utilizzo

    • Non avvicinare fiamme alla bocca del serbatoio per verifi- • Non toccare le parti del motore che, durante l’uso, si ri- care il contenuto. scaldano. Rischio di ustioni. • Se fuoriesce del carburante, non avviare il motore, ma In caso di rotture o incidenti durante il lavoro, allontanare la macchina dall’area nella quale il carburante arrestare immediatamente il motore e allontanare la è...
  • Page 26: Segnaletica Di Sicurezza

    • Evitare di essere un elemento di disturbo nei confronti del 3.1.2 Tipologia di utente vicinato. Utilizzare la macchina solamente in orari ragio- Questa macchina è destinata all’utilizzo da parte di consu- nevoli (non al mattino presto o alla sera tardi quando le matori, cioè...
  • Page 27: Comandi Di Controllo

    Prima di ogni utilizzo Leva freno motore / dispositivo di taglio. Verificare la presenza di carburante ed il livello dell’olio Leva innesto trazione. seguendo le indicazioni contenute nel manuale di Istruzioni del motore e nei par. 7.2.1/7.2.2. Rispettare scrupolosamente le indicazioni e le nor- 6.1.2 Predisposizione della macchina al lavoro me di sicurezza descritte al cap.
  • Page 28: Controlli Di Sicurezza

    6.1.3 Regolazione dell’inclinazione del manico LAVORO (Fig.15/16) IMPORTANTE Durante il lavoro mantenere sempre la Eseguire l’operazione a dispositivo di taglio fermo. distanza di sicurezza dal dispositivo di taglio, data dalla lunghezza del manico. CONTROLLI DI SICUREZZA 6.4.1 Taglio dell’erba Effettuare sempre i controlli di sicurezza prima Iniziare l’avanzamento ed il taglio nella zona erbosa.
  • Page 29: Manutenzione Ordinaria

    montaggio e/o sostituzione) devono essere eseguite MANUTENZIONE presso un Centro Specializzato. GENERALITÀ Far sostituire sempre il dispositivo di taglio dan- neggiato, storto o usurato, assieme alle proprie viti, per Le norme di sicurezza da seguire sono descritte al mantenere l’equilibratura. cap.
  • Page 30 • assicurandosi di aver rimosso chiavi o utensili usati per la manutenzione. MOVIMENTAZIONE E TRASPORTO Ogni volta che è necessario movimentare, sollevare, traspor- tare o inclinare la macchina occorre: • Arrestare la macchina (par. 6.5) fino al completo arresto delle parti in movimento. •...
  • Page 31: Identificazione Inconvenienti

    11. IDENTIFICAZIONE INCONVENIENTI Se gli inconvenienti perdurano dopo aver applicato i rimedi descritti, contattare il vostro Rivenditore. INCONVENIENTE CAUSA PROBABILE RIMEDIO Il motore non Procedura di avviamento non corretta. Seguire le istruzioni (vedi cap. 6.3). si avvia, non Manca l’olio o la benzina nel motore. Controllare i livelli dell’olio e della benzina (vedi cap.
  • Page 32 This product is supported by Service Link. If you have been unable to find the information you require above please call the Service Link helpline. Here you will find 1-2-1 help and advice from HELPLINE garden machinery repair specialists. 0800 121 6585 1800 806 149 ROI or visit www.servicelink.org.uk...
  • Page 33: Certificate Of Conformity

    CERTIFICATE OF CONFORMITY A certificate of conformity is enclosed with the documentation as a separate document. EXAMPLE shown below. DICHIARAZIONE CE DI CONFORMITÁ (Istruzioni Originali) FR (Traduction de la notice originale) EN (Translation of the original instruction) DE (Übersetzung der Originalbetriebsanleitung) (Direttiva Macchine 2006/42/CE, Allegato II, parte A) Déclaration CE de Conformité...
  • Page 34 0800 121 6585 or 1800 806 149 ROI and our operators will endeavour to solve your problem. In the event your problem cannot be resolved over the phone the operator will refer you to one of our local Mountfield authorised service dealers.
  • Page 36 STIGA LTD Unit 8, Bluewater Estate, Bell Close, Plympton, Plymouth, Devon, PL7 4JH, England. STIGA LTD (UK Importer) manufactured by ST. S.p.A. Via del Lavoro, 6 I-31033 Castelfranco Unit 8, Bluewater Estate Plymptom, Veneto (TV) Italy Devon, PL7 4JH, England Part Number 171506361/0...
