On self-propelled lawnmowers it is possible for the drive belt to slip of its drive pulleys resulting in a
loss of drive. The engine will still start as normal and the blades rotate however, the mower fails to
propel itself along the ground when the drive is engaged.
The replacing or refitting of a drive belt is not covered by warranty however, refitting the belt is a
simple process as outlined below.
These instructions are specific to the following model -
SP534ES
Instructions for refitting the drive belt are as follows -
Inspect the belt for signs of damage and replace if required. Replacement belts can be obtained
via your local dealer which can be found via the ServiceLink website (www.servicelink.org.uk)

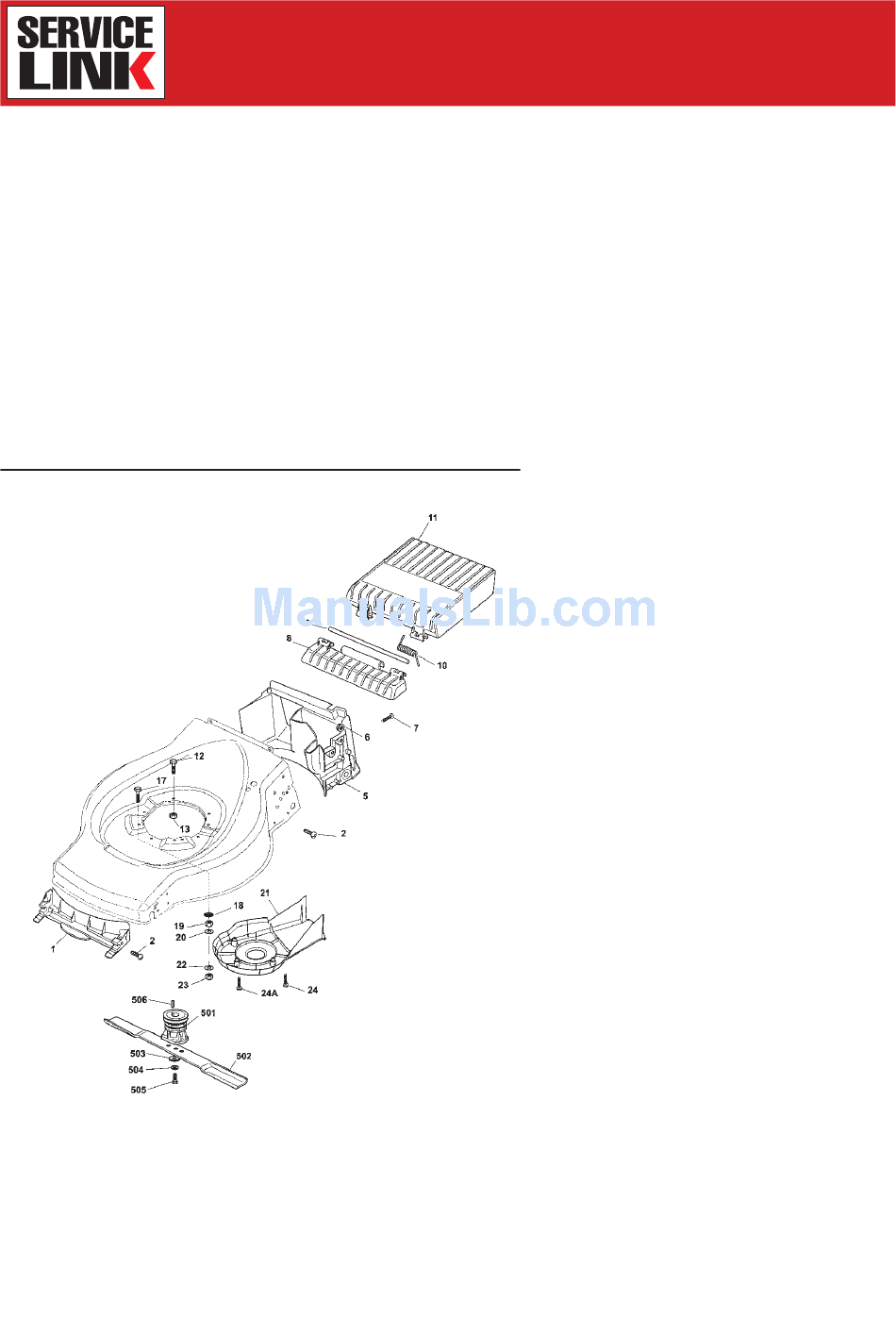

Position the belt around the pulley on the blade shaft (part 501)

Loss of Drive

www.servicelink.org.uk
Remove the grassbox
Remove the spark plug cap (for safety
reasons)
Without tipping the mower forwards
or sideways, lift the mower up onto
a workbench on all 4 wheels, and
position the backwheels close to the
edge of the workbench
Raise the stone guard (part 11), and
tip the mower BACKWARDS so that
the handle hangs over the edge of the
bench – the mower will stand upright
like this
Mark the blade so that after removing
it you can replace it the correct way
up. Unscrew the blade (normal thread,
turn the spanner anti-clockwise to
unfasten)
Remove the belt guard plate – this is
the large plate through which the blade
shaft protrudes (part 21), it is between
the blade and the deck of the mower
and held on by 4 screws

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP534ES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mountfield SP534ES

  • Page 1 The replacing or refitting of a drive belt is not covered by warranty however, refitting the belt is a simple process as outlined below. These instructions are specific to the following model - SP534ES Instructions for refitting the drive belt are as follows - Remove the grassbox •...
  • Page 2 On the back axle there is a black box • (the transmission unit) and on the uppermost face of this is a pulley (part 412) • Wind the belt onto this pulley as if winding a chain onto a bicycle wheel (it may appear that this pulley is at an angle, but the tension of the belt will straighten this)
