1. Ensure that the enclosure is semi-flush mounted as directed in Paragraph 2-3.1.2.
2. Prepare the surface of the wall for trim-ring installation by clearing all dirt and debris within
1-1/2 inches (38 mm) of the back-box perimeter. Ensure that this perimeter area is clean
and dry.
3. Install the trim ring by first removing the protective strips that cover the adhesive tape on
its back surface. Slip the trim ring over the back box with the adhesive-tape side toward
the wall. The trim ring has tabs on both sides that aid in aligning it with the back box. Press
all sides of the trim ring to the wall when it is correctly aligned and plumb with the back
box.
2-3.2

Installing the Power Supply Unit, P/N 06-118394-001

Use a ground strap to prevent static discharge that could damage the power
supply.
CAUTION
1. Make sure the control unit location is dry and that the enclosure is free of construction dust
and metal shavings prior to installing the power supply.
2. Remove the power supply unit from its shipping carton.
3. The AEGIS unit is supplied with one of two equivalent power supplies. Compare the
terminal block wiring legend on the provided power supply with the diagrams in Figure 2-6
and connect the wiring harness as shown.
4. Connect the Power Supply Wiring Harness (P/N 06-220025-001) to the power supply unit.
Next connect the fork end of the green ground wire (P/N 06-129928-002) to the
earth-ground terminal of the power supply unit. Refer to Figure 2-6 and Figure 2-7 for wire
harness and earth-ground connections.
P/N 06-236716-001
1-3/4 in.
(44 mm)
MIN.
TRIM RING
WALL
BACK BOX
COVER

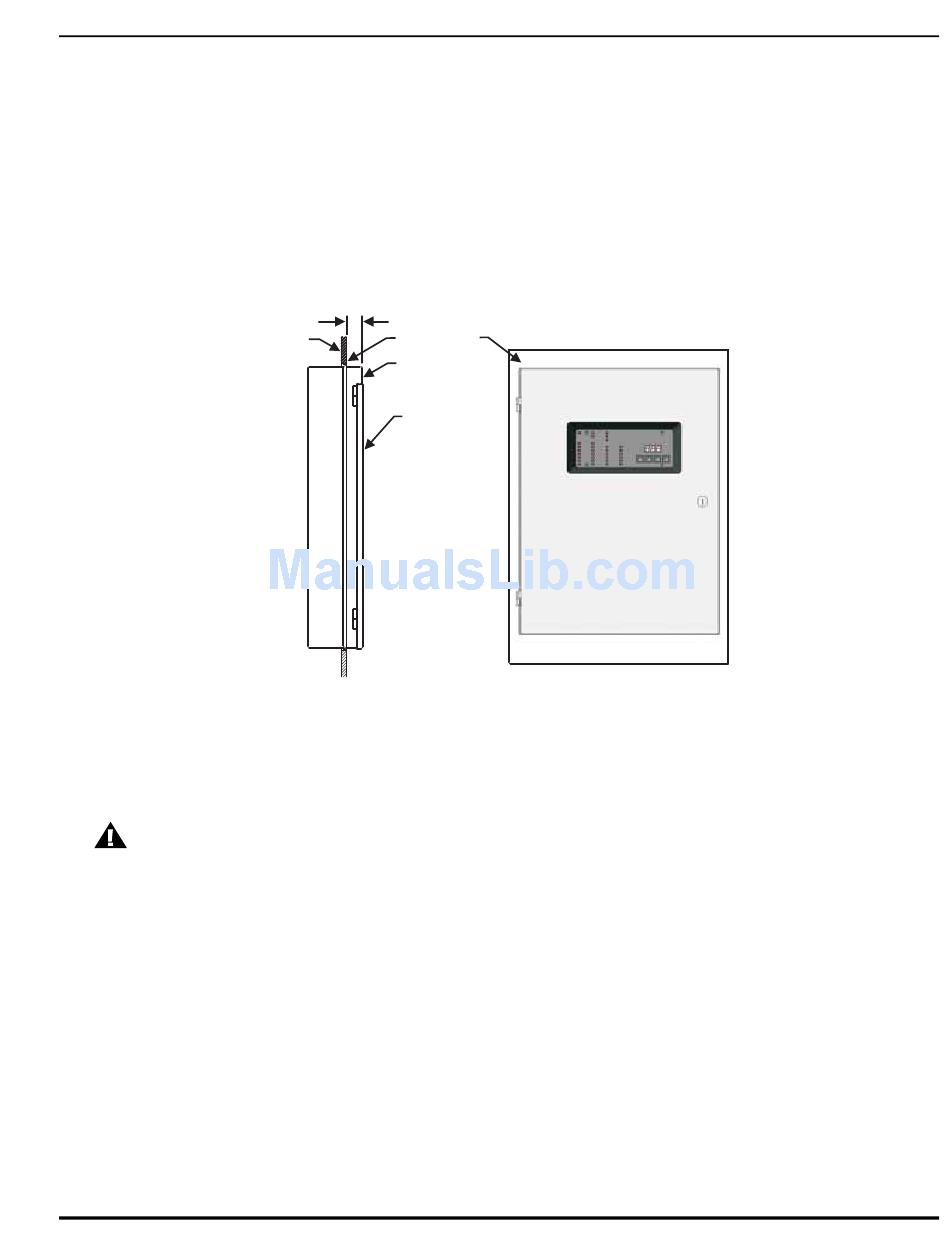

Figure 2-5. Trim Ring Installed
2-7
