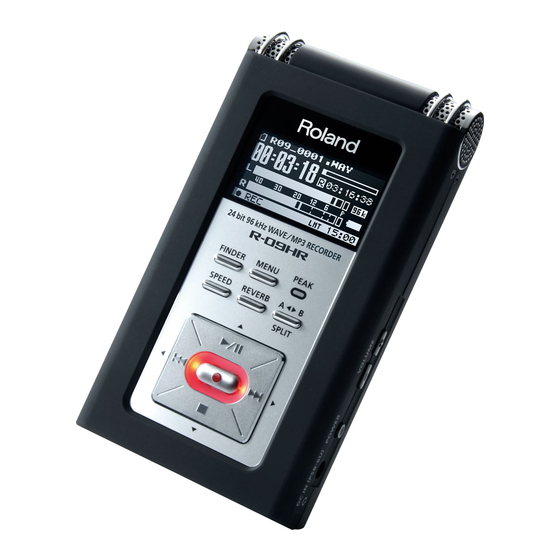

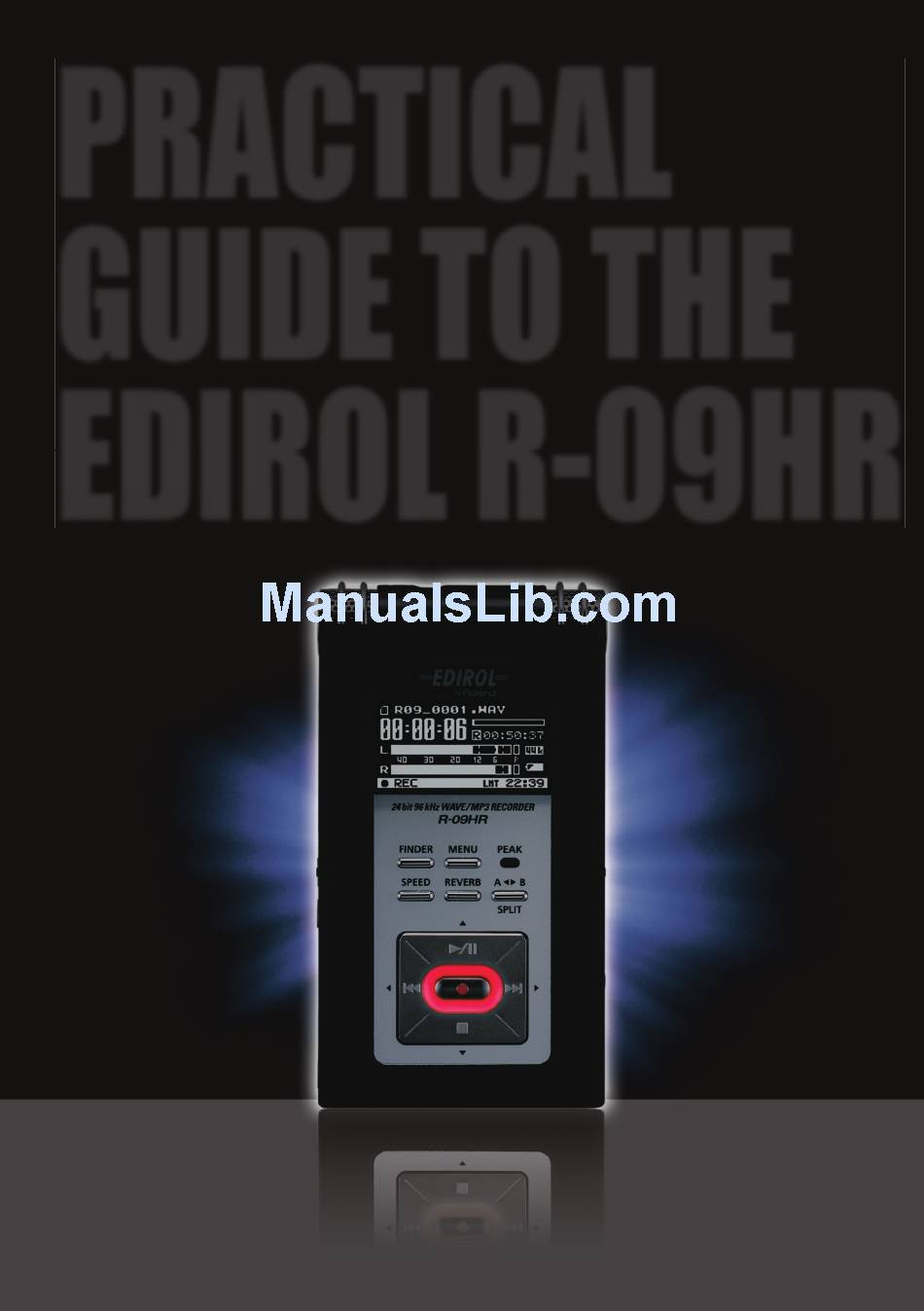

- Page 1 Practical Guide to the edirol r-09hr Amazing 24 bit/96 kHz super sound quality! Ultra-lightweight recorder. Fits in your pocket! Functional! Fun! Record anywhere! Detailed explanation of practical techniques.
- Page 2 Welcome to the World of Live Recording. Record band performances. Record bird songs. Record children singing. Record trains. Record realistically. Record the air around you. Record in uncompressed 24 bit/96 kHz. Record, record, and record some more. Everyone wants to record the sounds of their lives. This book is written for those who are new to the world of Live Recording using the EDIROL R-09HR.
-
Page 3: Table Of Contents
Chapter 1 : The outstanding features of the R-09HR The outstanding features of the R-09HR..p. 4 Chapter 2 : Situation practical use technique Situation 1 : Recording acoustic instruments ... p. 6 Situation 2 : Recording band performances ... p. 8 Situation 3 : Recording from cassettes or MD ... - Page 4 Compact, with high sound quality. Unbelievable high quality The R-09HR’s 24 bit/96 kHz quality is suitable for professional recording studios and sur- passes the 16 bit/44.1 kHz standard for CDs. You can capture the dynamics and details of recorded sound. No searching!! Start recording immediately by pressing a button!! Immediately playback!! pressing a button!! Immediately playback!!
-
Page 5: The Outstanding Features Of The R-09Hr
The outstanding features of the R-09HR. No mechanical noise. Convenient built-in mic. The R-09HR uses an SD card as its recording media. Recording doesn’t involve moving parts, so you don’t have to worry about recording the mechanical noises associated with tape- and disc-based recorders. The built-in stereo mic is both practical and powerful. -
Page 6: Situation 1 : Recording Acoustic Instruments
Situation Recording acoustic instruments Setting Point the recording level First, set the recording volume. Play a phrase that has the highest volume, and then adjust the recording level so that the R-09HR level meter reaches the highest level without the PEAK indicator, shown in red below, turning on. - Page 7 Setting Point sound quality We recommend recording instruments in WAV format. However, because MP3 recordings are compact in fi le size, they can be useful for recording instrument practice. Record Mode Get professional recording quality for digital audio by recording in 24 bit/96 kHz. Recording in 16 bit/44.1 kHz allows you to transfer data to the PC and burn a CD without any conversion.
-
Page 8: Situation 2 : Recording Band Performances
Situation Recording band performances What is a Point good level? Bands are louder than normal everyday sounds. Set the mic gain in the back of the R-09HR to LOW. Set LIMITER/AGC to ON Set to HIGH for quieter sounds Set to LOW for louder sounds Also, you should turn on the limiter. - Page 9 Optimizing Point recording levels Before recording the band, fi nd where the loud- est sound occurs. Adjust the recording level so that the R-09HR level meter reaches its highest level without the PEAK indicator, shown in red below, turning on. Adjust so the PEAK indicator light does not turn on when the...
-
Page 10: Situation 3 : Recording From Cassettes Or Md
Situation Recording from cassettes Setting Point the recording level First, check the volume setting on the playback device. If the volume is set too low, then the volume of the recording will be too low no matter how high the R-09HR input level is set. Conversely, if the volume is too high, the sound will be distorted no matter how you adjust the level on the R-09HR. - Page 11 Setting Point sound quality Use WAV format to preserve important recordings that are faithful to the source. If creating CD 16 bit/44.1 kHz For professional quality For professional quality 24 bit/96 kHz Because 16 bit/44.1 kHz is the same setting used on audio CDs, it’s ideal for burning to CD for playback on a CD player.
-
Page 12: Situation 4 : Recording Vocals
Situation Recording vocals Setting Point recording levels Have the singer sing the loudest section of the song. Since the singer may quickly tire of singing just for setting a recording level, try to deter- mine the level quickly. Remember that body temperature rises after singing for a while, and the voice can get louder. - Page 13 Setting Point the recording quality Using for vocal training and checking vocals Sounds like vocals have subtleties that are best captured by high sound quality. Since long recordings are not likely, use 16 bit/44.1 kHz or better high-quality WAV format. Keep in mind that if you use the 16 bit/44.1 kHz WAV format, you won’t need to do any conver- sions on your PC when using the recording to...
-
Page 14: Situation 5 : Recording Outdoors
Situation Recording outdoors Setting Point the recording level Set the R-09HR mic gain to HIGH when record- ing bird songs or other quiet sounds. This setting makes the microphone very sensitive so that even the smallest sounds are captured. Conversely, set the mic gain to LOW when recording nearby loud noises such as trains for proper mic sensitivity. - Page 15 Positioning Point the R-09HR It is best to plan where to point the mic by imag- ining listening to the recording later. For exam- ple, you can create a realistic feel by recording the murmuring of a brook on the right and the twittering of the birds on the left.
-
Page 16: Situation 6 : Recording Meetings
Situation Recording meetings Setting the recording Point level for meetings First, set the mic gain to HIGH. For normal every- day volumes, such as meetings, setting the mic sensitivity to HIGH is best. You can do level checks by putting the R-09HR into recording standby during the pre-meeting chatter. - Page 17 Point Setting sound quality Since the purpose of recording a meeting is to be able to hear what is being said, there is no strict requirement for good sound quality. More importantly, the recording will often be for an extended time, so MP3 is probably the best format.
-
Page 18: Application 1 : Techniques For Recording Specific Instruments
Application Techniques for recording specifi c instruments Record from the front Acoustic Guitar The acoustic guitar provides rich mid and low frequency sounds. However, if these sounds are too loud, the music may sound muffl ed. In this case, don’t change the position of the mic (which should be around the 15th or 17th fret), but change its angle so that the mic is at an angle from the neck of the guitar. - Page 19 Capture everything from behind Capture BD and SD in a direct line Piano Unlike small instruments, a piano produces sound from its entirety. Since the internal microphone is an omni- directional microphone, it’s especially good at recording a piano’s stereo sound. Position the microphone to maintain a balance between the strings and the soundboard.
-
Page 20: Application 2 : Save To A Pc
Application Save to a PC!! No problem when your SD card becomes full! You can easily save to a PC using a USB cable. Just connect the R-09HR to a PC with a USB cable, then drag and drop your fi les. You can take songs you’ ve just recorded and mail them to your friends or release them on your website or blog as you like. -
Page 21: Application 3 : Deleting Unnecessary Data On A Pc
Application Deleting unnecessary data on a PC There are many cases when you’ll want to edit the sound after recording, for example to erase the fi rst fi ve seconds that you don’t need. In these cases, you can use the included pyro Audio Creator LE to edit the recorded sound (Windows only). -
Page 22: Application 4 : Creating Cds On A Pc
Application Creating CDs on a PC For example, have you ever wanted to have someone listen to your recorded music? If so, CDs are better than cassettes. Since CD players, and CD car stereos are really common, there’s a better chance that a CD will get heard. -
Page 23: Application 5 : Techniques For Applying File Names
Application Techniques for applying fi le names Cautions when renaming fi les When backing up WAV or MP3 fi les on the PC that were recorded on the R-09HR, you can make manag- ing fi les easier by giving them easy-to-understand fi les names. Name your fi les something that’s easily recognizable, e.g., use the instrument name or place name where the recording was made. -
Page 24: Options For Recording On The R-09Hr
Options for recording on the R-09HR Cover/Stand Set ■ The R-09HR cover is a special cover that preserves the surface of the R-09HR and protects the unit from impact. The cover is design so the R-09HR can be used while it’s on. There is also a place to attach tripods on the back of the cover. - Page 25 There are many optional items (sold separately) available to help you optimize your recordings on the R-09HR. All of these items are handy when recording on the R-09HR! Stereo Microphone ■ The R-09HR internal microphone is omni-directional and picks up a wide range of sounds. It’s useful in many situ- ations.
-
Page 26: Examples Of Connecting Accessories To The R-09Hr
Connect, Expand, Record!! Examples of connecting accessories to the R-09HR Stereo Mic (CS-15) Although the R-09HR internal stereo mic is excellent, we recommend using the optional stereo mic (CS-15) when trying to record sound from a particular source. Cassette/DAT/Open reel, etc. You can record from a cassette player or a mini-combo by connecting its LINE OUT to the R-09HR LINE IN. -
Page 27: Specifications
R-09HR Specifications Recorder Part Tracks ● 2 (stereo) Signal Processing ● AD/DA conversion: 24 bits, 44.1/48/88.2/96 kHz Data Type ● <For Recording> Stereo only Format MP3 (MPEG-1 audio layer 3) Sampling Rate 44.1/48 kHz Bit Rates 64/96/128/160/192/224/320 kbps Format Sampling Rate 44.1/48/88.2/96 kHz Bit Depth 16/24 bits... - Page 28 Copyright © 2008 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION. Microsoft and Windows are registered trademarks of Microsoft Corporation. Windows® is known officially as: “Microsoft® Windows® operating system.”...
