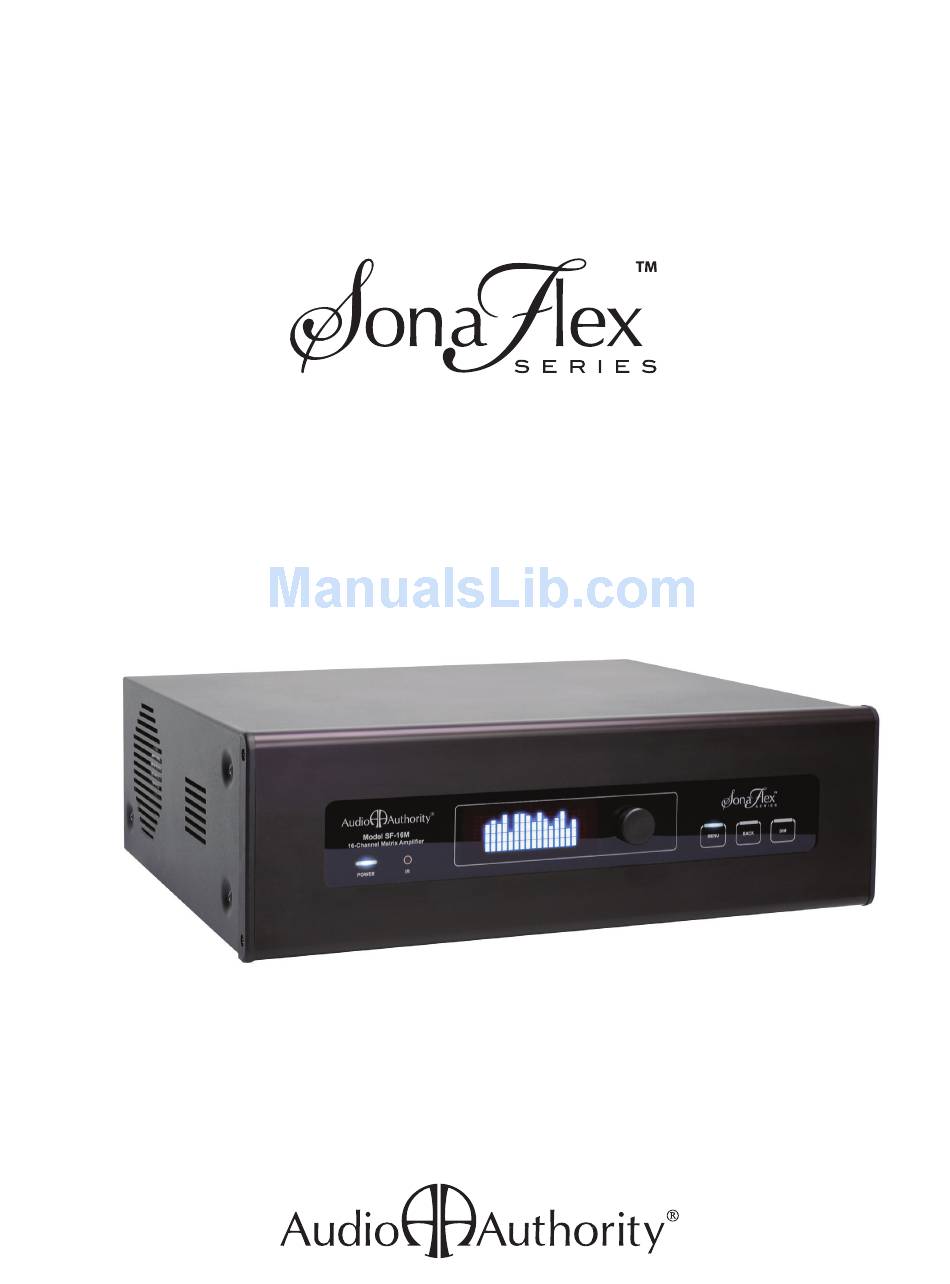

Page 1: Quick Start Guide

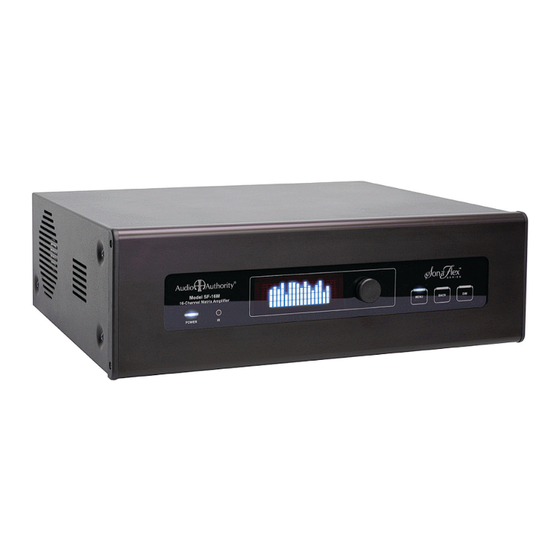

Quick Start Guide SF-16M 16-Channel Digital Matrix Amplifier... - Page 2 VOLTAGE SELECTOR VOLTAGE SELECTOR Set voltage selector Set voltage selector and install correct and install correct fuses according to fuses according to local power supply. local power supply. MAIN IR WARNING: AVERTISSEMENT: RS-232 OUT Régler le sélecteur Régler le sélecteur de tension et de tension et installer les fusibles...
- Page 3 Note: Please retain the original packing material in case the • Triggers and contact closures unit must be returned. If you find any items are missing, contact Audio Authority® immediately. Have the model • FlexPort Transmitters number and invoice available for reference when you call.
-
Page 4: Source Inputs
RCA input jack is available, a y-adapter may be used. SYSTEM TRIGGER UNIT ID LINK Audio Authority® Corp. • 2048 Mercer Rd. Lexington, KY 40511 USA SPEED ETHERNET Model SF-16M 16-Channel 800-322-8346 • 859-233-4599 • www.audioauthority.com Digital Matrix Amplifier... -
Page 5: Using The Front Panel
Using the Front Panel Basic setup and control are available via the front panel menu and controls (Figure 4). If you are using a third party controller, skip to page 6. If you need to use advanced features, see page 8. Model SF-16M 16-Channel Matrix Amplifier Figure 4. Multi-Function Knob The multi-function knob can scroll (clockwise or counterclockwise) and select or de-select (press in). The open arrow symbol is displayed when scrolling through menu items. Once an item has been selected (press the knob), the arrow fills in . Turn the knob to adjust the value. Press the knob again to de-select the menu item and scroll to the next item. Menu Key Press the menu key for access to the main menu (Figure 20). Zone Control, System Control, Source Setup, Zone Setup, System Setup. Back Key Press Back to return to a previous screen. Pressing the back button repeatedly eventually returns to the top of the main menu. Dim Key Toggles through four brightness levels for the display and key lights. After a set period of time (adjustable using the front panel or the SF-16M PC Setup Utility), the display enters a screen saver mode (dark.) SF-16M Main Menu Front Panel Control The first two items in the main menu (Figure 5) allow control of the SF-16M. -
Page 6: Third Party Control
NETWORK SF-16M AUDIO SYSTEM OVERRIDE TRIGGER UNIT ID LINK REMOTE Audio Authority® Corp. • 2048 Mercer Rd. Lexington, KY 40511 USA SPEED ETHERNET CONTROL Model SF-16M 16-Ch 800-322-8346 • 859-233-4599 • www.audioauthority.com SYSTEM Digital Matrix Ampl DB25 AUDIO INPUT CONTACT CLOSURE 5V - 24V AC / DC Figure 11. - Page 7 SF-16M Menu Tree Root Menu First Menu Subset Second Menu Subset Zone Control Zone Volume Source Loudness Bass Treble System Control Groups* Group 1-10 Volume Source Overrides* 1-14 ON/OFF, Priority Scenes* Activate Scene 1-10 Source Setup (Including Flexport) Sources 1-20 Gain Stereo/Mono All Stereo All Mono Zone Setup Stereo/Mono Setup Outputs 1-16 Output Zones Output 1-16 All to one Zone Volume Settings Zone Volume Maximum Power ON Volume Maximum Power ON Volume Minimum...
-
Page 8: Advanced Features
Advanced Features Many of the advanced features are used only with third party controllers. The PC Setup Utility SONAFLEX is the most efficient way to set up SF-16M advanced features, and provides an easy way to • VIDEOS save an archive of each configuration to work on off-site, or for backup. For more detail, see • FAQ video tutorials at www.audioauthority.com/sonaflex_tip4. The following settings can only be • TUTORIALS configured using Ethernet/serial commands or the PC Setup Utility (not front panel controls): Advanced DSP (EQ) *Groups Set a filter type for each zone. • Group Naming (1-10) • Bypass (B) no filter (default setting) • Select Zones to include in each of 10 Groups. • High Pass (HP) *Scenes • Low Pass (LP) • High Shelf (HS) • Scene Naming (1-10) • Low Shelf (LS) • ON/OFF select (default OFF) • Parametric (P) • Volume level Frequency attenuation • Source selection • 1 Hz - 20KHz • Power (ON/OFF) -
Page 9: Front Panel Descriptions
Control knob BACK PANEL DESCRIPTIONS AUDIO SYSTEM OVERRIDE TRIGGER UNIT ID LINK Audio Authority® Corp. • 2048 Mercer Rd. Lexington, KY 40511 USA SPEED ETHERNET Model SF-16M 16-Channel 800-322-8346 • 859-233-4599 • www.audioauthority.com Digital Matrix Amplifier 4002715 RS-232 IN DB25 AUDIO INPUT... -
Page 10: Firmware Update Procedure
Set Up Zones and Groups Zones and Groups are useful for front panel control of SonaFlex speaker outputs – they are not compatible with third party controllers, which have their own methods of controlling multiple outputs at once. Each Zone may contain one or many speaker outputs, which can be mono and/or stereo. Zones may not overlap. Groups can contain one or many Zones, and their members can overlap, as shown in Figure 14. SPEAKER OUTPUTS ZONE 1 ZONE 2 ZONE 3 ZONE 4 DINING RM LOBBY PATIO GROUP 1 INTERIOR GROUP 2 EXTERIOR Figure 14. In this restaurant example, the speaker outputs are divided into Zones, and two Groups include overlapping members. - Page 11 SYSTEM CONNECTION AND PLANNING WORKSHEET Unit #: 1 Source Inputs: Mono Mono R R L Mono L Mono R R L Mono L Mono R R L Mono L Mono R R FlexPort Inputs: Mono Mono R R Speaker Outputs: Zone Zone Mono...
-
Page 12: Limited Warranty
SF-16M Specifications Updated July 15, 2013. Power Per Channel (All Channels Driven): 50W @ 8 Ohms Frequency Response: 20Hz to 20kHz, +/- 0.55 dB into 8 Ohms Full Power Bandwidth: 20Hz to 20kHz S/N Ratio: 96dB Channel Separation: 70dB (channel to channel @1kHz) THD+N: <0.3% @ full power output IMD: <0.5% @ full power output Input Sensitivity: 0.5Vrms Input Impedance: 20k Ohms Audio Clock Frequency: 96KHz Output Clock Frequency: 385KHz Output Protection: Short Circuit, Over-Temperature, Overload Line Voltage & Frequency: 100-120VAC 50-60Hz Power Consumption: 1125W continuous, 1280W for 2 minutes Maximum Current Draw: 10A RMS Heat Output: 1109BTU/Hr. maximum Dimensions (H x W x D): 5.22” x 16.60” x 14” Net Weight: 41 lb. Shipping Weight: 49 lb.
