UNI-T UT361 Operating Manual

UT361/362
Anemoscopes
Overview

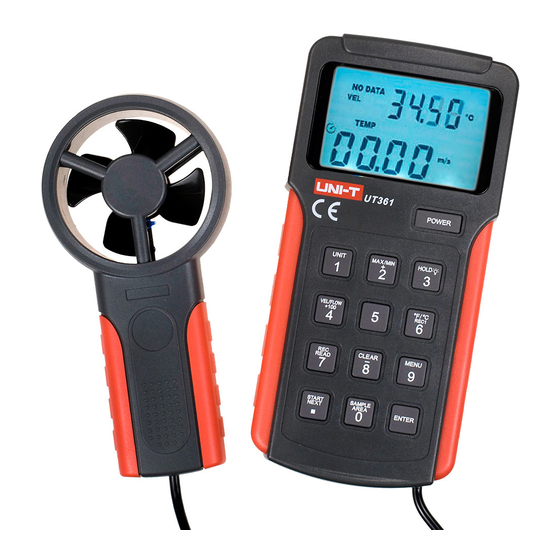

UT361 and UT362 Anemoscopes are designed with built-in high precision
thermistor as air temperature sensor and a highly durable ruby vane ring to
maintain accurate and stable measurements, and also offer 8-digit micro-
processor for data processing. The instrument measures real-time air velocity
(m/s, km/h, ft/min, mph, knots), air flow(CFM, CMM) and air temperature( / ).
It also comes with remarkable features: dual display (Vel+Temp, Flow+Temp),
Max/Min/Average, data hold, data storage up to 2044 sets, auto power off,
PC communication (UT362 only).
This Operating Manual covers information related to the safe operation of
the Anemoscope. Please read the relevant information carefully and observe
all the Warnings and Notes strictly.
Warning
To avoid electric shock or personal injury, read the "Safety Information"
carefully before using the Anemoscope.
Unpacking Inspection
Open the package case and take out the Meter. Check the following items
carefully for any missing or damaged part:
Item Description
1 pc
1 English Operating Manual
2 USB Interface Cable (UT362) only 1 pc
3 Software (UT362) only 1 pc
4 9 V Battery Software 1 pc
In the event you find any missing or damaged item, please contact your dealer
immediately.
Safety Information
In this manual, a Warning identifies conditions and actions that pose hazards
to the user, or may damage the anemoscopes or the equipment under test.
A Note identifies the information that user should pay attention to.
Warning
To avoid possible electric shock or personal injury and to avoid possible damage
to the anemoscopes or to the equipment under test, adhere to the following rules
Before using the anemoscopes inspect the case,do not use the anemoscopes
if it is damaged or the case (or part of the case) is removed. Look for cracks
or missing plastic． Pay attentions to the insulation around the connections.
Do not touch the vane of the fan and the temperature sensor that are all
sensitive parts of the anemoscope, for it may affect normal operation of the
instrument.
Replace the battery as soon as the battery indicator
If the anemoscope works abnormally, please stop using it and have it serviced
by nearby service center.
Do not use the anemoscopes in an environment of explosives, humidity, inflam
-mables. The performance of the anemoscopes may deteriorate after dampened.
Use the specific authorized replacement part if you need to repair the
anemoscopes
Do not use the anemoscope with the housing or cover opened.
Note the battery " + " and " - "pole when installing the battery.
The following conditions or actions may cause damage to the anemoscope,
please take caution when using the anemoscope.
Select the appropriate wind speed before use, it may avoid overloading
damage to the vane of the anemoscope fan(0~30m/s) under the unknown
scenarios.
Select the temperature meaning in 0
damage caused by the high temperature.
Do not try to recharge the battery.
The Anemoscope Structure (See Figure 1)
Display Symbols (See Figure 2)
Qty
The table below offers information about the display symbols.
Number Sign
1 MAX
2 MIN
3
4 AVE
5 READ
6 REC NO.
7 USB
8 VEL
appears．
to 40 in order to avoid any fan
Fan
1
2 Wind Speed Indicator
Handle
3
Secondary Display
4
Primary Display
5
Power Button
6
Operational Keypad
7
Main Unit
8
Figure 1
Figure 2
Meaning
Display of Maximum Reading
Display of Minimum Reading
Data Hold is on
Display of Average Reading
Reading Recorded Data is in Progress
Recording Data Number
USB is on
Air Velocity Measurement
9 The battery is Low
10 Secondary Data Display
Primary Data Display
11
12 ft/min Air Velocity Unit - Feet Per Minute
Air Velocity Unit - Meter Per Second
13 m/s
14 / Temperature Unit
Cubic Feet Per Minute
15 CFM
16 CMM Cubic Meter Per Minute
17 KNOTS Knots Per Hour
Miles Per Hour
18 MPH
Keypad Description (See Figure 3)
Function Key
Long press to power on;
Short press to power off.
To switch the units for air
velocity and flow. In velocity
mode, press the button to
In air flow mode, press to
select between CFM and
CMM units.
Figure 3
Function Key Description
In air velocity mode, it is used to switch from Max, Min to Real-
Time values;
In air flow mode, it is used to switch from Max to Min, Average,
2/3V Max. and Real-Time values;
In setup status, it is to add quickly.
Press once to enter the Hold mode. Press it again to
exit Hold mode. Long press press to open the backlight.
To switch between air velocity and flow measurement modes.
When viewing record data, it jumps on every 100 sets of data.
Download data through USB port (For UT362 only)
To switch from and temperature unit. When viewing data
in the memory, it's used to obtain the first recorded data.
Short press to record current measured reading; Long press to
read the data in the memory.
Press and hold the button while turning on the anemoscope, all
recorded data in the memory will be cleared; When viewing the
recorded data, it's used to subtract quickly.
It is a functional menu button. Press and Hold it to configure the
anemoscope.
In air flow mode, it's used to move the decimal point randomly
when entering the Area value. START refers to decimal point
after the first input digit, NEXT is to move the decimal point for
next digit.
To set up the Area in air flow mode.
Confirmation key. See "Setting the Anemoscope"
Note:0~9 numeric buttons are used to key in Area value settable within 0.000
~9999 during air flow measurement.
Description
