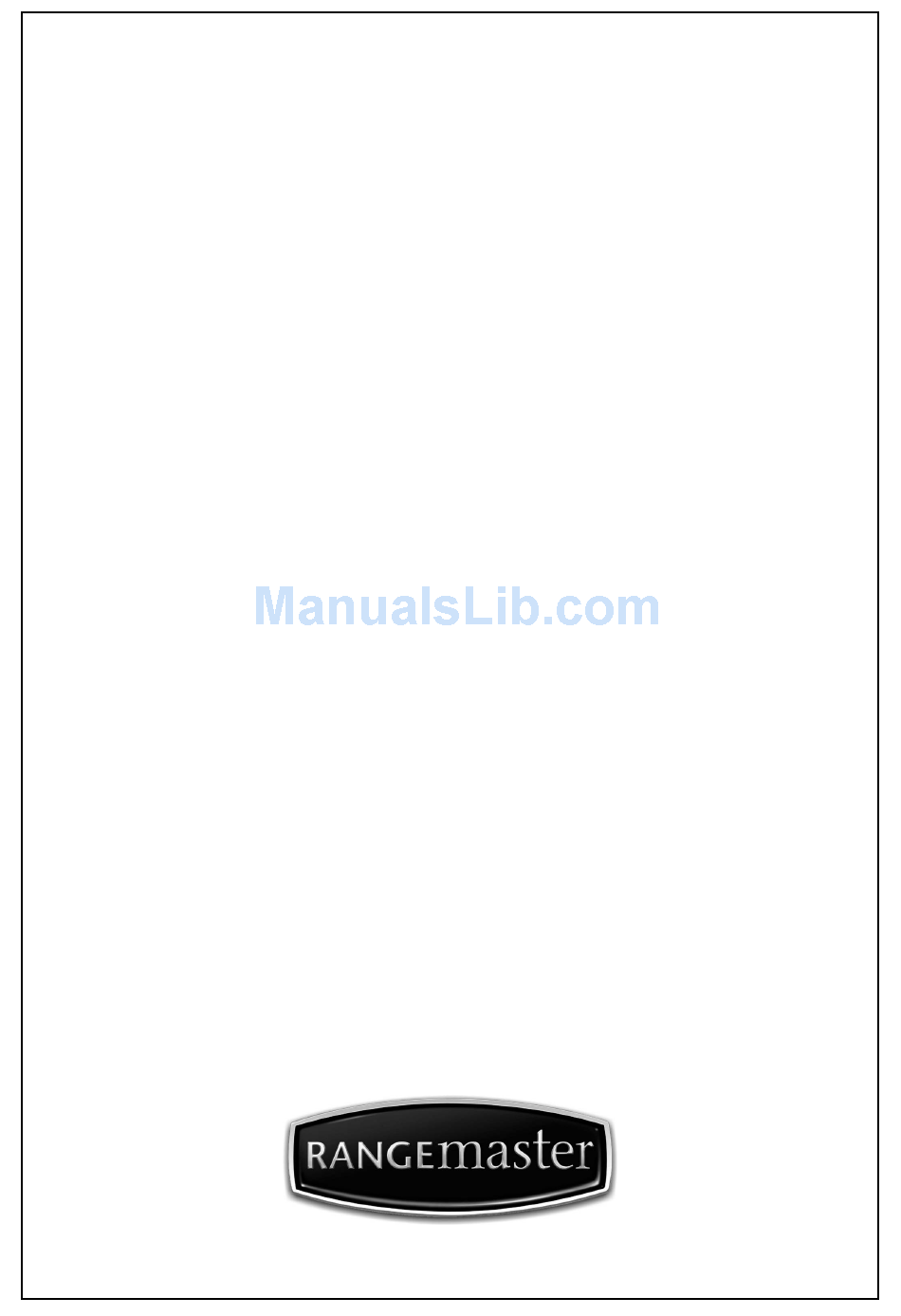

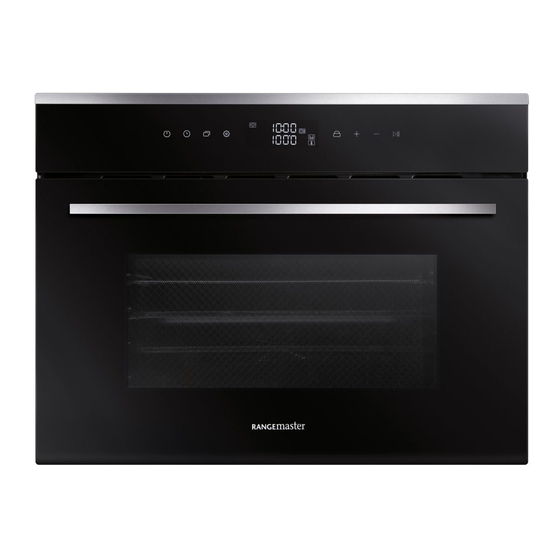

    RMB45SCBL/SS User Guide & Installation & Service Instructions U110609 - 04...

  • Page 2: Table Of Contents

    Contents Before You Start... Installation Installation and Maintenance Dear Installer Before First Use Location of the Oven Personal Safety Electrical Connection Cleaning Circuit Diagram Oven Overview Technical Data Setting the clock for the first time Warranty/After Sales Service Changing the time Water Level Steam Setting the delayed start for the Steam...

  • Page 3: Before You Start... 1 3. Installation

    Before You Start... Personal Safety Thank you for buying a Rangemaster Steam Oven. It should give you many years trouble-free cooking if installed and Accessible parts will become hot during use and will operated correctly. It is important that you read this section retain heat even after you have stopped cooking.

  • Page 4: Cleaning

    or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children less than 8 years of age should be kept away unless continuously supervised. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

  • Page 5: Oven Overview

    Oven Overview Fig. 2.1 Fig. 2.2 The steam oven (Fig. 2.1) has a 8-function oven cavity with a touch sensitive control panel. Key: Fig. 2.2 Key: Fig. 2.1 Function Display Standby button Steam Clock 10. Child Lock Controls Timer Fish Function Adjustment Roast 11.

  • Page 6: Setting The Clock For The First Time

    Setting the clock for the first time Changing the time Step 1. Firmly press the Step 2. Firmly press the Step 1. Set the hour by pressing the +. "Standby" button. setting button. Step 3. Increase the hour. Step 2. Decrease the hour. Step 3.

  • Page 7: Water Level

    It is not recommended to open the door while the steam Water tank lid Fig. 2.3 oven is in use. However when opening the oven door stand well back and allow any steam to disperse. Take care that no water seeps into the appliance. Water Level A full water tank will generally cook for 60 - 70 minutes.

  • Page 8: Steam

    Steam Step 1. Firmly press the "Standby" button. Step 7. Decrease temperature. Step 2. Overview of the display Step 8. Increase temperature. Water level (Full) Steam Time Temperature Temperature Cooking duration Step 3. Press the “Timer” symbol to set the cooking Step 9.

  • Page 9: Setting The Delayed Start For The Steam

    Setting the delayed start for the Steam Step 1. Firmly press the "Standby" button. Step 7. Increase temperature. Step 8. After setting your desired parameters. Press the Step 2. Press the “Timer” symbol to set the cooking "Timer" button twice to set the delayed start. duration.

  • Page 10: Meat

    Meat Table 2.1 Meat. Step 1. Firmly press the "Standby" button. Step 7. Increase time. Step 8. Press Start / Pause. If no button is pressed while the Step 2. Press the “+” button to select the “Meat” feature. CH9 is showing, it will operate after 60 secs. CH9 is a reminder to use fresh water.

  • Page 11: Setting The Delayed Start For The Meat

    Setting the delayed start for the Meat Table 2.1 Meat. Step 7. After setting your desired parameters. Press the Step 1. Firmly press the "Standby" button. "Timer" button twice to set the delayed start. Step 2. Press the “+” button to select the “Meat” feature. Step 8.

  • Page 12: Fish

    Fish Table 2.2 Fish Step 1. Firmly press the "Standby" button. Step 7. Increase time. Step 8. Press Start / Pause. If no button is pressed while the Step 2. Press the “+” button to select the “fish” feature. CH9 is showing, it will operate after 60 secs. CH9 is a reminder to use fresh water.

  • Page 13: Setting The Delayed Start For The Fish

    Setting the delayed start for the Fish Table 2.2 Fish. Step 7. After setting your desired parameters. Press the Step 1. Firmly press the "Standby" button. "Timer" button twice to set the delayed start. Step 8. Decide when the cooking will start. Step 2.

  • Page 14: Vegetables

    Vegetables Table 2.3 Vegetables Step 1. Firmly press the "Standby" button. Step 7. Increase time. Step 8. Press Start / Pause. If no button is pressed while the Step 2. Press the “+” button to select the CH9 is showing, it will operate after 60 secs. “vegetables”...

  • Page 15: Setting The Delayed Start For The Vegetables

    Setting the delayed start for the Vegetables Table 2.3 Vegetables Step 7. After setting your desired parameters. Press the Step 1. Firmly press the "Standby" button. "Timer" button twice to set the delayed start. Step 2. Press the “+” button to select the Step 8.

  • Page 16: Grill (Steam)

    Grill (steam) Step 7. Press the "Function" button to adjust the Step 1. Firmly press the "Standby" button. temperature parameters. Step 2. Press the “+” button to select the “grill” feature. Step 8. Decrease temperature. Step 3. Overview of the display Step 9.

  • Page 17: Setting The Delayed Start For The Grill (Steam)

    Setting the delayed start for the Grill (steam) Step 6. After setting your desired parameters. Press the Step 1. Firmly press the "Standby" button. "Timer" button twice to set the delayed start. Step 7. Decide when the cooking will start. Step 2.

  • Page 18: Pizza

    Pizza Table 2.4 Pizza Step 1. Firmly press the "Standby" button. Step 7. Press Start / Pause. If no button is pressed while the CH9 is showing, it will operate after 60 secs. CH9 is a reminder to use fresh water. Step 2.

  • Page 19: Setting The Delayed Start For The Pizza

    Setting the delayed start for the Pizza Table 2.4 Pizza Step 6. After setting your desired parameters. Press the Step 1. Firmly press the "Standby" button. "Timer" button twice to set the delayed start. Step 2. Press the “+” button to select the “pizza” Step 7.

  • Page 20: Defrost

    Defrost NOTE: At the end of each cooking process the oven will emit 3 beeps every 30 seconds for five minutes or until the oven Step 1. Firmly press the "Standby" button. door is open or when you press the Start / Pause. NOTE: The default temperature setting is between 50°C and 60°C.

  • Page 21: Setting The Delayed Start For The Defrost

    Setting the delayed start for the Defrost Step 6. After setting your desired parameters. Press the Step 1. Firmly press the "Standby" button. "Timer" button twice to set the delayed start. Step 7. Decide when the cooking will start. Step 2. Press the “+” button to select the “Defrost” feature. Step 3.

  • Page 22: Disinfecting

    Disinfecting Table 2.5 Disinfecting Step 1. Firmly press the "Standby" button. Step 7. Increase time. Step 2. Press the “+” button to select the “Descaling” feature. Step 8. Press Start / Pause. If no button is pressed while the CH9 is showing, it will operate after 60 secs. 100°C and the code r1 will alternate CH9 is a reminder to use fresh water.

  • Page 23: Setting The Delayed Start For The Disinfecting

    Setting the delayed start for the Disinfecting Table 2.5 Disinfecting Step 7. After setting your desired parameters. Press the Step 1. Firmly press the "Standby" button. "Timer" button twice to set the delayed start. Step 2. Press the “+” button to select the “Descaling” feature. Step 8.

  • Page 24: Child Lock

    Child Lock Step 1. To activate or deactivate press Child Lock for 3 seconds. An alram will sound to confirm to confirm activation or deactivation. Pause during cooking Step 1. To stop or pause the cooking process press Start / Pause button.

  • Page 25: Cleaning And Maintenance

    Cleaning and Maintenance Descaling Before cleaning your oven or performing maintenance, please switch off the power supply. Step 1. Press the two buttons together as shown in In order to prolong the service life of steam oven, please note the following points: •...

  • Page 26: Troubleshooting

    Troubleshooting Interference with and repairs to the steam oven MUST NOT be carried out by unqualified persons. DO NOT try to repair the steam oven as this may result in injury and damage to the steam oven. Please arrange for repair by a suitably competent person.
  • Page 27 The oven light is not working Fig. 2.6 If the steam oven is operating as normal, the likelihood is the bulb is out. Remove all shelves and the grill pan from the oven. Gently unclip the side rack from its lower locating stud and unhook its top to remove it.
  • Page 28 The control settings and cooking times given in the tables are intended to be used AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a preferred result. Program Type of meat Temperature (°C) Time (min) Container Level Chicken Breast...
  • Page 29 Disinfecting Temperature Time Description Comments Container Level Program (°C) (min) Plate Dishes Rack Remove lid from Ready-made Meals/Frozen container and put Rack on rack. Beans Rack Disinfection time and temperature Cherries Rack according to 1 litre capacity. Plums Rack Baby Bottles Rack Table 2.5 Disinfecting Display...

  • Page 30: Installation And Maintenance 1 Dear Installer

    INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Installation DocNo.064-0003 - Installation - R6012 oven Location of the Oven Dear Installer The oven may be installed in a kitchen/kitchen diner but Before you start your installation, please complete the details. NOT in a room containing a bath or shower.
  • Page 31 INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. min 500 cm min 500 min 500 cm 500 cm NOTE: 466 mm with mains connector (20 mm). NOTE: 466 mm with mains connector (20 mm). All dimensions in mm unless otherwise shown...
  • Page 32 INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. DO NOT use the handle to lift the oven...

  • Page 33: Personal Safety 1 Electrical Connection

    INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Electrical Connection DOUBLE POLE SWITCHED Fig. 3.1 FUSE SPUR OUTLET This appliance must be installed by a qualified electrician to comply with the relevant Institution of Engineering and Technology (I.E.T.) regulations and also the local electricity supply company requirements.

  • Page 34: Circuit Diagram

    Circuit Diagram...

  • Page 35: Technical Data

    595 mm Depth 454 mm 475 mm + 15 mm mains connector Mass (kg) Data Brand Rangemaster Model identification RMB45SCBL/SS Type of drawer Electric Number of cavities Volume Litres Max load 33.0 Maximum total electrical load at 230 V 1.550 kW...

  • Page 36: Warranty/After Sales Service

    Warranty/After Sales Service DocNo.111-0003 Warranty No.10 If consultation or technical assistance is needed, please provide the local authorised service agent with the purchase invoice and the product code/serial number. The 2 years free maintenance for the operation of the appliance started from the date of purchase of this product. Any cosmetic damage to the appliance must be reported within 90 days of delivery.
  • Page 37 NOTE...
  • Page 38 NOTE...
  • Page 39 NOTE...
  • Page 40 Clarence Street, Royal Leamington Spa, Warwickshire, CV31 2AD, England. Tel: +44 (0) 800 8046261 E-mail: consumers@agarangemaster.co.uk...
