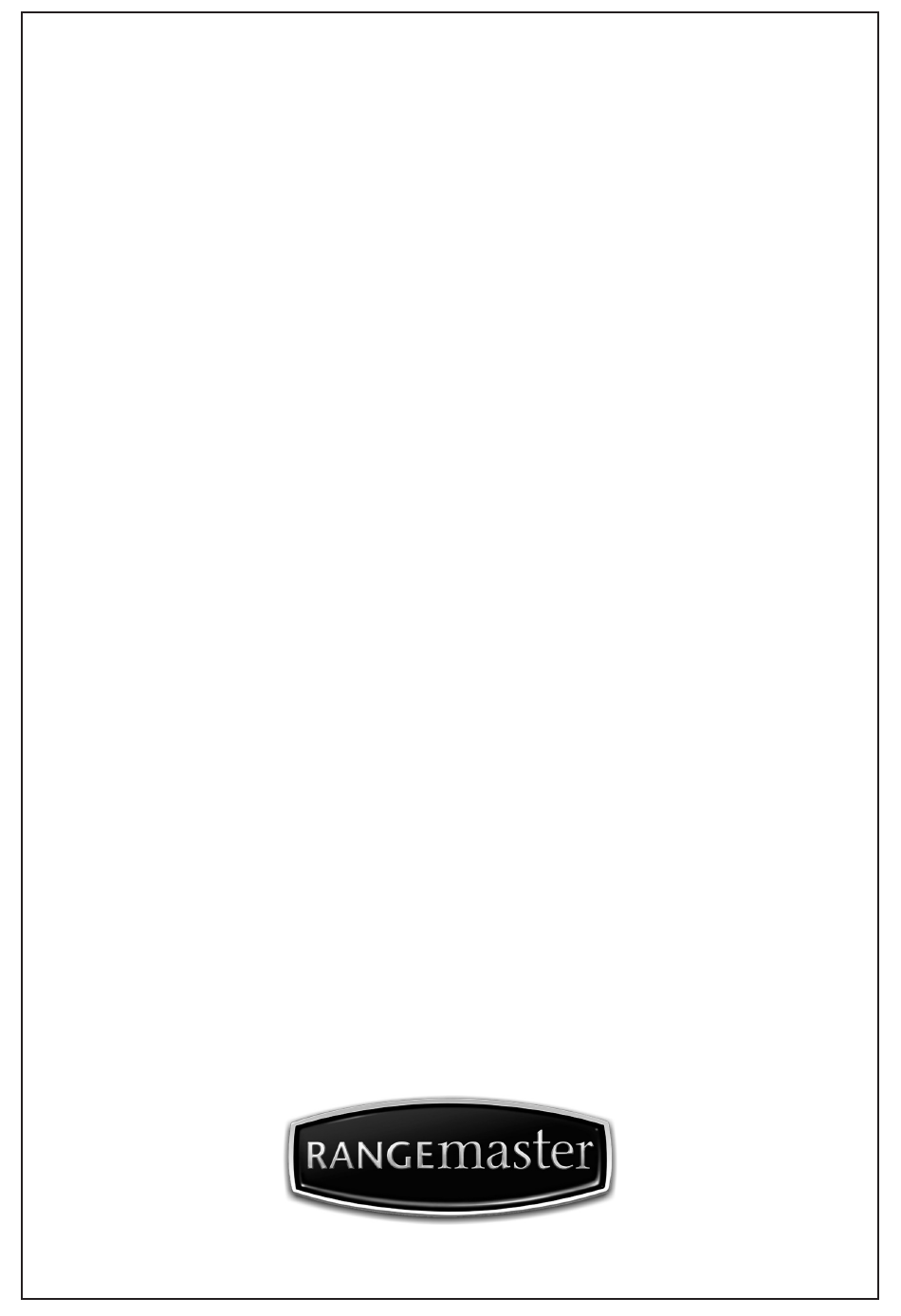

  • Page 1 RMB45SCBL/SS User Guide & Installation & Service Instructions U110609 - 02...

  • Page 3: Table Of Contents

    Contents Before You Start... Oven Overview Installation Circuit Diagram Technical Data Warranty/After Sales Service...

  • Page 5: Before You Start

    1. Before You Start... Personal Safety Thank you for buying a Rangemaster Steam Oven. It should give you many years trouble-free cooking if installed and Accessible parts will become hot during use and  operated correctly. It is important that you read this section...
  • Page 6 or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children less than 8 years of age should be kept  away unless continuously supervised. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

  • Page 7: Oven Overview

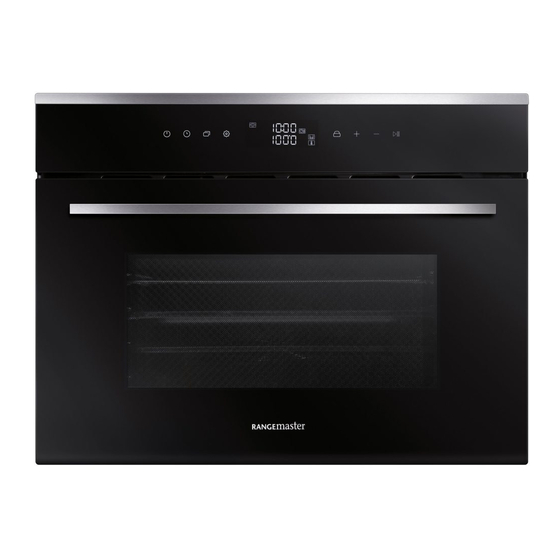

    2. Oven Overview Fig. 2.1 Fig. 2.2 The steam oven (Fig. 2.1) has a 8-function oven cavity with a touch sensitive control panel. Key: Fig. 2.2 Key: Fig. 2.1 Function Display ON /OFF button Steam Clock Timer Controls Fish 10. Child Lock Steam Oven Function Adjustment 11.
  • Page 8 Setting the Clock Fig. 2.2 The first time you switch on the steam oven the clock display will flash. Modify the hours by using the “+” or “-” buttons to set the correct hour Fig. 2.2. Press Set/Confirm button to confirm the hour and to set the minutes Fig.
  • Page 9 Functions Fig. 2.9 In standby mode, press On/Off button for 1 second. Choose a function by pressing the “+” or “-” buttons Fig. 2.8. Once a function has been selected it will display the default cooking time and the preset parameter e,g, program, temperature, weight, etc.) Steam Fig.
  • Page 10 2.14. Once the cooking ends press the “+” or “-” button Fig. 2.15 to revert back to standby mode. Vegetables Follow Functions, Step 1 and select Vegetable function, the screen will display 20:00 minutes, the 100°C and the code A1 will alternate Fig. 2.15. Press the Function Adjustment button Fig.
  • Page 11 Pizza Fig. 2.19 Follow Functions, Step 1 and select Pizza function, the screen will display 200g Fig. 2.19. Press the Function Adjustment button and use the “+” or “-” button to set the weight of the pizza. The weight of the pizza can be set between 100g - 800g Fig.
  • Page 12 Delayed Start (Automatic) Fig. 2.25 Choose your function and set the cooking duration. Press Timer, the Delay Time icon, the current time and “AUTO” will appear Fig. 2.25. Use the “+” or “-” key to set the hours start. Press Timer and use the “+”...
  • Page 13 Descaling Fig. 2.28 Descale the steam oven depends on the hardness of your water. If you use the steam oven every week for more then 30 minutes, we suggest you descale every 6 months. Press the two buttons together as shown in Fig. 2.28. The screen will display “ENTER CAL”.
  • Page 14 Troubleshooting Interference with and repairs to the steam oven  MUST NOT be carried out by unqualified persons. DO NOT try to repair the steam oven as this may result in injury and damage to the steam oven. Please arrange for repair by a suitably competent person.
  • Page 15 The oven light is not working Fig. 2.30 If the steam oven is operating as normal, the likelihood is the bulb is out. Remove all shelves and the grill pan from the oven. Gently unclip the side rack from its lower locating stud and unhook its top to remove it.
  • Page 16 The control settings and cooking times given in the tables are intended to be used AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a preferred result. Program Type of meat Temperature (°C) Time (min) Container Level Chicken Breast...
  • Page 17 Temperature Time Program Type of food Comments Container Level (°C) (min) Plate Dishes Rack Remove lid Ready-made Meals/ from container Rack Frozen and put on rack. Disinfection Beans Rack time and Cherries Rack temperature according to 1 Plums Rack litre capacity. Baby Bottles Rack Table 2.5...

  • Page 18: Installation

    INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. 3. Installation DocNo.064-0003 - Installation - R6012 oven Dear Installer Installer’s Name Before you start your installation, please complete the details BELOW. If your customer has a problem relating to your installation they will be able to contact you easily.
  • Page 19 INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. All dimensions in mm unless otherwise shown...
  • Page 20 INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. DO NOT use the handle to lift the oven ...
  • Page 21 INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Electrical Connection DOUBLE POLE SWITCHED Fig. 3.2 FUSE SPUR OUTLET This appliance must be installed by a qualified electrician to comply with the relevant Institution of Engineering and Technology (I.E.T.) regulations and also the local electricity supply company requirements.

  • Page 22: Circuit Diagram

    4. Circuit Diagram...

  • Page 23: Technical Data

    Housing Height 572 - 580 Width 560 - 568 Depth Data Brand Rangemaster Model identification RMB45SCBL/SS Type of drawer Electric Number of cavities Volume Litres Max load 33.0 Maximum total electrical load at 230 V 1.550 kW (approximate total including, oven lights, power steam/oven etc.)

  • Page 24: Warranty/After Sales Service

    6. Warranty/After Sales Service DocNo.111-0003 Warranty No.10 If consultation or technical assistance is needed, please provide the local authorised service agent with the purchase invoice and the product code/serial number. The 2 years free maintenance for the operation of the appliance started from the date of purchase of this product.
  • Page 25 Clarence Street, Royal Leamington Spa, Warwickshire, CV31 2AD, England. Tel: +44 (0) 800 8046261 E-mail: consumers@agarangemaster.co.uk...
