Summary of Contents for Rangemaster RMB7245BL/SS

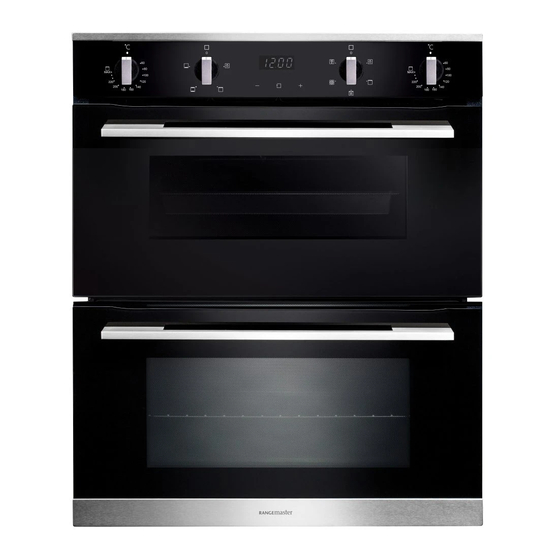

- Page 1 RMB7245BL/SS Electric Oven User Guide & Installation & Service Instructions U110599-04...
-
Page 2: Table Of Contents
Contents Before You Start... Troubleshooting Installation and Maintenance 10. Installation Electrical Safety Dear Installer Before First Use Location of the Oven Personal Safety Positioning the Oven Cleaning Provision for Ventilation Oven Overview Electrical Connection Levelling Function Overview Customer Care Lower Oven Function Modes 11. -
Page 3: Before You Start
Before You Start... • Before electrical reconnection, check that the appliance Thank you for buying a Rangemaster appliance. It should give you many years trouble-free cooking if installed and operated is electrically safe. correctly. It is important that you read this section before you The appliance should be powered down before start. -
Page 4: Cleaning
Cooking high moisture content foods can create a Fig. 1.1 ‘steam burst’ when the oven door is opened. When opening the oven stand well back and allow any steam to disperse (Fig. 1.1). When the oven is on, DO NOT leave the oven door open for longer than necessary. -
Page 5: Oven Overview
Oven Overview DocNo.024-0005 - Overview - R9049 oven Fig. 2.1 Top OvenOven Light Grill Conventional Base Heat Lower Oven (Programmable) Oven Light ArtNo.325-0014 - BI oven R9049 Grill Fanned Grill Fan Oven Defrost Checking the Parts • 6x woodscrews (4 mm x 25 mm) Top Oven •... -
Page 6: Function Overview
Function Overview Lower Oven Function Modes Top Oven Function Modes No Function Mode Selected Oven Light The oven light will operate on all selected function. Oven Light Grill The oven light will operate on all selected function. This function radiates the heat from the grill element and the top element. -
Page 7: Programming Overview
Programming Overview Oven Shelf levels Fig. 4.1 Always count shelf levels from the bottom upwards (Fig. 4.1) When correctly installed, your product will meet all safety requirements laid down for this type of product. However, special care should be taken around the rear or the underneath of the appliance as these areas are not designed or intended to be touched and may contain sharp or rough edges that... -
Page 8: Setting The Time
Setting the time Changing the time Once the appliance is connected and switched on, the display If the clock time needs to be reset or adjusted, please follow will start to flash. The clock must be set to the time of day the procedure below. -
Page 9: Setting The Minute Minder
Setting the minute minder The minute minder can be used when the oven is switched on or off. It can be set for up to 23 hours and 59 minutes. Step 1. Press “Menu” button 3x until the minute minder indicator flashes. -
Page 10: Setting The Semi-Automatic Cooking On The Lower Oven
Setting the Semi-automatic cooking on the lower oven The lower oven can be set to switch off automatically with a preset time of 10 hours. Cannot be used on the top oven. Step 1. Select the function and temperature for the lower Step 6. -
Page 11: Setting The Automatic Cooking (Delayed Start) On The Lower Oven
Setting the Automatic cooking on the lower oven (Delayed Start) The lower oven can be set to switch off automatically with a preset time of 10 hours. Cannot be used on the top oven. Step 6. Calculate the time for the cooking to finish. Press Step 1. -
Page 12: Cooking Tips
Cooking Tips Tips on Cooking with the Timer General Oven Tips If you want to cook more than one dish, choose dishes that The wire shelves should always be pushed firmly to the back require approximately the same cooking time. However, of the oven. -
Page 13: Cooking Table
Cooking Table The oven control settings and cooking times given in the table below are intended to be used Top (T) AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a preferred result. ArtNo.050-0007 Centre (C) Oven shelf positions Food is cooked at lower temperature in a fan oven than in a conventional oven. -
Page 14: Cleaning Your Oven
Cleaning Your Oven Essential Information Allow the oven to cool and isolate the electricity supply before carrying out any thorough cleaning and maintenance. Never use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. Do not mix different cleaning products –... -
Page 15: Oven
Removing the Oven Door Fig. 7.1 To aid cleaning and to make access to the oven cavity easier, the oven door can be removed. Open the door to the full extent. Unlock the locking ArtNo.325-0001 - BI oven door hinges clips on both the left and right hinges (Fig. -
Page 16: Changing The Bulb
Changing the bulb Fig. 7.5 Oven light Fig. 7.5 You can buy a replacement bulb (which is not covered under ArtNo.324-0005 Oven light bulb the warranty) from a good electrical shop. Ask for a 15 W – 230 V lamp, FOR OVENS. It must be a special bulb, heat resistant to 300 °C. -
Page 17: Oven Shelves
Oven Shelves Removing the runners in the oven Check the oven is cool and switched off. Open the oven door. Remove all shelves for either the top oven (Fig. 8.1) or main oven (Fig. 8.3). Slightly squeeze the bottom two row of the runner under the screw. -
Page 18: Troubleshooting
Troubleshooting DocNo.054-0001 - Troubleshooting BI oven Steam is coming from the oven. Oven temperature getting hotter as the cooker gets older. When cooking foods with a high water content (e.g. oven If turning the temperature down using the oven control knob chips) there may be some steam visible at the top of the door. -
Page 19: Installation
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. 10. Installation Dear Installer Location of the Oven Before you start your installation, please complete the details The oven may be installed in a kitchen/kitchen diner but NOT below. -
Page 20: Positioning The Oven
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Positioning the Oven Provision for Ventilation If installing below an existing hob the gas connection must Failure to allow adequate ventilation to the appliance may be on the right-hand side as shown in Fig. 10.1 from the rear result in overheating or damage to adjacent units and could of the hob. - Page 21 INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Fig. 10.1 IMPORTANT If installing below an existing hob the gas connection must be on the right-hand side as shown in Fig. 10.1 from the rear of the hob. Right-hand Gas Connection Fig.
- Page 22 INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Fig. 10.3 Fig. 10.4 IMPORTANT IMPORTANT If installing the base panel leave a space as indicated in Stand away from louvers positioned below the control Fig. 10.4 to allow for air circulation. panel.
-
Page 23: Electrical Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Electrical Connection This appliance must be installed by a qualified electrician to comply with the relevant Institute of Engineering and Technology (I.E.T.) regulations and also the local electricity supply company requirements. -
Page 24: Circuit Diagram
• DocNo.094-0004 - Circuit diagram R9044 oven 11. Circuit Diagram Light Heat dissipation fan Lamp 45°C Temperature adjust 45°C Temperature adjust Thermostat switch Top Grill Back Grill Electronic timer Circulation fan Junction Box 110°C Temperature adjust Light Lamp Thermostat switch Top Grill Boltom Grill Temperature adjuster... -
Page 25: Technical Data
Dimensions Oven (excluding front frame) Oven (including front frame) Height Width Depth Oven Data Brand Rangemaster Model identification RMB7245BL/SS Type of oven Electric Mass 51.5 Number of cavities Top Oven Efficiency Fuel type Electric Cavity type *Drop Down Door Multifunction*... -
Page 26: Warranty/After Sales Service
13. Warranty/After Sales Service DocNo.111-0003 Warranty No.10 If consultation or technical assistance is needed, please provide the local authorised service agent with the purchase invoice and the product code/serial number. The 2 years free maintenance for the operation of the appliance started from the date of purchase of this product. - Page 27 Notes...
- Page 28 Notes...
- Page 29 NOTE...
- Page 30 NOTE...
- Page 31 NOTE...
- Page 32 Clarence Street, Royal Leamington Spa, Warwickshire, CV31 2AD, England. Tel: +44 (0) 800 8046261 E-mail: consumers@agarangemaster.co.uk...
