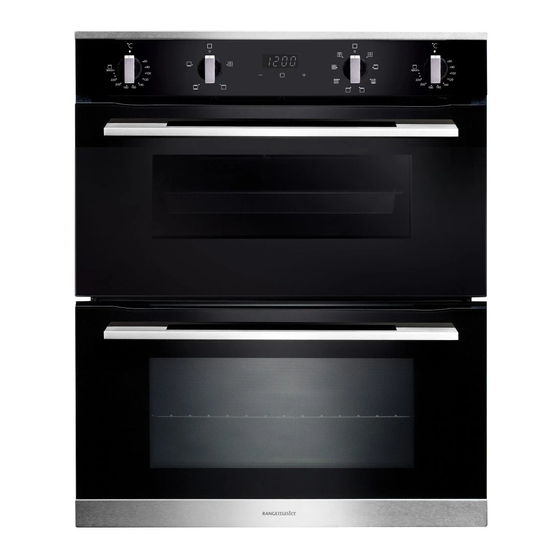

Page 1: Electric Oven
RMB7248BL/SS Electric Oven User Guide & Installation & Service Instructions U110598-01... -
Page 3: Table Of Contents
Contents Before You Start... Oven Overview Function Overview Programming Overview Cooking Tips Cooking Table Cleaning Your Oven Oven shelves Troubleshooting 10. Installation 11. Circuit Diagram 12. Technical Data 13. Warranty/After Sales Service... -
Page 5: Before You Start
1. Before You Start... Thank you for buying a Rangemaster oven. It should give you Use dry oven gloves when applicable – using damp many years trouble-free cooking if installed and operated gloves might result in steam burns when you touch a correctly. -
Page 6: Oven Overview
2. Oven Overview DocNo.024-0005 - Overview - R9049 oven Fig. 2.1 Top Oven ArtNo.325-0014 - BI oven R9049 1. Half Grill 2. Full Grill 3. Conventional 4. Base Heat Main Oven 1. Oven Light 2. Fanned Grill 3. Defrost 4. Fan Oven 5. -
Page 7: Function Overview
3. Function Overview Main Oven Function Modes Top Oven Function Modes No Function Mode Selected Half Grill - Grill pan position 4 or 5 This grill function is the same as the full grill, but only uses the centre of the element so is ideal for grilling a small amount of food. -
Page 8: Programming Overview
Programming Overview Oven Shelf levels Fig. 4.1 Always count shelf levels from the bottom upwards (Fig. 4.1) Programming the Oven Note: The alarm will cut off after two minutes if it is not switched off manually. Setting the clock • The clock is preset to 12:00, and will revert to this after a power failure. - Page 9 Semi-automatic cooking Fig. 4.5 The oven can be set to switch off automatically at a preset time up to a maximum of 10 hours. To set a semi-automatic cooking programme: • Select an oven function and temperature (the oven will switch on).
-
Page 10: Cooking Tips
5. Cooking Tips Tips on Cooking with the Timer General Oven Tips If you want to cook more than one dish, choose dishes that The wire shelves should always be pushed firmly to the back require approximately the same cooking time. However, of the oven. -
Page 11: Cooking Table
6. Cooking Table DocNo.031-0004 - Cooking table - electric & fan single cavity The oven control settings and cooking times given in the table below are intended to be used Top (T) AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a ArtNo.050-0007 preferred result. -
Page 12: Cleaning Your Oven
7. Cleaning Your Oven Essential Information Fig. 7.1 Allow the oven to cool and isolate the electricity supply before carrying out any thorough cleaning and maintenance. Never use paint solvents, washing soda, caustic ArtNo.325-0001 - BI oven door hinges cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. -
Page 13: To Remove The Inner Glass
Oven Fig. 7.4 DO NOT use steel wool, oven cleaning pads, or any other materials that will scratch the surface. To remove the inner glass The door and inner glass are held together by corner cap pieces. ● Depending on the model of the oven, the door top corner pieces can be removed either by pressing the buttons shown in position “A”... - Page 14 Back light Fig. 7.5 Fig. 7.5 ● Remove all shelves and the grill pan from the oven. ● Unscrew the protective cover. We recommend that you wash and dry the glass cover at this point. Always use a clean cloth or gloves. ...
-
Page 15: Oven Shelves
8. Oven Shelves Removing the runners in the top oven Removing the runners in the main oven Check the oven is cool and switched off. Check the oven is cool and switched off. Open the top oven door. Open the main oven door. Remove all shelves (Fig. -
Page 16: Troubleshooting
9. Troubleshooting DocNo.054-0001 - Troubleshooting BI oven Steam is coming from the oven. A dish of water when placed on the shelf should be the When cooking foods with a high water content (e.g. same depth all over. (For example, if it is deeper at the oven chips) there may be some steam visible at the top back, then the back of the cooker should be raised up or of the door. -
Page 17: Installation
INSTALLATION Check the appliance is electrically safe when you have finished. 10. Installation Dear Installer Location of the Oven Before you start your installation, please complete the details The oven may be installed in a kitchen/kitchen diner but NOT BELOW. in a room containing a bath or shower. -
Page 18: Positioning The Oven
INSTALLATION Check the appliance is electrically safe when you have finished. Positioning the Oven Provision for Ventilation The oven can be installed under a worktop. Depending on The appliance housing used must provide adequate the installation (Fig. 10.1, Fig. 10.2, Fig. 10.3) it is designed ventilation. - Page 19 INSTALLATION Check the appliance is electrically safe when you have finished. Fig. 10.1 Installation “A” (*) Measure from beneath the worktop to the top support base of “B”. ArtNo.325-0024 - R9044/R9049 dimensions IMPORTANT The underside of the cabinet should be opened to allow for correct air circulation.
- Page 20 INSTALLATION Check the appliance is electrically safe when you have finished. Fig. 10.2 Installation “B” (*) Measure from beneath the worktop to the top support base of “B”. Pre-existing 600 mm cabinet ArtNo.325-0024 - R9044/R9049 dimensions IMPORTANT The underside of the cabinet should be opened to allow for correct air circulation.
- Page 21 INSTALLATION Check the appliance is electrically safe when you have finished. Fig. 10.3 Installation “C” (*) Measure from beneath the worktop to the top support base of “B”. Remove the shelf if fitted Cabinet for installing the oven Support Base ArtNo.325-0024 - R9044/R9049 dimensions All dimensions in mm...
- Page 22 INSTALLATION Check the appliance is electrically safe when you have finished. Fig. 10.4 Fig. 10.5 Fig. 10.6 IMPORTANT If installing the base panel leave a space as indicated in Fig. 10.5 to Fit the 6 screws to the IMPORTANT ...
-
Page 23: Electrical Connection
INSTALLATION Check the appliance is electrically safe when you have finished. Electrical Connection 220 - 240V This appliance must be installed by a qualified electrician to comply with the relevant Institute of Engineering and Technology (I.E.T.) regulations and also the local electricity supply company requirements. -
Page 24: Circuit Diagram
• DocNo.094-0004 - Circuit diagram R9044 oven 11. Circuit Diagram... -
Page 25: Technical Data
COUNTRY OF DESTINATION: GB, IE. Dimensions Dimensions Oven Housing Height Width 560 - 600 Depth Oven Data Brand Rangemaster Model identification RMB7248BL/SS Type of oven Electric Mass Number of cavities Top Oven Efficiency Fuel type Electric Cavity type Multifunction* *Drop Down Door Volume Litres... -
Page 26: Warranty/After Sales Service
13. Warranty/After Sales Service DocNo.111-0003 Warranty No.10 If consultation or technical assistance is needed, please provide the local authorised service agent with the purchase invoice and the product code/serial number. The 2 years free maintenance for the operation of the appliance started from the date of purchase of this product. - Page 27 Notes...
- Page 28 Notes...
- Page 29 Notes...
- Page 30 Notes...
- Page 31 Notes...
- Page 32 Clarence Street, Royal Leamington Spa, Warwickshire, CV31 2AD, England. Tel: +44 (0) 1926 457400 Fax: +44 (0) 1926 450526 E-mail: consumers@falconappliances.co.uk...
