4.1 Control Panel

Feature
A
B
C
Alarm/Fault Condition
UV Lamp Ignition/Run Fault
UV Lamp Near End of Life Warning
UV Lamp At End of Life Fault
UV Lamp EOL Exceeded Fault
AC Voltage out of Range
UV Controller Fault
2
1

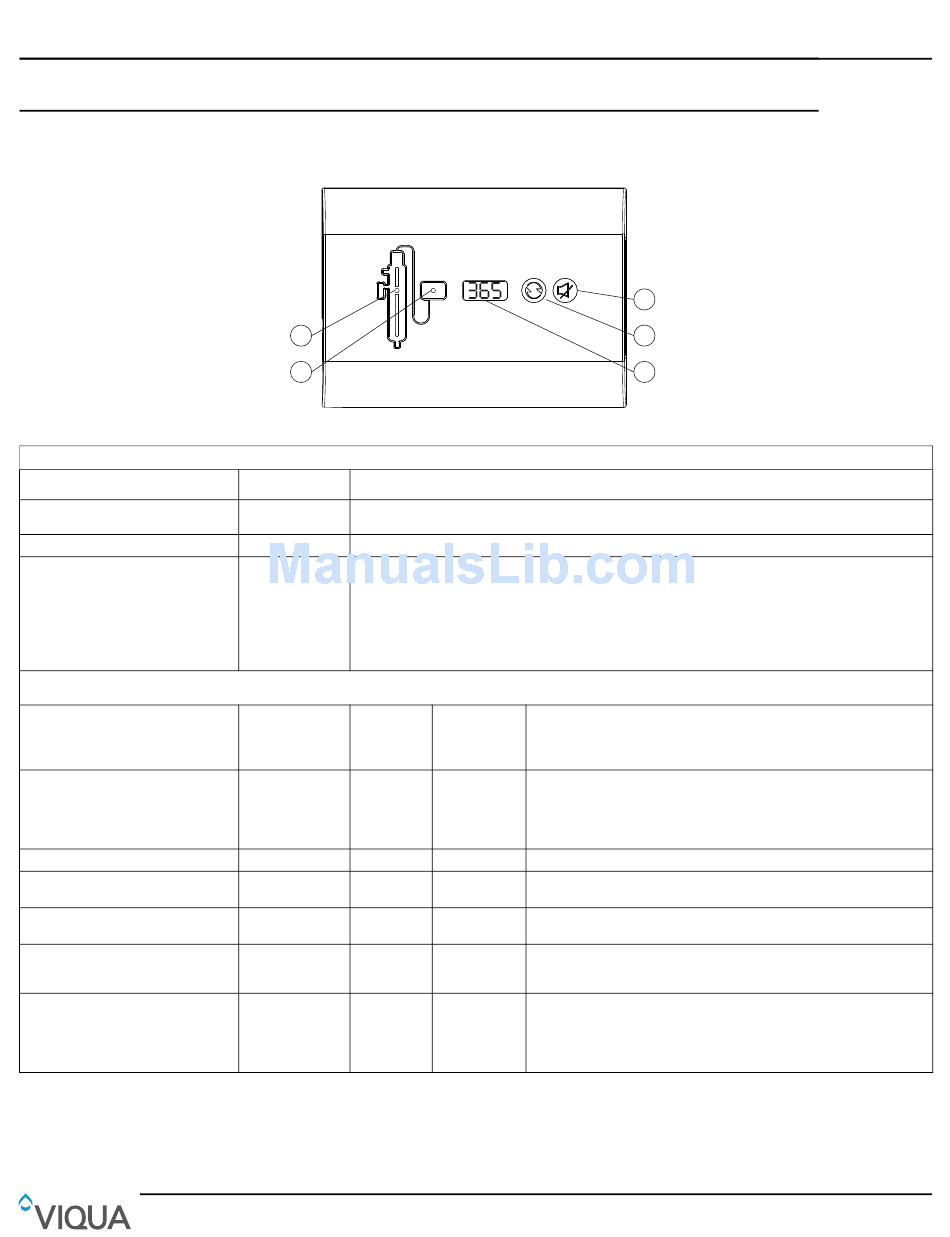

Figure 5 Control Panel
Buttons and Display
Description
Lamp timer
Counts down from 365 days to show time for annual lamp replacement.
display
Lamp timer reset After installing a new lamp, press and hold for five seconds to reset Lamp timer to 365.
• Press to silence audible alarm.
• When the alarm is due to the lamp's age, the mute button will silence the audible alarm for 7
days; this may be repeated up to a maximum of 4 times. After that, the button will silence for only
Mute
24 hours.
• When the alarm is due to any other issue, the mute button will silence the audible alarm for 24
hours.
Indicator Lights
LED 1 LED 2
(UV Controller (UV Lamp
Status) Status)
Flashing
Red
Red
Green Yellow
Flashing
Green
Red
Flashing
Green
Red
Flashing
Flashing Red
Red
Flashing Red Red
Function
Audio
Indicator
Status
1. Unplug UV system from main power supply.
2. Check for secure lamp connection.
Beeping 3. Restore power to UV system.
4. If failure message repeats, replace UV lamp.
Audible alarm may be silenced for 24 Hours.
Off Warning: Lamp will require replacement shortly.
1. Follow instructions in manual to replace lamp.
Chirp
Warning Chirp may be silenced for 7 Days.
1. Follow instructions in manual to replace lamp.
Chirp
Warning Chirp may be silenced for 24 Hours.
When the AC voltage is back in range (>93V or <265V) the alarm
cancels and normal operation is resumed.
Beeping
Audible alarm may be silenced temporarily.
1. Unplug UV system from main power supply.
2. Allow 30 seconds for unit to fully power down.
Beeping 3. Restore power to UV system.
4. If failure message repeats, replace controller.
Audible alarm may be silenced for 24 Hours.
C
B
A
