UM-560 Installation Guide for Windows

2000

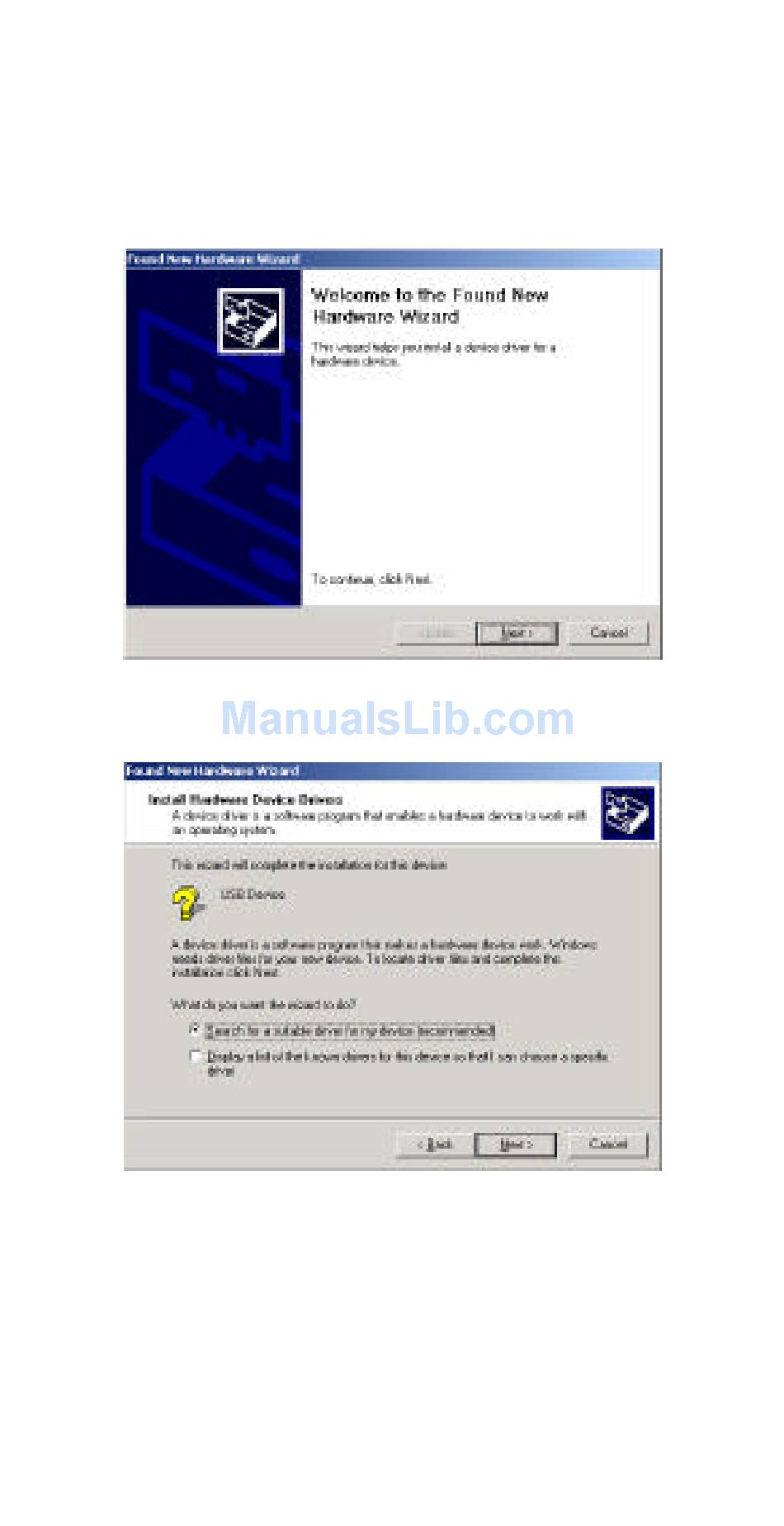

When the USB V.90 Fax/Modem is well

connected to your computer, Windows 2000 will

automatically detect the new device. Click Next.

Select Search for a suitable driver for my

device (recommended) and click Next.

Insert the new device driver compact disc into the

CD-ROM drive. Select Specify a location and

click Next.

Need help?

Do you have a question about the UM-560 and is the answer not in the manual?

Page 1 UM-560 Installation Guide for Windows 2000 When the USB V.90 Fax/Modem is well connected to your computer, Windows 2000 will automatically detect the new device. Click Next. Select Search for a suitable driver for my device (recommended) and click Next.
Page 2 Click Browse button and select E:\WIN2K. Click OK. Windows will start searching for the appropriate driver for the software installation. Click Next to continue. Click Yes.
Page 3 Click Finish. The software installation is successfully completed. Restart your computer to activate the new device.
Page 4: Setup Diagnostics
Setup Diagnostics To verify whether your USB V.90 Fax/Modem exists in your computer and is enabled, go to My Computer→Control Panel→System. Click the Device Manager tab. If the Modem and Network adapters are found, it means that your Network device is well installed. If not, consult your computer dealer for technical support.
Page 5 UNINSTALLATION To uninstall the device driver of USB V.90 Fax/Modem, perform the following steps. Go to My Computer→Control Panel. Double- click Add/Remove Programs. Select Uninstall USB V.90 FAX MODEM. Click the Add/Remove button. And click OK. For Windows 2000, the following dialog box will appear after...
Page 6 Follow the on-screen instructions to finish.
