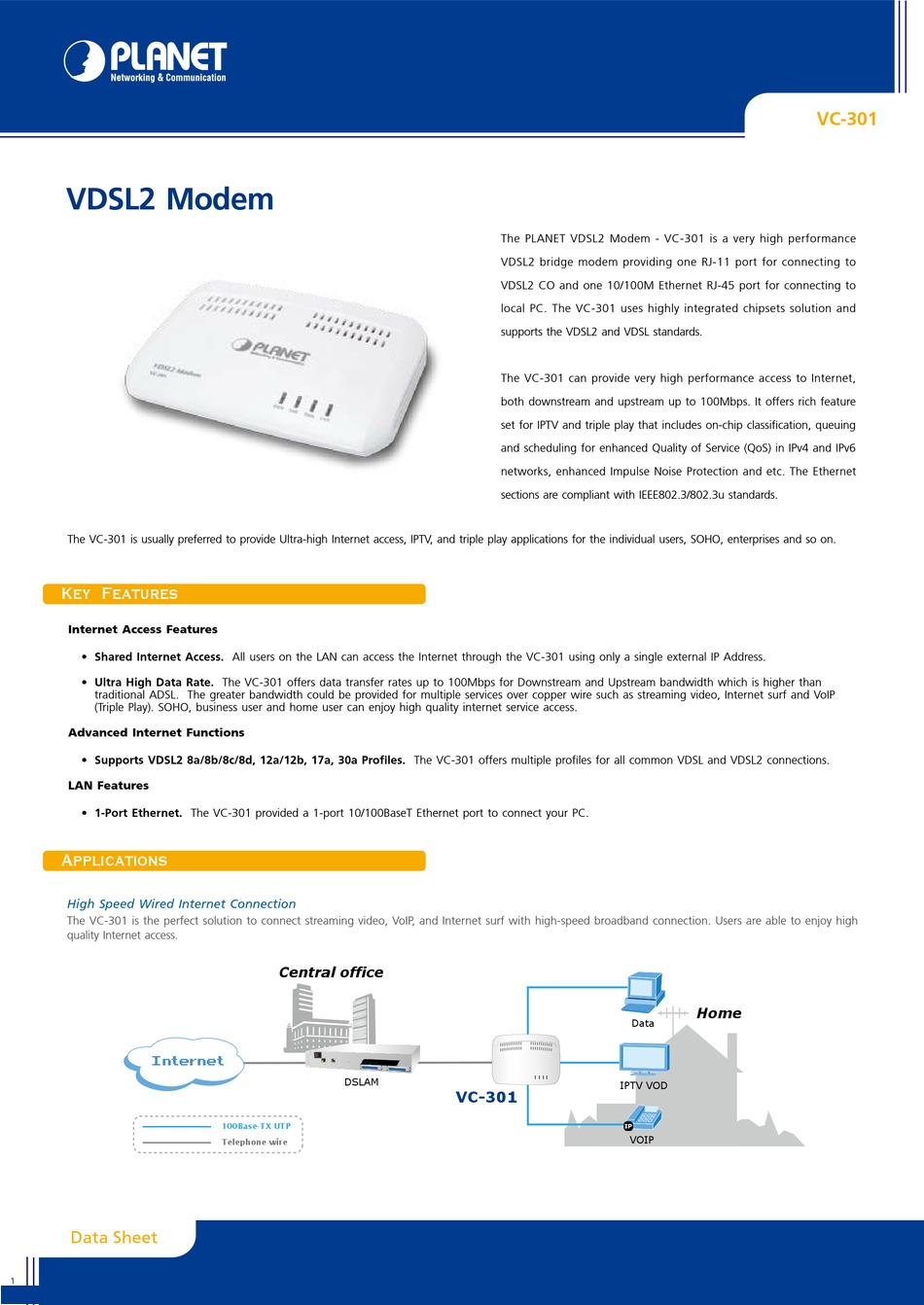

Planet VC-301 Specifications

VDSL2 Modem
The VC-301 is usually preferred to provide Ultra-high Internet access, IPTV, and triple play applications for the individual users, SOHO, enterprises and so on.

Key Features

Internet Access Features

Shared Internet Access.
•
• Ultra High Data Rate.
traditional ADSL. The greater bandwidth could be provided for multiple services over copper wire such as streaming video, Internet surf and VoIP
(Triple Play). SOHO, business user and home user can enjoy high quality internet service access.

Advanced Internet Functions

Supports VDSL2 8a/8b/8c/8d, 12a/12b, 17a, 30a Profiles.
•

LAN Features

• 1-Port Ethernet.

Applications

High Speed Wired Internet Connection
The VC-301 is the perfect solution to connect streaming video, VoIP, and Internet surf with high-speed broadband connection. Users are able to enjoy high
quality Internet access.
Internet
Data Sheet
1
All users on the LAN can access the Internet through the VC-301 using only a single external IP Address.
The VC-301 offers data transfer rates up to 100Mbps for Downstream and Upstream bandwidth which is higher than
The VC-301 provided a 1-port 10/100BaseT Ethernet port to connect your PC.
Central office
DSLAM
100Base-TX UTP
Telephone wire
The PLANET VDSL2 Modem - VC-301 is a very high performance
VDSL2 bridge modem providing one RJ-11 port for connecting to
VDSL2 CO and one 10/100M Ethernet RJ-45 port for connecting to
local PC. The VC-301 uses highly integrated chipsets solution and
supports the VDSL2 and VDSL standards.
The VC-301 can provide very high performance access to Internet,
both downstream and upstream up to 100Mbps. It offers rich feature
set for IPTV and triple play that includes on-chip classification, queuing
and scheduling for enhanced Quality of Service (QoS) in IPv4 and IPv6
networks, enhanced Impulse Noise Protection and etc. The Ethernet
sections are compliant with IEEE802.3/802.3u standards.
The VC-301 offers multiple profiles for all common VDSL and VDSL2 connections.
VC-301
Home
Data
IPTV VOD
VOIP
VC-301
