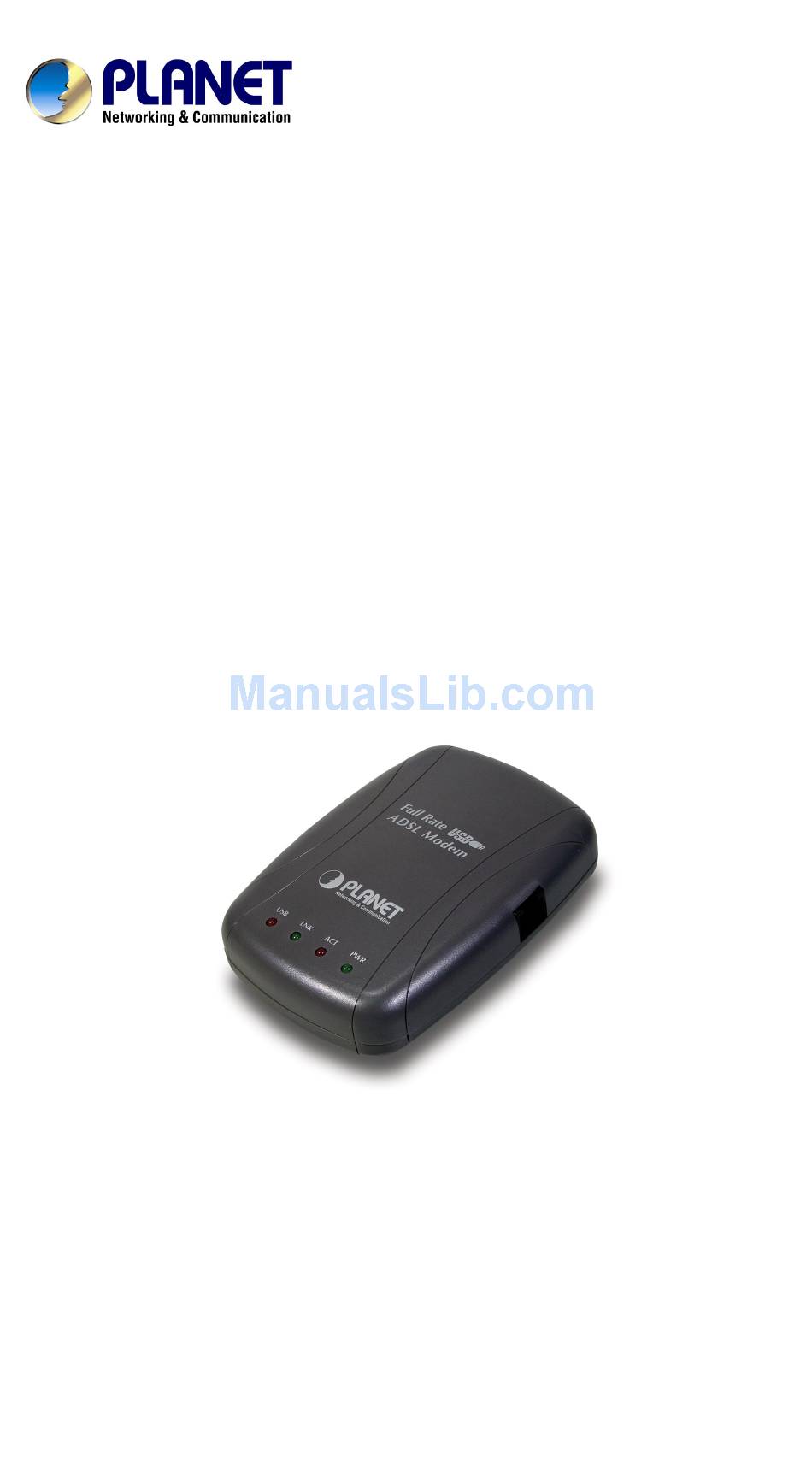

  • Page 1 USB ADSL Modem ADU-2100 User’s Manual...

  • Page 2: Fcc Compliance Statement

    PLANET Technology. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environ- ments and applications, and makes no warranty and representation, either implied or ex- pressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
  • Page 3 Revision User’s Manual for PLANET USB ADSL Modem Model: ADU-2100A / ADU-2100B Rev: 1.0 (JUL. 2003) Part No.: EM-ADU2100V1.doc...

  • Page 4: Table Of Contents

    CHAPTER 1 INTRODUCTION... 1 ...1 EATURES ...1 EQUIREMENT ADSL LAN mode user ... 1 ADSL WAN (PPPoE/PPPoA) mode user ... 1 YSTEM EQUIREMENT CHAPTER 2 INSTALLATION... 3 ARDWARE NSTALLATION RIVER NSTALLATION FOR BOTH RIVER NSTALLATION FOR BOTH RIVER NSTALLATION FOR BOTH RIVER NSTALLATION FOR BOTH RIVER...

  • Page 5: Chapter 1 Introduction

    Chapter 1 Introduction PLANET USB ADSL modem ADU-2100 is designed to provide cost-effective ac- cess to high-speed ADSL services. With our ADSL modem, surfing on Internet is just like driving a sport car on the Express Highway. Video on Demand, Videocon- ference and any high-speed Internet applications is not a dream any more.

  • Page 6: System Requirement

    System Requirement Mainboard with USB support Pentium II CPU and above or compatible RAM: 64M or above Windows 98, Windows 2000, Windows ME, Windows XP, Windows 2003 Server...

  • Page 7: Chapter 2 Installation

    Chapter 2 Installation Please refer to the following steps to complete ADU-2100 installation. Hardware Installation 1. Turn on your PC 2. Insert the rectangular end of a USB cable into the USB port of your PC. Then, insert the square end of the USB cable into the USB port of the ADU 2100. 3.
  • Page 8 3. Choose Specify a location. Then click Next. If you need to set for LAN mode (RFC1483), select LAN subdirectory and for WAN mode (RFC2516/2364), select WAN subdirectory.
  • Page 9 4. The Add New Hardware Wizard will appear and indicate the PLANET ADU-2100 USB ADSL Interface has been recognized and will install a new driver. Click Next 5. Click Finish to complete the installation.

  • Page 10: Driver Installation For Both Lan And Wan Mode With Windows Me

    Driver Installation for both LAN and WAN mode with Windows ME 1. The “Found New Hardware Wizard” will be displayed. Insert ADU-2100 driver CD and click Next. 2. Please specify the path which ADSL modem connected your computer to Internet, then click OK. If you need to set for LAN mode (RFC1483), select LAN subdirectory and for WAN mode (RFC2516/2364), select WAN subdirectory.

  • Page 11: Driver Installation For Both Lan And Wan Mode With Windows 2000

    3. Click Finish to complete ADU-2100 driver installation. Driver Installation for both LAN and WAN mode with Windows 2000 1. The “Add New Hardware Wizard” will be displayed and click Next.
  • Page 12 2. Choose the “Search for a suitable driver for my device (recommended)”, and click Next. 3. Next you will be prompted for software drivers. Select Specify a location. 4. Insert the ADSL Driver CD into your systems CD-ROM drive, Select Driver Di- rectory LAN or WAN, then click OK.
  • Page 13 5. The Found New Hardware Wizard will then find the ADSL USB MODEM, click Next.
  • Page 14 6. The “Digital Signature Not Found” window will pop-up, Click Yes. 7. Click Finish to complete the installation.

  • Page 15: Driver Installation For Both Lan And Wan Mode With Windows Xp

    Driver Installation for both LAN and WAN mode with Windows XP 1. The “Add New Hardware Wizard” will be displayed. Choose Install from a list or specific location (Advanced) and click Next. 2. Insert the ADSL Driver CD into your systems CD-ROM drive, Select Driver Di- rectory LAN or WAN, then click Next.
  • Page 16 3. The Hardware Installation window appears. You will be asked; Do you want to continue installation? Click Continue Anyway. 3. At the conclusion of the ADSL modem driver installation, the Found New Hard- ware Wizard window appears and displays your newly installed PLANET ADU-2100 USB ADSL Interface, then click Finish.

  • Page 17: Windows 2003 Server

    Driver Installation for both LAN and WAN mode with Windows 2003 Server 1. The Found New Hardware Wizard will appear. Select Install from a list or specific location (Advanced), and click Next. 2. Insert the ADSL Driver CD into your systems CD-ROM drive, Select Driver Di- rectory LAN or WAN, then click OK.
  • Page 18 3. The Hardware Installation window appears. You will be asked; Do you want to continue installation? Click Continue Anyway. 4. At the conclusion of the ADSL modem driver installation, the Found New Hard- ware Wizard window appears and displays your newly installed PLANET ADU-2100 USB ADSL Interface, then click Finish...

  • Page 19: Chapter 3 Adsl Configuration

    Chapter 3 ADSL Configuration ADSL LAN Configuration 1. Conexant Access Runner ADSL icon should be added in the control panel or on the desktop. 2. Click the Conexant Access Runner ADSL icon, it will be displayed the status of the modem.
  • Page 20 3. Press Alt + P on the keyboard, the right figure appears. 4. Under the Protocol Setup please set the value of VCI, VPI and Encapsulation. 5. Click My Computer on the desktop\ Control Panel\Network\Configuration -> select TCP/IP -> click properties to configure TCP/IP configuration.
  • Page 21 6 IP Address setting: select Specify an address, then enter the value of IP Ad- dress and Subnet Mask obtained from ISP. 7. Gateway setting: enter the data from your ISP and click Add.
  • Page 22 8. DNS Configuration setting: Select Enable DNS, enter Host name and add DNS Server Search Order. Click Add and OK. 9. Reboot computer to activate the modifications if necessary. NOTE: TCP/IP configuration listed above is a sample for ADU-2100 installa- tion on Windows 98 machine.

  • Page 23: Adsl Wan Configuration

    ADSL WAN configuration 1. After driver installation, Conexant Access Runner ADSL and AccessRunner DSL icon should be added in the control panel and on the desktop. 2. Click the Conexant Access Runner ADSL icon, it will be displayed the status of the modem.
  • Page 24 5. Click the Access Runner DSL icon on the desktop -> enter User name, Password and Phone number (don’t care; recommend “0000”) from your ISP. 6. Click Connect. Now, you can surfer the Internet.
