Setup Guide — FOX 2G Tx/Rx AV
Step 7
Connect the 12 VDC power supply to the transmitter's 2-pole captive screw connector. Do not
switch on the power supply.
Step 8
Connect the receiver to a low resolution video display using either the output BNC connectors
(component, S-video, or composite) or the 4-pin mini DIN (S-video only), as shown in the
figure at right.
Step 9
Connect the receiver's audio output to a sound system, using the 5 pole, 3.5 mm captive screw
connector.
Step 10
If required, connect an alarm system to the receiver's 2-pole
captive screw connector.
Step 11

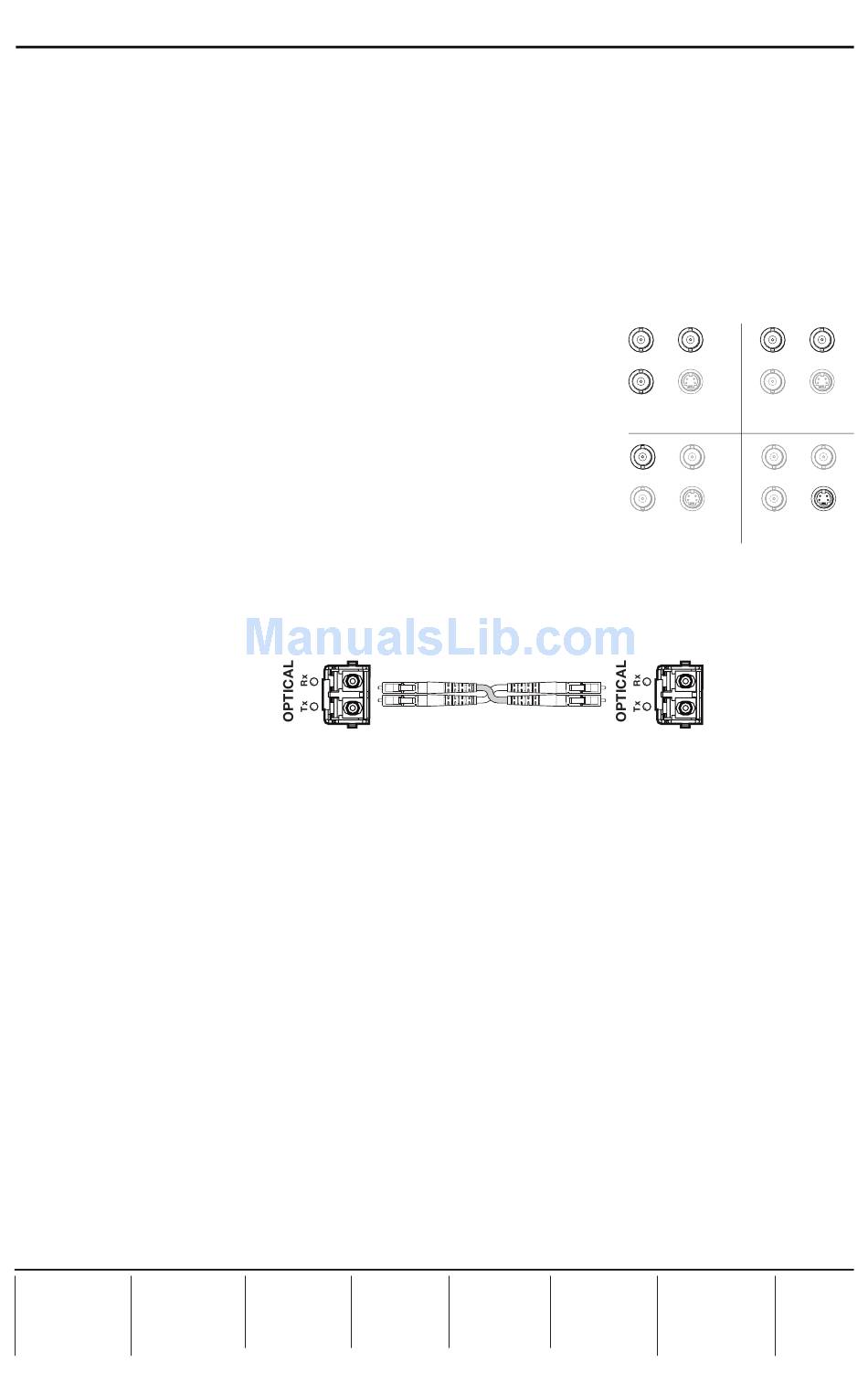

Connect the fiber optic cable(s) from the transmitter to the back
of the receiver (see the figure below). Fiber optic link 1 connects
the Tx port of the transmitter to the Rx port of the receiver and
is essential for transmission of video, audio, and control signals
from the transmitter to the receiver. Fiber optic link 2 connects the Rx port of the transmitter
to the Tx port of the receiver. It is optional, but two-way communication from the Tx port of
the receiver is required to fully configure the system using RS-232 commands or FOX Extender
Windows Control Program.
Link 2 may be connected to another receiver in a daisy chain. In that case, there is no return
link to the transmitter.
Step 12
Connect an RS-232 control device to the 5-pole captive screw connector or the front panel
Config port of the receiver. These ports are an alternative to the transmitter ports (see steps 6
and 7).
If the RS-232 control device is connected to the receiver, fiber optic Link 2 is required to
N
configure the transmitter.
Step 13
Connect the 12 VDC power supply to the receiver's 2-pole captive screw connector.
Step 14
Power up all devices and configure the system using the Simple Instruction Set (SIS
commands or FOX Extender Windows Control Program. Consult the user's manual (available
online at www.extron.com) for more information about SIS commands and the Control
Program.
Extron USA - West Extron USA - East
Headquarters
+800.633.9876
+800.633.9876 Inside USA / Canada Only
Inside USA / Canada Only
+1.919.863.1794
+1.714.491.1500 +1.919.863.1797 FAX
+1.714.491.1517 FAX
Transmitter
Extron Europe
+800.3987.6673
Inside Europe Only
+31.33.453.4040
+31.33.453.4050 FAX
© 2009 Extron Electronics. All rights reserved.
Extron Asia Extron Japan
+800.7339.8766 +81.3.3511.7655
Inside Asia Only +81.3.3511.7656 FAX
+65.6383.4400
+65.6383.4664 FAX
Y/VID B-Y/C
R-Y S-VID S-VID
Component
Y/VID B-Y/C B-Y/C
R-Y R-Y S-VID S-VID
Composite
Receiver
Extron China Extron Middle East
+400.883.1568 +971.4.2991800
Inside China Only +971.4.2991880 FAX
+86.21.3760.1568
+86.21.3760.1566 FAX
Y/VID B-Y/C
R-Y R-Y S-VID S-VID
S-video
Y/VID Y/VID B-Y/C B-Y/C
R-Y R-Y S-VID
S-video
)
™
