Bosch WZ14N4-0 User Manual page 3

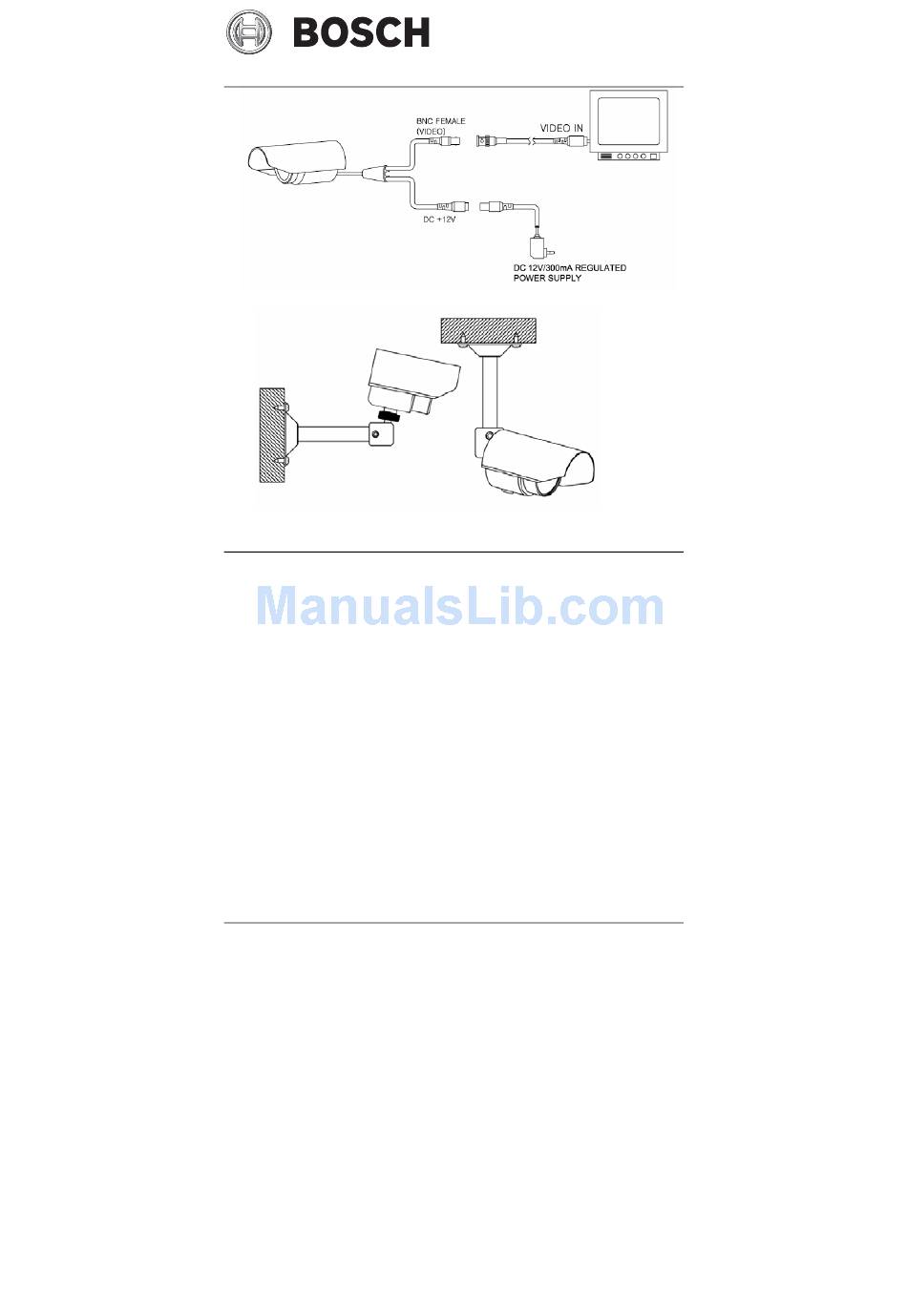

Installation (cont'd)
Camera Specifications
Part Number
CCD Camera
Resolution
Color / monochrome
Effective Pixels (NTSC)
Effective Pixels (PAL)
Night-Time Sensitivity
Electronic Iris (NTSC)
Electronic Iris (PAL)
Output Signal
S/N Ratio
Gamma
Lens
LEDs
Wavelength
Number of LEDs
Voltage
Power Draw
Construction
Finish
Operational Temp.
Sunshield
Bracketry
Power Supply
Weight
Dimensions
Subject To Change Without Notice.
Contact Information
Americas
Bosch Security Systems, Inc.
850 Greenfield Road
Lancaster, Pennsylvania 17601
USA
Telephone+1 888-289-0096
Fax +1 585-223-9180
Email: security.sales@us.bosch.com
www.boschsecurity.us
© Bosch Security Systems, Inc. 2009; Data subject to change without notice.
WZ14N4-0 (NTSC) | WZ14P4-0 (PAL)
1/3" SuperHAD CCD
380 TVL
Video level switching
510 (H) x 492 (V)
500 (H) x 582 (V)
0 Lux (infrared on)
1/60 ~ 1/100,000s
1/50 ~ 1/100,000s
1V P-P composite video, 75 Ohms
Greater than 48dB
0.45
Fixed 3.7mm lens
Infrared array, photocell-controlled
850nm
12
12 VDC
250mA maximum
Aluminum extrusion
Anodized silver
-30ºC to 55ºC | -22ºF to +131ºF
Included as standard
Pan-tilt bracket included as standard
Not included
0.39kg (0.86lbs)
Φ 58.5mm x 90mm (L) | 2.3" x 3.5" (L)
