Liberty ® LRI3E / Regency Horizon ® HRI3E
MODELS: LRI3E-NG1 Natural Gas
HRI3E-NG1 Natural Gas
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Tested by:
919-826a
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

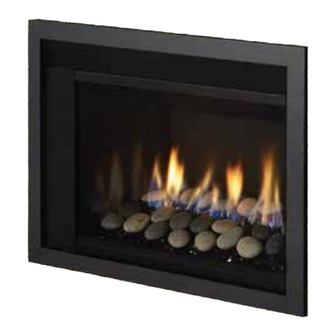

Gas Insert
LRI3E-LP1 Propane
HRI3E-LP1 Propane
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
Owners &
Installation Manual
www.regency-fire.com
07.24.18
Advertisement
Table of Contents
Related Manuals for Regency Fireplace Products LRI3E-LP1
Summary of Contents for Regency Fireplace Products LRI3E-LP1
- Page 1 Liberty ® LRI3E / Regency Horizon ® HRI3E Owners & Gas Insert Installation Manual www.regency-fire.com MODELS: LRI3E-NG1 Natural Gas LRI3E-LP1 Propane HRI3E-NG1 Natural Gas HRI3E-LP1 Propane WARNING FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
- Page 2 TO THE NEW OWNER Congratulations! You are the owner of a state-of-the-art Gas Insert by Regency. The Regency Gas Insert Series of hand crafted appliances has been designed to provide you with all the warmth and charm of a fireplace, at the flick of a switch. The models LRI3E / HRI3E of this series have been approved by Warnock Hersey/Intertek for both safety and efficiency.
-
Page 3: Table Of Contents
table of contents Dimensions HRI3E optional log set installation .......22 Unit dimensions with vignette faceplate ......4 LRI3E log set installation ...........24 Unit dimensions with vignette faceplate Brick panel installation ..........26 + small backing plate ............4 Painted black and enamel panel installation ....27 Unit dimensions with 4 sided vignette faceplate Glass door removal / installation........28 + backing plate .............5... -
Page 4: Unit Dimensions With Vignette Faceplate
dimensions UNIT DIMENSIONS WITH VIGNETTE FACEPLATE 28" (711mm) 21-5/16" (540mm) 10-3/8" (262mm) 10-3/8” (262mm) 29-1/16" (738mm) 26" (660mm) 22-3/4" (576mm) UNIT DIMENSIONS WITH VIGNETTE FACEPLATE + SMALL BACKING PLATE 28” 711mm 21-5/16” 540mm 31-1/4” 794mm 29-1/16” 738mm 22-11/16” 576mm Not Shown: Regular backing plate - 35-3/4"... -
Page 5: Unit Dimensions With 4 Sided Vignette Faceplate + Backing Plate
dimensions UNIT DIMENSIONS WITH 4 SIDED VIGNETTE FACEPLATE + BACKING PLATE 28” 711mm 21-5/16” 540mm 35-3/4” 908mm 29-1/4” 743mm 10-3/8” 262mm 3” 14” 76mm 355mm ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY. ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS. LRI3E-1 / HRI3E-1 Direct Vent Gas Insert... -
Page 6: Copy Of Safety Label Hri3E
dimensions COPY OF SAFETY LABEL HRI3E This is a copy of the labels that accompany each HRI3E Gas Insert. We NOTE: Regency units are constantly being improved. Check the label on have printed a copy of the contents here for your review. the unit and if there is a difference, the label on the unit is the correct one. -
Page 7: Copy Of Safety Label Lri3E
(4.10 kW) D bit calorifique maximum é Maximum input 20,500 Btu/h (6.00 kW) PROPANE GAS FIREPLACE INSERT: MODEL LRI3E-LP1 É QUIP EN USINE POUR GAZ PROPANE É MODÈLE LRI3E-LP1 Factory Equipped For Altitude 0-4500ft. (0-1370m) Min. supply pressure 11" (2.73 kpa) Pression d'alimentation minimum Low Setting Man. -
Page 8: Ma Code - Co Detector
requirements MA Code - CO Detector (for the State of Massachusetts only) 5.08: Modifications to NFPA-54, Chapter 10 (2) Revise 10.8.3 by adding the following additional requirements: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:... -
Page 9: Installation
installation IMPORTANT MESSAGE FOR YOUR SAFETY YOUNG CHILDREN SHOULD BE CARE- SAVE THESE FULLY SUPERVISED WHEN THEY ARE This appliance requires air for proper combustion. INSTRUCTIONS IN THE SAME AREA AS THE APPLI- Always provide adequate combustion and ventilation ANCE. TODDLERS, YOUNG CHILDREN air. -
Page 10: Gas Pressure Testing
installation General Safety Information GAS PRESSURE FACTORY-BUILT (METAL) WOOD- TESTING BURNING FIREPLACE 1. The appliance installation must conform with REQUIREMENTS local codes or in the absence of local codes, The appliance must be isolated from the gas sup- with CAN/CGA B149 (in Canada) or the National ply piping system by closing its individual manual NOTE: Any parts that are removed must be removed Fuel Gas Code ANSI Z223.1 in the U.S.A. -
Page 11: Installation Checklist
installation INSTALLATION MATERIALS REQUIRED CHECKLIST A 120 Volt AC power cord is hooked up to operate the fan and operate the gas valve when batteries are not installed in the receiver. Plug the 3 wire cord into a suitable receptacle. Do not cut the ground Before installing vent system ensure that the damper terminal off under any circumstances. -
Page 12: Minimum Clearances To Combustibles
installation MINIMUM CLEARANCES TO COMBUSTIBLES The clearances listed below are Minimum distances unless otherwise stated: A major cause of fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this decorative gas appliance be installed only in accordance with these instructions. Clearance: Dimension Measured From:... -
Page 13: Gas Connection
installation THE APPLIANCE MUST NOT BE CONNECTED TO A CHIMNEY GAS CONNECTION FLUE SERVING A SEPARATE SOLID FUEL BURNING APPLIANCE. GAS CONNECTION WARNING: Masonry chimneys may take various contours which the flexible liner will Only persons licensed to work with accommodate. However, keep the flexible liner as straight as possible, gas piping may make the necessary avoid unnecessary bending. -
Page 14: Alternate Approved Caps/Adaptor
installation VENT RESTRICTOR PLATE INSTALLATION ALTERNATE APPROVED CAPS/ADAPTOR 46DVA-GK 3" Co-linear Adaptor with flashing Note: only installed on runs at the minimum 8 feet vent height from above unit. 46DVA-VC Vertical Termination Cap If longer than 8 feet the restrictor is not required. 46DVA-VCH High Wind Cap 1. -
Page 15: Flue / Vent Installation
installation FLUE / VENT INSTALLATION NOTE: Flue Plate Connector Gasket must not be damaged or removed. Care must be taken to ensure that this 4. Use the Flue Connector Slide Tool to slowly pull the Flue Connector Plate gasket remains intact to prevent flue forward as you move the Insert rearward into the Fireplace Chase. -
Page 16: Air Shutter Adjustment
installation AIR SHUTTER ADJUSTMENT The burner aeration is factory set but may need adjusting due to either the LRI3E- Remove the burner by removing 2 screws in locations shown below. local gas supply or altitude. Slide burner to the left and lift out to remove. Air Shutters are required to increase or decrease the amount of air that is mixed with the fuel before combustion. -
Page 17: System With Fan (Lri3E / Hri3E)
installation WIRING DIAGRAM -- SYSTEM WITH FAN (LRI3E / HRI3E) CAUTION: Label all wires prior to disconnection Caution: Ensure that the wires do not touch any when servicing controls. Wiring errors can cause hot surfaces and are away from sharp edges. improper and dangerous operation. If any of the original wire as supplied with the appliance must be replaced, it must be replaced with type CPE wire or its equivalent. IMPORTANT: The 120V fan control module serves as the power source for this unit. -
Page 18: High Elevation
14,000 Btu/h (4.10 kW) the burner (it does not have to be touching the 3) Outlet Pressure Tap burner). 4) Inlet Pressure Tap LRI3E-LP1 SYSTEM DATA 5) Pilot Outlet Burner 6) Main Gas Outlet Min. Supply Pressure 11" WC (2.73 kpa) 7) Main Gas Inlet Max. -
Page 19: Conversion From Ng To Lp
LRI3E / HRI3E installation CONVERSION FROM NG TO LP CONVERSION FROM NG TO LP LRI3E/HRI3E USING PROFLAME 885 VALVE LRI3E/HRI3E THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER IF IN DOUBT DO NOT DO THIS CONVERSION! 4. Remove and discard 2 Pressure regulator screws A (T20 or slot), Pres- WARNING sure Regulator B, Spring and Diaphragm C. - Page 20 LRI3E / HRI3E installation HRI3E - Remove the burner by removing 5 screws in locations shown below 9. Unscrew the pilot orifi ce with the Allen key; then replace with the LPG to remove burner cover and 2 screws to remove burner (shown below). pilot orifi...
-
Page 21: Media Installation
installation MEDIA INSTALLATION Spread the Media evenly over the burner. Ensure installed media does not overlap excessively as this will affect the flame pattern. IMPORTANT NOTE: Only the supplied approved Media is to be used with these fireplaces. Use of any other type of media can alter the unit's performance, any damage caused by the use of any unapproved media will not be covered under warranty. -
Page 22: Hri3E Optional Log Set Installation
installation HRI3E HRI3E OPTIONAL LOG SET INSTALLATION LOG SET INSTALLATION Read the instructions below carefully and refer to the images. If the logs are broken do not use the unit until they are replaced. Broken logs can interfere with pilot operation. Improper positioning of the logs may create carbon build-up and can alter the unit's performance which is not covered under warranty. - Page 23 HRI3E installation 7. Place the supplied embers on the glass crystals as shown. Note: do not cover burner ports with embers. This will cause soothing on the logs. Ember install 8. Test fi re to ensure proper light off (make sure fl ame fl ows smoothly from one end of the burner to the other).
-
Page 24: Lri3E Log Set Installation
LRI3E installation LRI3E LOG SET INSTALLATION LOG SET INSTALLATION Read the instructions below carefully and refer to the images. If the logs are broken do not use the unit until they are replaced. Broken logs can interfere with pilot operation. Improper positioning of the logs may create carbon build-up and can alter the unit's performance which is not covered under warranty. - Page 25 installation LRI3E 6. Install Log 6 in the indent of the burner as shown below. Log 6 install 7. Install Log 7 on a diagonal, one end will rest in an indent in the burner and the other end will rest at the "Y" on Log 3. Log 7 install 8.
-
Page 26: Brick Panel Installation
installation LRI3E BRICK PANEL INSTALLATION Important: This appliance cannot be operated without brick (LRI3E only), enamel panels (HRI3E/LRI3E) or painted panels (HRI3E only) installed. BRICK PANEL INSTALLATION Brick panels are soft and fragile. Use caution when handling the panels, being careful not to jar them or scratch the painted surfaces. 1. Carefully unpack brick panels. 4. Loosen bracket screw in firebox in location shown below, slide right brick panel into position until it contacts the back panel. -
Page 27: Painted Black And Enamel Panel Installation
installation HRI3E PAINTED BLACK AND ENAMEL PANEL INSTALLATION Important: This appliance cannot be operated without brick (LRI3E), enamel panels (HRI3E/LRI3E) installed or painted BLACK PAINTED OR ENAMEL PANEL INSTALLATION panels (HRI3E only) installed. tooltip 4. Loosen bracket screw in firebox in location shown below, slide right panel Before you Start: into position until it contacts the back panel. Slide the panel bracket on from Black Enamel Panels Only the back of the unit and tighten the bracket screw. -
Page 28: Glass Door Removal / Installation
installation GLASS DOOR REMOVAL / INSTALLATION WARNING: Do not operate the appliance with the glass 4. Release the side door latch until it reaches its resting point. panels removed, cracked or broken. Replacement of the 5. Support the top of door as it will fall forward after the 2nd door latch is re- glass panels should be done by a licensed or qualified leased. The bottom of the door will be supported in the lower frame. service person. -
Page 29: Vignette Faceplate With Safety Screen Installation
installation VIGNETTE FACEPLATE WITH SAFETY SCREEN INSTALLATION VIGNETTE FACEPLATE INSTALLATION 1. Install the back faceplate and secure with 4 screws as shown. Final Install Back Faceplate Install 2. Install the outer (front) faceplate by hooking the flange over the hanger located on the back faceplate (installed in the previous step) as shown. -
Page 30: Inlay Installation
installation INLAY INSTALLATION OPTIONAL VIGNETTE INLAY INSTALLATION 1. Remove 5 screws from the backside of the Vignette frame cover 3. Place the Inlay on the Front Trim Assembly. and keep them aside (3 at bottom and 2 at top). Vignette Frame Vignette Frame Cover 2. - Page 31 installation 5. With the Inlay in position, place the mesh screen over the inlay. 6. Reverse step1. NOTE: The fl ush side of the mesh screen should face the inlay. 7. Install the Vignette frame with Inlay onto the 2 hooks provided on the unit.
-
Page 32: Backing Plate Installation
installation BACKING PLATE INSTALLATION BACKING PLATE INSTALLATION 1. Remove Vignette (front) faceplate from unit and lay on a soft \ 3. Attach the backing plate to the back faceplate from the front with 6 surface. screws (4 along the top and 1 on each side). Backing Plate Install 4. -
Page 33: Optional Hearth Trim Installation
installation LRI3E/HRI3E OPTIONAL HEARTH TRIM INSTALLATION OPTIONAL MANTEL DEFLECTOR INSTALLATION OPTIONAL MANTEL DEFLECTOR OPTIONAL HEARTH TRIM INSTALLATION INSTALLATION Customizing the Hearth Trim A mantel deflector may be installed to reduce the minimum mantel height. Refer to the instruction manual for minimum mantel clearances. The Hearth Trim can be adjusted to custom fit an installation by pulling apart the top piece from the bottom piece. -
Page 34: First Fire
operating instructions FIRST FIRE 8. Remote control requires coding. See remote 4. Install the 3 AAA type batteries in the Transmitter coding instructions for details. battery bay, located on the base of the Transmit- ter. With the batteries already installed in the The first fire in your fireplace is part of the paint NOTE: This appliance will operate with 4 AA back-up Transmitter, push the <ON>... -
Page 35: Lighting Procedure
operating instructions LIGHTING PROCEDURE IMPORTANT: The remote control system supplied with this appliance has Note: The first try for ignition will last approximately 60 seconds. If there is no several options for starting/operating the appliance using the battery holder flame ignition (rectification) the board will stop sparking for approximately and ON/OFF key on the hand held transmitter. -
Page 36: Normal Operating Sounds Of Gas Appliances
operating instructions 2. Clean glass (never when unit is hot), appliance, NORMAL OPERATING SOUNDS OF CAUTION: ANY SAFETY SCREEN and door with a damp cloth. Never use an GAS APPLIANCES OR GUARD REMOVED FOR SER- abrasive cleaner. VICING AN APPLIANCE MUST BE It is possible that you will hear some sounds from 3. -
Page 37: Copy Of Lighting Instruction Plate
operating instructions COPY OF LIGHTING INSTRUCTION PLATE FOR YOUR SAFETY READ BEFORE LIGHTING This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes, CSA B149.1. WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 38: Proflame Ii Remote Control Operating Instructions
operating instructions PROFLAME II REMOTE CONTROL OPERATING INSTRUCTIONS PROFLAME II REMOTE CONTROL OPERATING INSTRUCTIONS IMPORTANT:The Proflame Transmitter 2 is an integrated part of the TECHNICAL DATA Proflame 2 System, which consists of these elements: • Proflame 2 Transmitter, to be used in conjunction with: REMOTE CONTROL •... - Page 39 operating instructions Temperature indication Display Remote-Flame Control With the system in the "OFF" position, press the Thermostat Key and The profl ame has six (6) fl ame levels. With the system on, and the fl ame the Mode Key at the same time. Look at the LCD screen on the transmit- level at the maximum in the appliance, pressing the Down Arrow Key ter to verify that a C or F is visible to the right of the room temperature once will reduce the fl...
-
Page 40: Fan Speed Control
operating instructions Smart Thermostat (Transmitter Operation) Remote dimmer control (Light)** The auxiliary function controls the AUX power outlet by the dimmable The Smart Thermostat function adjusts the fl ame height in accordance light control. To activate this function use the Mode Key (fi g. 1) to index to the difference to the AUX icon (fi... -
Page 41: Key Lock
operating instructions KEY LOCK Continous Pilot/Intermittent Pilot (CPI/IPI) selection With the system in "OFF" position press the Mode Key (fi g. 1) to index This function will lock the keys to avoid unsupervised operation. to the CPI mode icon (fi g. 19 & 20). To activate this function, press the MODE and UP Keys at the same Pressing the Up Arrow Key will activate the Continous Pilot Ignition mode time (fi... -
Page 42: Door Glass
maintenance DOOR GLASS Your Regency insert is supplied with high temperature, Neoceram ceramic glass that will withstand the highest heat that your unit will produce. If your glass requires cleaning, we recommend using an approved glass cleaner available at all authorized dealers. -
Page 43: Pilot Adjustment
maintenance GENERAL VENT PILOT ADJUSTMENT BACKUP BATTERY PACK MAINTENANCE Periodically check the pilot flames. Correct flame There is a back up battery pack located on the left pattern has two strong blue flames: 1 flowing side of the unit, used in case of a power outage. Conduct an inspection of the venting system semi- around the flame sensor and 1 flowing across annually. -
Page 44: Fan Replacement - With Remote Control
maintenance FAN REPLACEMENT - WITH REMOTE CONTROL tooltip Note: To access the rear access panel both the gas and venting will need 3. Remove fan from unit by lifting up off pins. to be disconnected (see vent/flue installation in this manual) for proper removal. -
Page 45: Valve Replacement
maintenance VALVE REPLACEMENT 5. Remove the burner support by removing 3 screws as shown below. Before you begin: * Shut off the gas supply to the unit. Disconnect all electrical supply to the unit. Always let the appliance cool to room temperature before servic- ing. - Page 46 maintenance 8. Lift out panel (part of valve assembly) with valve and pilot assembly. tooltip Diagram 7 9. Replace with new valve assembly, ensuring to use a new gasket before securing new valve access plate to unit. 10. Reassemble unit by reversing Steps 8-1. 11.
-
Page 47: Lri3E Parts List
parts list LRI3E PARTS LIST Part # Description Part # Description 717-574/P Valve Assembly - NG 904-629 Fitting Elbow 90 Degree Forged 717-576/P Valve Assembly - LP 904-606 Fitting 90 Street Elbow Extruded 911-084 Novasit 885 Valve - NG IPI 885.001 904-658 Inlet Flex Line Gas SS Steel 24 inch 911-085... -
Page 48: Lri3E Main Assembly
parts list LRI3E MAIN ASSEMBLY 48 | LRI3E-1 / HRI3E-1 Direct Vent Gas Insert... -
Page 49: Hri3E Parts List
maintenance HRI3E PARTS LIST Part # Description Part # Description 717-578/P Valve Assembly - NG 904-606 Fitting 90 Street Elbow Extruded 717-580/P Valve Assembly - LP 904-658 Inlet Flex Line Gas SS Steel 24 inch 911-084 Novasit 885 Valve - NG IPI 885.001 716-034F Side Firebox Bracket 911-085... -
Page 50: Hri3E Main Assembly
maintenance HRI3E MAIN ASSEMBLY 50 | LRI3E-1 / HRI3E-1 Direct Vent Gas Insert... -
Page 51: Accessories
parts list ACCESSORIES Part # Part Description 716-920 Mantel Deflector 716-919 Hearth Trim Adjustable 716-921 Faceplate Vignette Tuscan Sunset 716-922 Faceplate Vignette Black Chrome 716-923 Faceplate Vignette Metallic Black 716-924 Faceplate Vignette Platinum 716-928 Backing Plate 4-Sided Vignette 716-925 Backing Plate Vignette Small 716-926 Backing Plate Vignette Regular 716-927... - Page 52 warranty Limited Lifetime Warranty FPI Fireplace Products International Ltd. (for Canadian customers) and Fireplace Products U.S., Inc. (for U.S. customers) (collectively referred to herein as “FPI”) extends this Limited Lifetime Warranty to the original purchaser of this appliance provided the product remains in the original place of installation. The items covered by this limited warranty and the period of such coverage is set forth in the table below.
-
Page 53: Warranty Warranty
warranty At all times FPI reserves the right to inspect reported complaints on location in the field claimed to be defective prior to processing or authorizing of any claim. Failure to allow this upon request will void the warranty. All warranty claims must be submitted by the dealer servicing the claim, including a copy of the Bill of Sale (proof of purchase by you). - Page 54 warranty Limitations of Liability: The original purchaser’s exclusive remedy under this warranty, and FPI’s sole obligation under this warranty, express or implied, in contract or in tort, shall be limited to replacement, repair, or refund, as outlined above. IN NO EVENT WILL FPI BE LIABLE UNDER THIS WARRANTY FOR ANY INCIDENTAL OR CONSEQUENTIAL COMMERCIAL DAMAGES OR DAMAGES TO PROPERTY.
- Page 55 warranty Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form found on our Web Site under Customer Care within ninety (90) days of purchase.
- Page 57 notes LRI3E-1 / HRI3E-1 Direct Vent Gas Insert...
- Page 58 notes 58 | LRI3E-1 / HRI3E-1 Direct Vent Gas Insert...
- Page 59 LRI3E-1 / HRI3E-1 Direct Vent Gas Insert...
- Page 60 Installer: Please complete the following information Dealer Name & Address: ______________________________________________ ___________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial No.: __________________________________________________________ Printed in Canada Regency and Regency Horizon, are trademarks of FPI Fireplace Products International Ltd. ® © Copyright 2018, FPI Fireplace Products International Ltd. All rights reserved.
