USER GUIDE

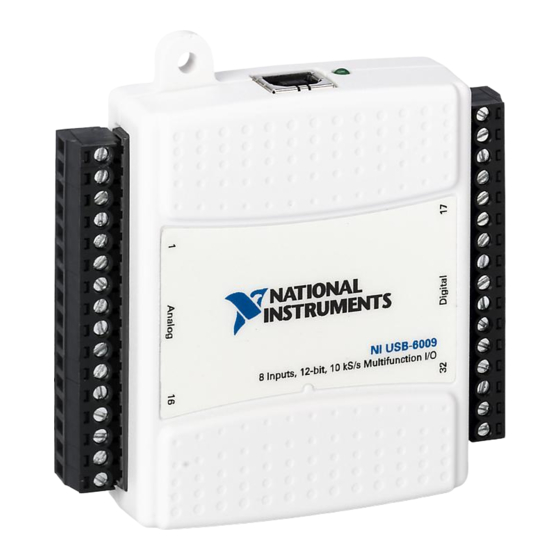

NI USB-6008/6009 OEM
There are no product safety, electrogmagnetic compatibility (EMC), or
Caution
CE marking compliance claims made for the NI USB-6008/6009 OEM devices.
The NI USB-6008/6009 OEM device is intended to be used as a component of a larger
system. National Instruments can help developers meet their compliance requirements.
The end product supplier, however, is responsible for conforming to any and all compliance
requirements.
This document provides information about the dimensions, connectors, and
other components of the National Instruments USB-6008/6009 OEM
device. For more information about the device, refer to the USB-6008/6009
User Guide and Specifications document available at

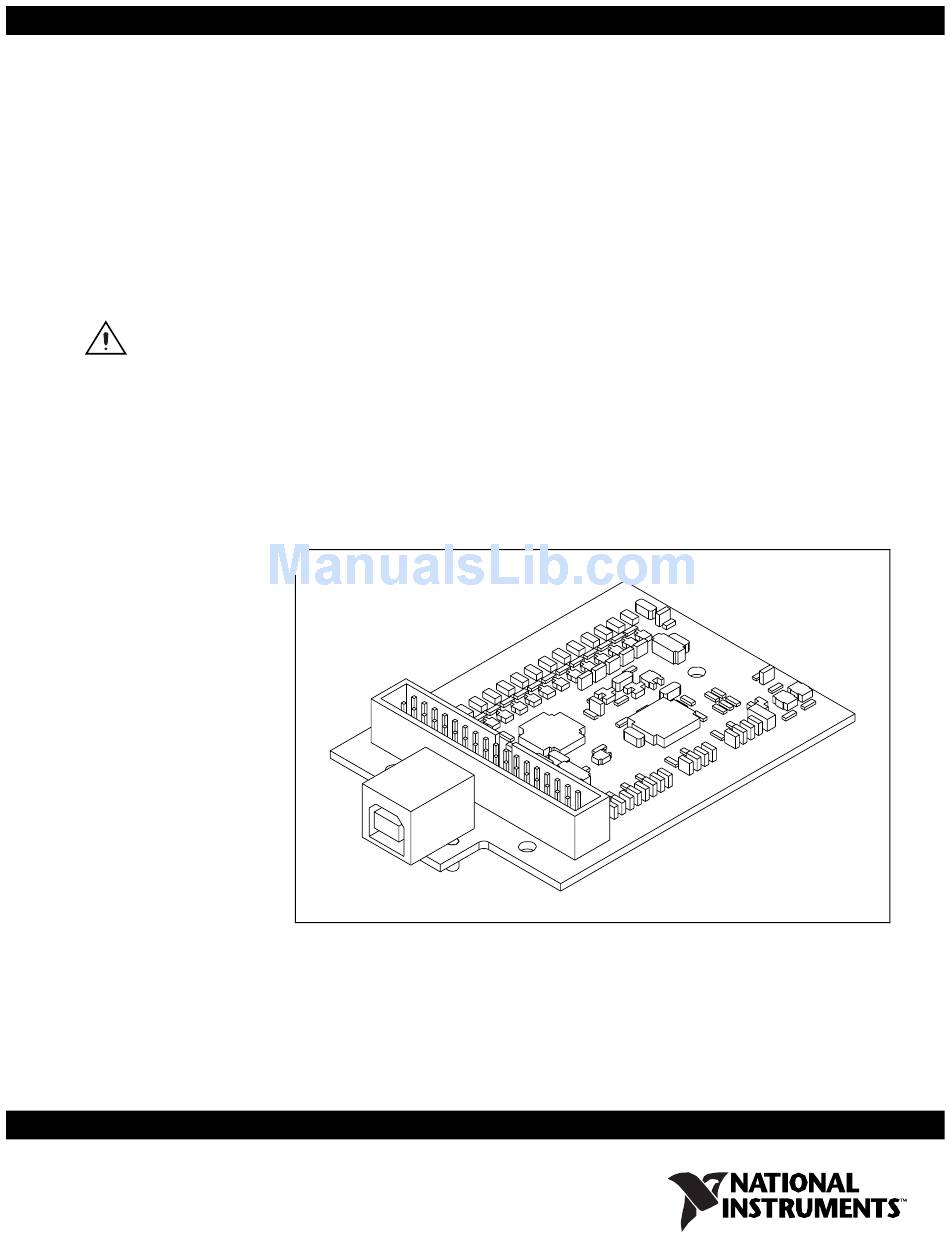

Figure 1. USB-6008/6009 OEM Device
.
ni.com/manuals
Advertisement
Table of Contents
Related Manuals for NI USB-6008
Summary of Contents for NI USB-6008
- Page 1 Caution CE marking compliance claims made for the NI USB-6008/6009 OEM devices. The NI USB-6008/6009 OEM device is intended to be used as a component of a larger system. National Instruments can help developers meet their compliance requirements. The end product supplier, however, is responsible for conforming to any and all compliance requirements.
- Page 2 0.119 (3.02) 0.000 (0.00) –0.106 (–2.69) –0.150 (–3.81) –0.575 (–14.61) –0.725 (–18.42) 1.990 (50.55) 0.516 (13.11) 0.433 (11.00) 0.063 (1.60) 0.000 (0.00) –0.160 (–4.06) 2.250 (57.15) Figure 2. USB-6008/6009 OEM Device Dimensions in Inches (Millimeters) NI USB-6008/6009 OEM User Guide ni.com...
- Page 3 I/O Connector Figure 3 shows the USB-6008/6009 OEM device I/O connector pinout. AI signal names are shown in single-ended mode. Differential mode signal names are in parentheses. 34 33 PFI 0 +5 V D GND 32 31 P1.3 P1.2 30 29 P1.1...
-
Page 4: Signal Descriptions
USB-6008/6009 User Guide and Specifications document available for download at . Table 1 describes additional signals on ni.com/manuals the I/O connector of the OEM devices. Note The +2.5 V signal is not available on the USB-6008/6009 OEM device. Table 1. Signal Descriptions Signal Name Reference Direction Description... -
Page 5: Using The 34-Pin Connector With A Board Mount Socket
Using the 34-Pin Connector with a Board Mount Socket The USB-6008/6009 OEM device can be mounted to a motherboard using the 34-pin connector, as shown in Figure 4 and Figure 5. 1 Board Mount Socket 4 USB-6008/6009 OEM Device 2 34-Pin Connector... -
Page 6: Connecting To Usb
Connecting to USB You can use the USB connector on the USB-6008/6009 OEM device to connect to the USB host. In this case, leave the D+ and D– signals (on the 34-pin connector) and VBUS unconnected. If +5 V is needed, supply it from the 34-pin connector. -
Page 7: Device Components
Device Components Table 4 lists the components used for interfacing and interacting with the USB-6008/6009 OEM device. Table 4. NI USB-6008/6009 OEM Device Components Reference Designator(s) Manufacturer Part Component on PCB Manufacturer Part Number Specifications USB connector J002 787780-1 —... -
Page 8: External Voltage
USB-6008/6009 OEM Device Specifications Most specifications of the USB-6008/6009 OEM device are listed in the USB-6008/6009 User Guide and Specifications document on . The following sections contain exceptions to the main ni.com/manuals specifications: External Voltage 2.5 V output is not available. -
Page 9: Where To Go For Support
United Kingdom 44 0 1635 523545 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies.
