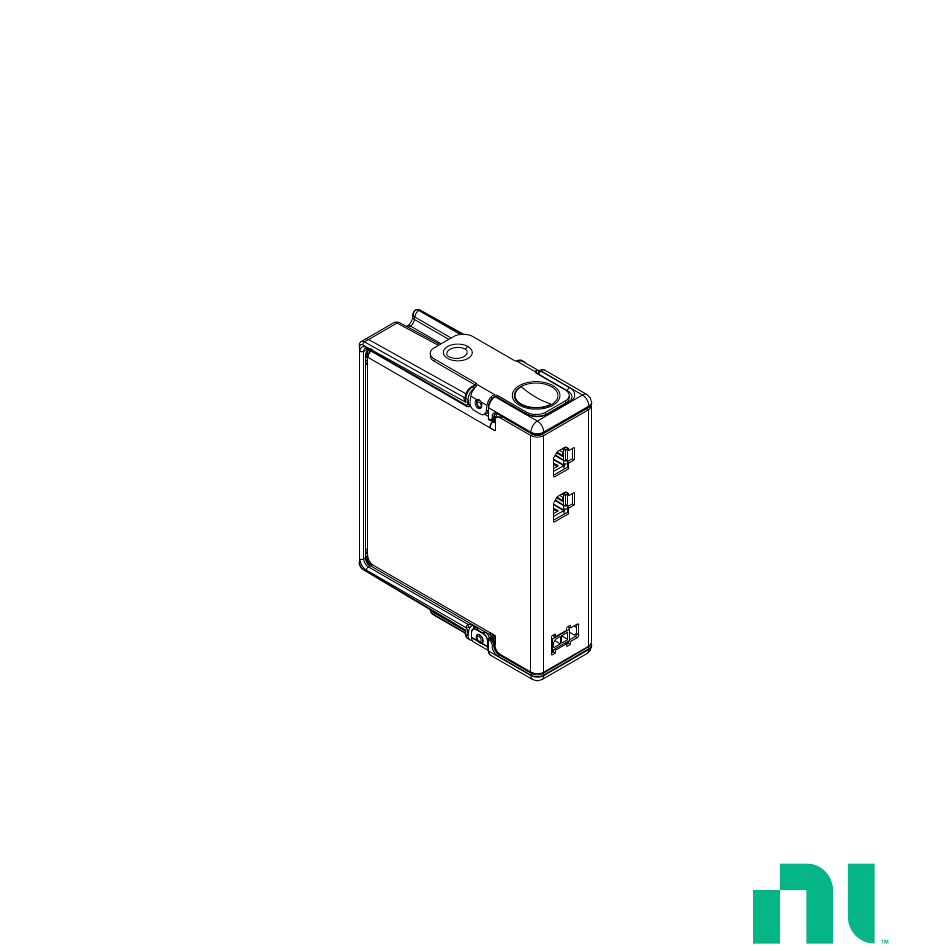

- Page 1 GETTING STARTED GUIDE NI 9860 2-Port, C Series Vehicle Multiprotocol Interface Module This document explains how to connect to the NI 9860.
-
Page 2: Safety Guidelines
The guidelines in this document are specific to Note the NI 9860. The other components in the system might not meet the same safety ratings. Refer to the documentation for each component in the system to determine the safety and EMC ratings for the entire system. -
Page 3: Safety Guidelines For Hazardous Locations
Safety Guidelines for Hazardous Locations The NI 9860 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4 and Ex nA IIC T4 hazardous locations; and nonhazardous locations only. - Page 4 II 3G and is suitable for use in Zone 2 hazardous locations, in ambient temperatures of -40 °C ≤ Ta ≤ 70 °C. If you are using the NI 9860 in Gas Group IIC hazardous locations, you must use the device in an NI chassis that has been evaluated as Ex nC IIC T4, Ex IIC T4, Ex nA IIC T4, or Ex nL IIC T4 equipment.
- Page 5 NI-XNET CAN/LIN Transceiver Cables page on ni.com. The NI 9860 requires an external power supply of +9 to +30 V to power the transceiver cables. Supply power to the NI 9860 V connector on the module front panel using the supplied power cable.
- Page 6 CompactRIO system. The following figure shows the NI 9860 with Port 1 connected to an NI-XNET CAN HS/FD Transceiver Cable and the two-position connector connected to the power cable. The breaks in the cables represent additional cable length.
- Page 7 Figure 1. NI 9860 with Power and Transceiver Cables Attached NI 9860 Hardware Overview The NI 9860 is a two-port C-Series module based on the XNET architecture. Users can choose the physical bus protocol by plugging in the corresponding transceiver cable. The NI 9860...
- Page 8 Ext Pwr Supply Pwr Sup Required Inserting and Removing the NI-XNET Transceiver Cable The NI-XNET Transceiver Cable connects to a host device with an active latching connector. To connect the NI-XNET 8 | ni.com | NI 9860 Getting Started Guide...
- Page 9 Pull Cable Inserting and Removing the Power Cable The NI 9860 connects to the provided power cable with an active latching connector. To connect the power cable, push the end of the power cable into the two-position connector until the internal...
- Page 10 Figure 4. Removing the NI 9860 Power Cable Push Lock Ejector Down Pull Power Cable 10 | ni.com | NI 9860 Getting Started Guide...
- Page 11 NI. NI corporate headquarters is located at 11500 N Mopac Expwy, Austin, TX, 78759-3504, USA. NI 9860 Getting Started Guide | © National Instruments Corporation | 11...
- Page 12 . You can find information about end-user license agreements (EULAs) and third-party patents legal notices in the readme file for your NI product. Refer to the Export Compliance Information at for the NI global trade compliance policy and how to obtain ni.com/legal/export-compliance...
