Step 2 — Connect the System
Caution
: Be certain all cables are connected BEFORE applying
power. Always power down BEFORE disconnecting cables.

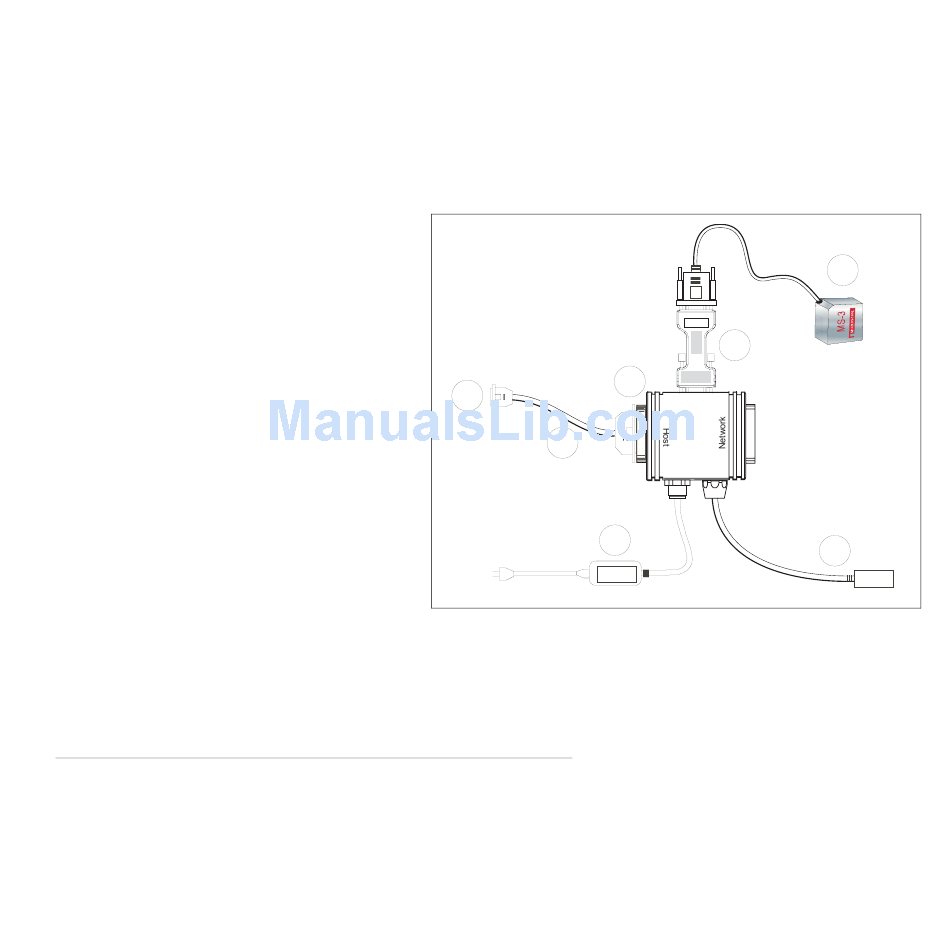

To connect the system, do the following:
1. Connect the reader (1) to
the "SCANNER" connector
on the IC-331 interface
converter (2) using the
attached 3-foot cable.
2. Connect the IC-331
directly to the "SCANNER"
15 pin connector on the
IB-131 (3).
3. Connect the Host Com-
puter (4) to the IB-131
"HOST" 25-pin connector
via the Null Modem Con-
figuration Cable (5).
4. Connect Power Supply
(6) to the IB-131
"POWER" connector.
5. Apply power to the system.
1. Since power supply is included in the single cabling assembly, the reader cable
should not exceed 3 feet. RS-232 cabling from the IB-131 to the host can be up
to 47 feet provided it does not include power input
2. If using your own null modem RS-232 host cable, be certain that the host's TxD
connects to the reader's RxD and the reader's TxD connects to the host's RxD.
MS-3 CCD Reader Quick Start Guide
1
4
2
2
3
Scanner
5
6
Hardware Connections
1
7
3
