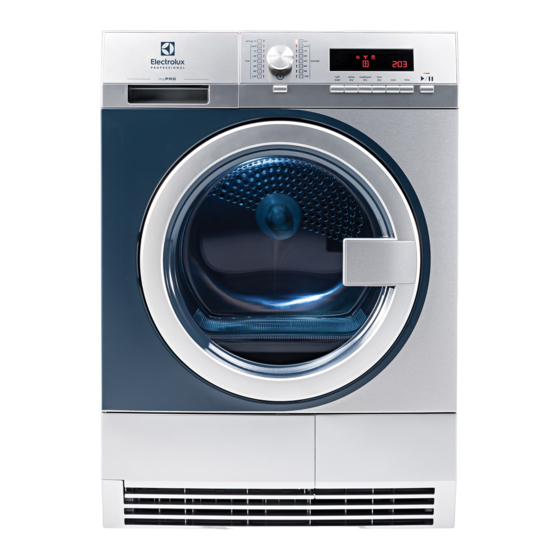

Electrolux TE1120 User Manual
Electrolux TE1120 User Manual

Electrolux TE1120 User Manual

Hide thumbs Also See for TE1120:


User Manual
Tumble Dryer
CAUTION: Read the instructions before
using the appliance.
Original Instructions.


Table of Contents

Summary of Contents for Electrolux TE1120

  • Page 1 TE1120 User Manual Tumble Dryer CAUTION: Read the instructions before using the appliance. Original Instructions.
  • Page 2: Table Of Contents

    13. TECHNICAL DATA...................20 WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.
  • Page 3 ENGLISH 1.1 Children and vulnerable people safety WARNING! Risk of suffocation, injury or permanent disability. This appliance can be used by children aged from 8 • years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
  • Page 4 Read it carefully before installation (Refer to the Installation leaflet). Do not install or use the appliance where the • temperature is less than 5°C or higher than 35°C.
  • Page 5: Electrical Connection

    ENGLISH 1.3 Electrical connection WARNING! Risk of fire and electric shock. The appliance must be correctly earthed. The • manufacturer is not responsible for the consequences of an inadequate earthing system. Make sure that the parameters on the rating plate are •...
  • Page 6 Do not dry unwashed items in the tumble dryer. • Items that have been soiled with substances such as • cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
  • Page 7 1.8 Service Only original spare parts can ensure the safety • standards of the appliance. Only repairs undertaken by an Electrolux approved • service technician are covered by the guarantee. 1.9 Compressor WARNING! Risk of damage to the appliance.
  • Page 8: Product Description

    This system must stay tight. The damage of the system can cause a leakage. 2. PRODUCT DESCRIPTION Water container Adjustable feet Control panel Condenser door Internal light Condenser cover Appliance door Locks for condenser cover Filter Rating plate...
  • Page 9: Accessories

    ENGLISH 3. ACCESSORIES 3.1 Stacking kit water container must stay in the appliance. The installed hose must be on the height from minimum of 50 cm to maximum of 1 m from floor level. The hose cannot be in loop. Decrease the length of the hose if necessary.
  • Page 10: Control Panel

    If the appliance is set in a public place, it can be connected to a coin operated machine. Coin meter is distributed and installed only by the authorized Electrolux service. 4. CONTROL PANEL Programme dial Programme indicators Display ON/OFF button with the Auto Off...
  • Page 11: Coin Operated Machines

    ENGLISH Symbol on the display Symbol description half load dryness - extra dry dryness - cupboard dry dryness - iron dry indicator: drain the water container indicator: clean filter indicator: do the check of the heat exchanger indicator: drying phase indicator: cooling phase indicator: crease guard phase time dry option on...
  • Page 12: Options

    Automatic pro- Description Load grammes Cotton and terry - most efficient in terms of energy consumption. Normal/medium temperature. 8 kg The programme will stop when preset dry- ness/selected option is achieved (Extra dry, Cupboard dry, Iron dry). Cotton and terry.
  • Page 13: Before First Use

    ENGLISH Care Time Extends anti-crease phase (30 minutes) at Lets the user to increase time of drying in the end of the drying cycle to 90 minutes. 5 min. steps. This option prevents laundry from creases. Laundry can be removed during the anti- crease phase.
  • Page 14: Programme End

    9.4 Auto Off function 9.7 Starting a program To decrease the energy consumption, the Auto Off function turns the appliance off automatically: • if the Start/Pause touch button is not touched within 5 minutes. • 5 minutes after a cycle ends.
  • Page 15: Hints And Tips

    ENGLISH 10. HINTS AND TIPS 10.1 Ecological hints 5. Push the Start/Pause button again and again until you set • Spin the laundry well before drying. necessary degree. • Do not exceed the load sizes which are 6. To memorise the setting, push at the specified in the programs chapter.
  • Page 16 2. Push the button. 6. If necessary remove fluff from the filter socket and gasket. You can use a vacuum cleaner. Put the filter inside the filter socket. 3. Open the filter. 11.2 Emptying the water container Empty the condensed water container after each drying cycle.
  • Page 17: Condenser Door

    ENGLISH 2. Pull the plastic connection out and drain the water into a basin or equivalent receptacle. 5. Catch the handle and pull the 3. Push the plastic connection back in condenser out from the bottom and place the water container back compartment.
  • Page 18: Cleaning The Control Panel

    Use a standard neutral soap detergent to Use a moist cloth to clean. Dry the clean the inner surface of the drum and cleaned surfaces with a soft cloth. drum lifters. Dry the cleaned surfaces with CAUTION! a soft cloth.
  • Page 19 ENGLISH Possible cause Remedy Problem Incorrect programme selection. Do the selection of the applicable programme. The filter is clogged. Clean the filter. Too high volume of the load. Obey the maximum load volume. The airflow grill is clogged. Clean the airflow grill in the bot- Unsatisfactory tom of the appliance.
  • Page 20: Technical Data

    Possible cause Remedy Problem The filter is clogged. Clean the filter. Too high the laundry load. Obey the maximum load. Drying cycle too The laundry not spun sufficiently. Spin correctly the laundry. long Very high room temperature - this If possible, lower the room tem- is not the appliance malfunction.
  • Page 21 ENGLISH Level of protection against ingress of solid IPX4 particles and moisture ensured by the pro- tective cover, except where the low volt- age equipment has no protection against moisture 1) With reference to EN 61121. 8 kg of cotton centrifuged at 1000 rpm. 2) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes.
  • Page 22 www.electrolux.com...
  • Page 23 ENGLISH...
