CHAPTER 2. ANATOMY AND FUNCTIONS
2.

Anatomy and Functions

2.1

The Interface

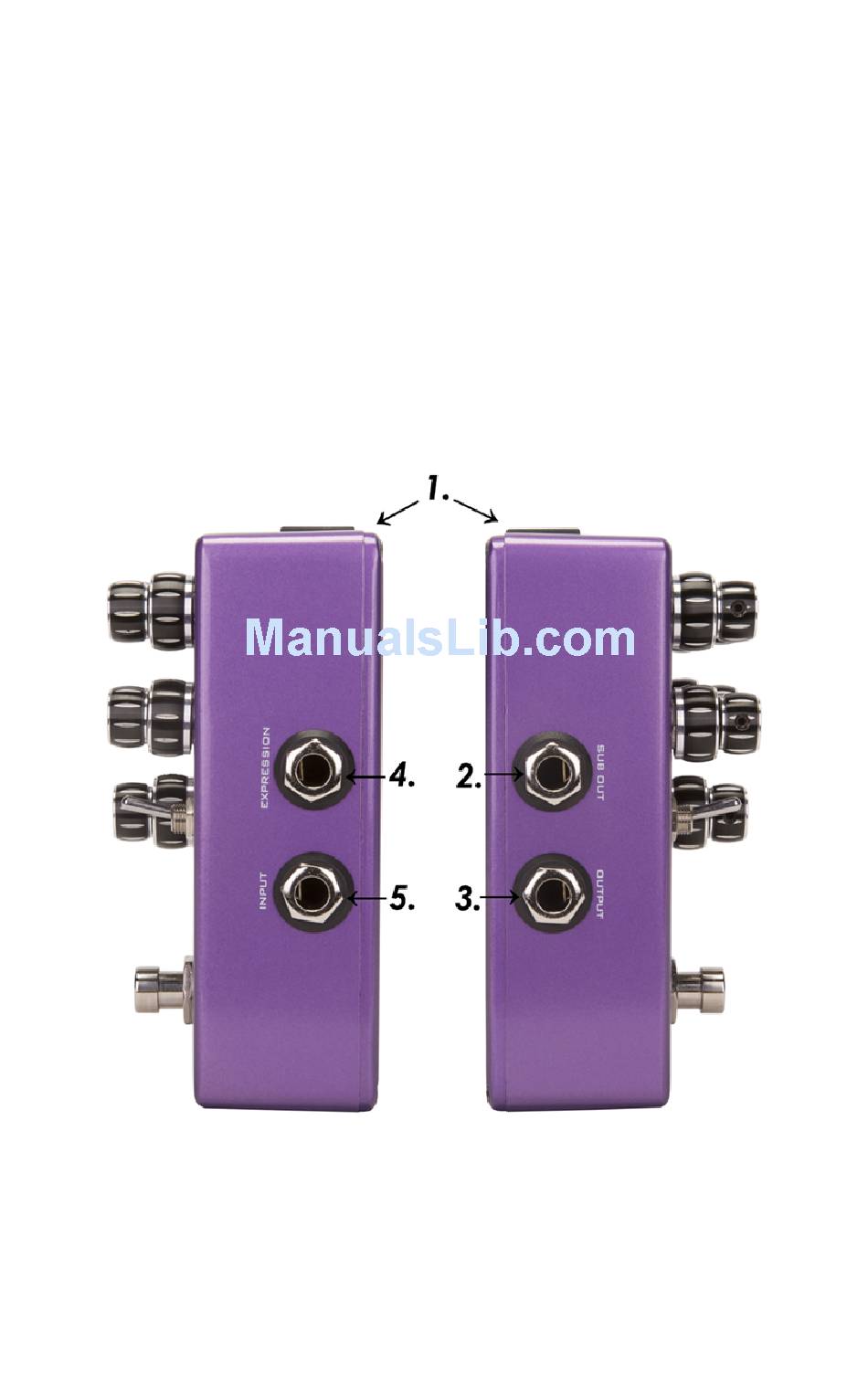

Jacks

1. DC 18V - Mothership 2 requires 18VDC power @ 300mA using
a 2.1mm connector with negative tip polarity.
2. SUB OUT - The SUB jack is an auxiliary output for low fre-
4
