Smart Manager
Never connect the Smart Manager to
the Internet.
We assume no responsibility for any
problems resulting from connection to the
Internet.
Prohibited
Only local area connection is allowed for
the Smart Manager.

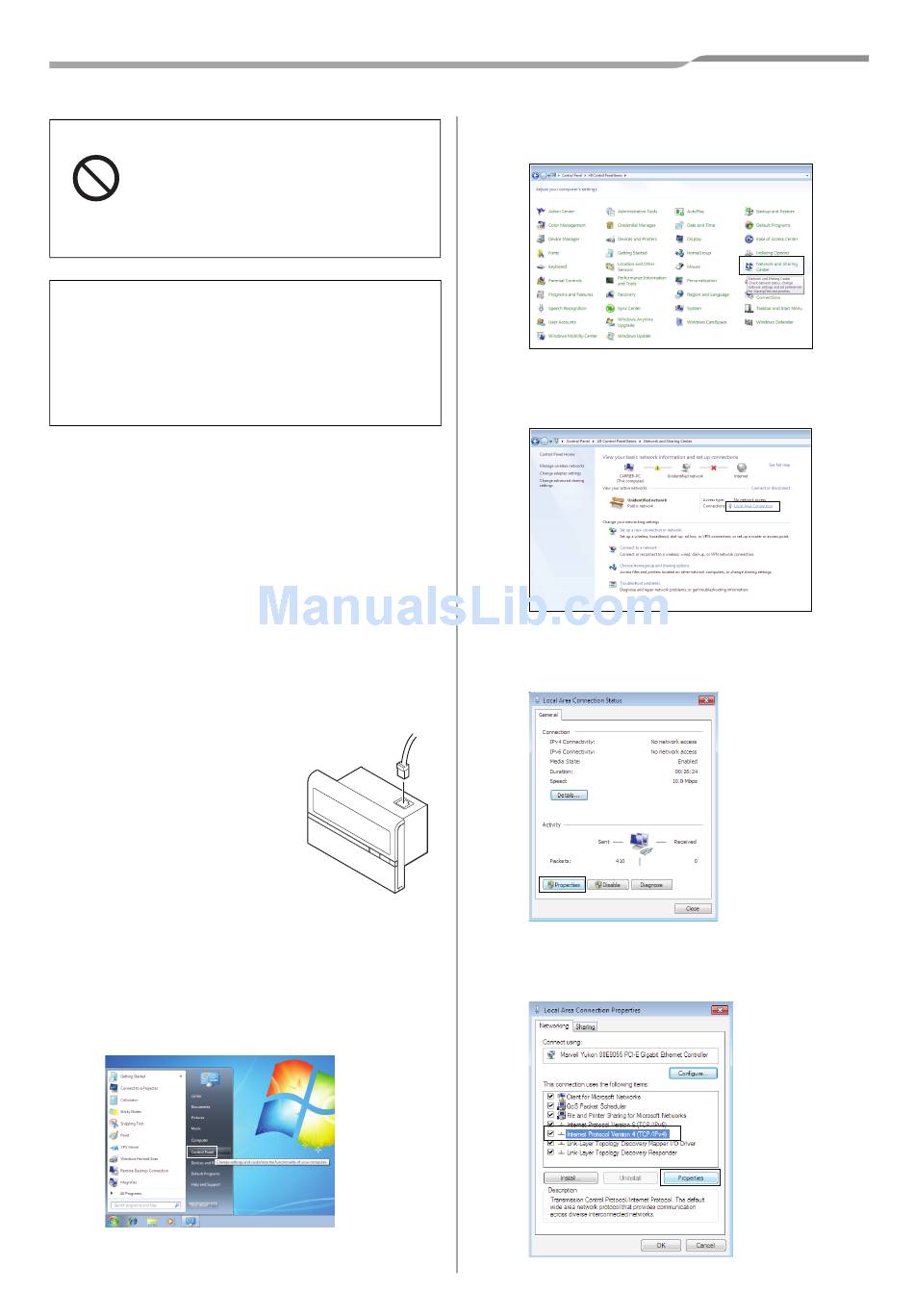

This guide describes the setting procedure for
connecting the Smart Manager to your personal
computer (abbreviated to "PC" hereinafter) via
the network.
PC operation to monitor and control air
conditioners is detailed in the Owner's Manual
(Web Version).
1. System Configuration of PC
The PC to be connected must meet the following
system configuration conditions so that the Smart
Manager operates normally.
<Operating system>
• Microsoft Windows XP
• Microsoft Windows Vista
• Microsoft Windows 7
<Hardware>
• Screen resolution 1024 × 768 pixels or more
<Browser>
• Firefox 2.0, 3.0, 3.5 or 3.6
• Internet Explorer 7.0 or 8.0
2. Connecting LAN
Cable
Connect the LAN cable to the
connector on the top of the
Smart Manager.
3. Client PC Settings
3-1. Setting IP Address
1) Log on to the system with the PC
administrator's account.
2) Click [Start] -> [Control Panel]. (Fig.1)
Fig.1
-EN
2
Network Configuration Guide
3) Click [Network and Sharing Center]. (Fig.2)
Fig.2
4) Click "Local Area Connection" of View your
active networks. (Fig.3)
Fig.3
5) Click [Properties] in the Local Area Connection
Status window. (Fig.4)
Fig.4
6) Select the "Internet Protocol Version 4 (TCP/
IPv4)" checkbox, and click [Properties]. (Fig.5)
Fig.5
