AMX HPX-N102-USB-PC Quick Start Manual

Overview
The HPX-N102-USB-PC Dual Charging USB Module (FG553-13) can be used in
conjunction with Hydraport HPX-600/900/1200 Connection Ports as well as the
HPX-1600 Retractable Connection Port.
This module provides two user-accessible USB Power connections on the face of the
module, providing 2.1A USB power connections from the user's equipment to a
remote power supply (FIG. 1):

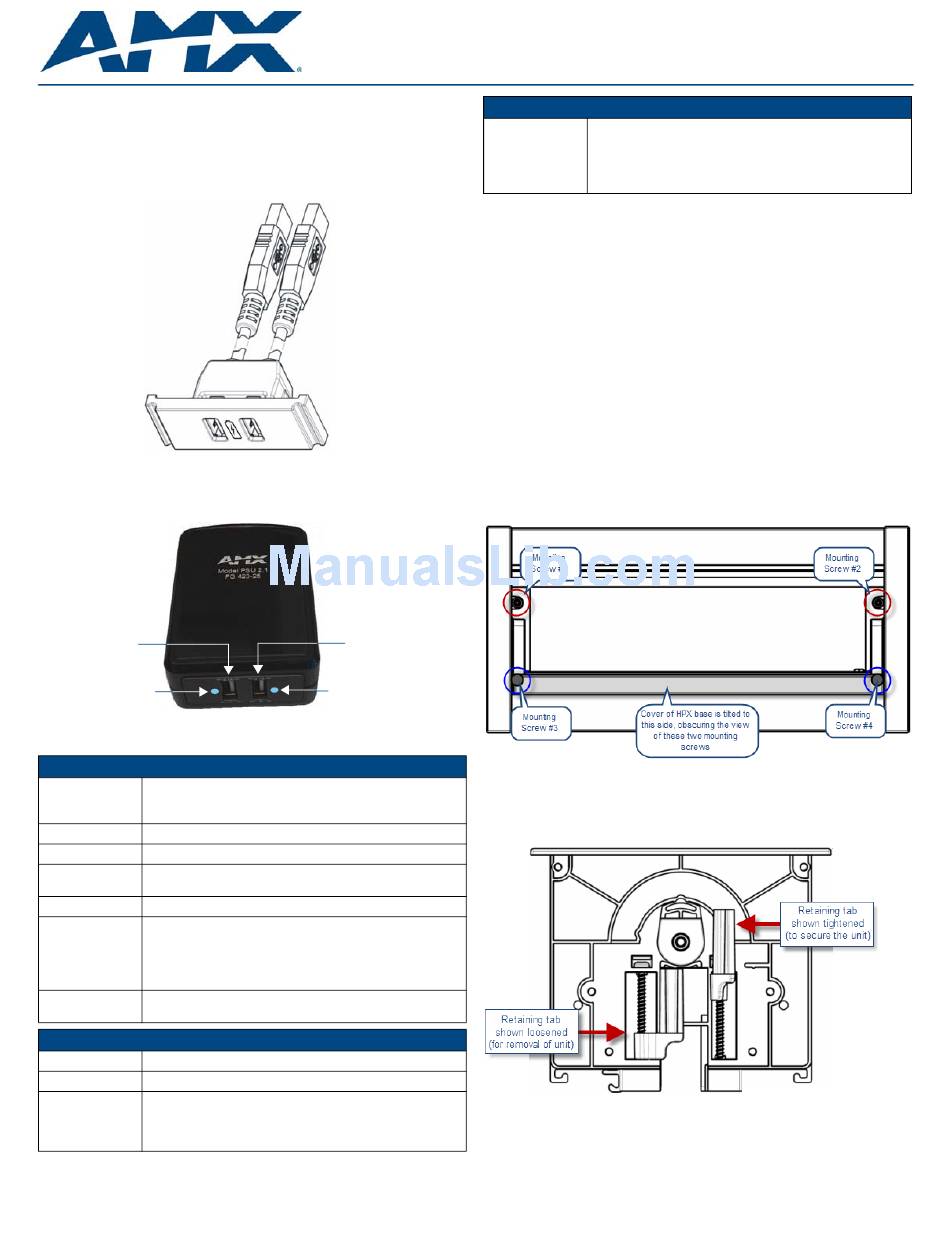

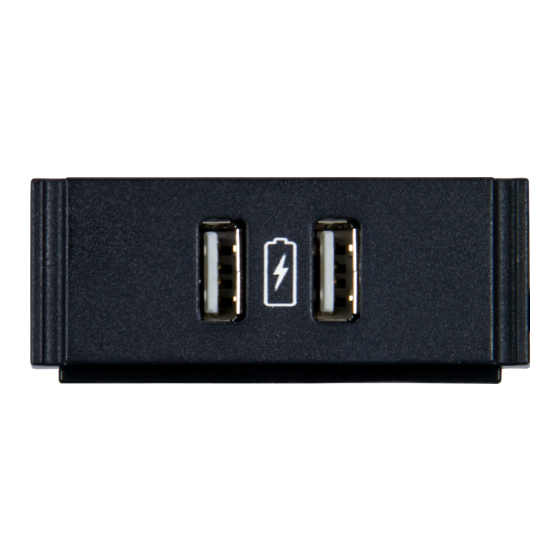

FIG. 1 HPX-N102-USB-PC Dual USB Power Module
The HPX-N102-USB-PC receives it's power from the (included) PSU2.1 USB Power
Supply (FG423-25). The PSU2.1 features two powered USB ports that provide up to
2.1A max per port (4.2A total across both ports):
USB Port
Power Status LED
(lights to indicate power)
FIG. 2 PSU2.1 - 2-port USB Power Supply
Product Specifications
HPX-N102-USB-PC Module - Specifications
Dimensions Module: 0.98" x 2.05" x .276" (25 mm x 66 mm x 7 mm)
(HWD):
Note that "Depth" (D) represents the depth of the module faceplate
relative to the front of the connection ports.
Weight: .35 lbs (0.16 Kg)
USB Ports: (2) Type A USB Ports
USB Cables: (2) USB cables 6' (1.83 m) - connect the module to the USB Ports
on the PSU2.1 USB Power Supply
Enclosure: Matt black finished face plate (Polycarbonate plastic).
Compatibility: • HPX-600: 6 Module Connection Port (FG560-01-SL/BL)
• HPX-900: 9 Module Connection Port (FG560-02-SL/BL)
• HPX-1200: 12 Module Connection Port (FG560-03-SL/BL)
• HPX-1600: 16 Module Retractable Connection Port
(US - FG550-01-SL/BL, International - FG550-SL/BL)
Included
• PSU2.1 USB Power Supply (FG423-25)
Accessories:
PSU2.1 USB Power Supply - Specifications
Dimensions (HWD): 1.26" x 2.17" x 3.15" (3.2 cm x 5.5 cm x 8 cm)
Weight: .25 lbs (93.3 g)
2 USB Ports/LEDs: • 2 Charging Ports provide 2.1A USB charging (max per port)
• 4.2A total is provided across both ports.
• Blue LEDs on each USB port light to indicate that power is
available.
HPX-N102-USB-PC
PSU2.1 USB Power Supply - Specifications (Cont.)
Included
Accessories:
Installation (HPX-600/900/1200 Connection Ports)
The following instructions describe installing the HPX-N102-USB-PC into Hydraport
HPX-600/900/1200 Connection Ports.
For instructions on installing modules into the HPX-1600 Retractable Connection Port
(US and International versions), refer to the HPX-1600 Installation Manual - available
to view or download from www.amx.com.
Caution: Only use a hand-held screw driver for the mounting instructions in this
Cable length = document. Over-tightening the screws can hinder performance or damage the
6 feet (1.83 m)
product.
1. For Existing HPX Installations, First Unmount the HPX Base
For new HPX installations, skip to Step 2.
For existing HPX installations, the HPX Base Assembly must be un-mounted from the
surface before the HPX-N102-USB-PC module can be installed:
1.
2.
USB Port
Power Status LED
(lights to indicate power)
FIG. 3
3.
FIG. 4
Quick Start Guide
Hydraport Dual Charging USB Module
4 Power Plug Adapters:
• NEMA 1-15 (for North America)
• BS 1363 (for UK and Ireland)
• CEE 7/16 Europlug (for most European countries)
• AS/NZS 3112 (for Australia and New Zealand)
Cut/remove any cable ties that would restrict the removal of the HPX Base
Assembly.
Loosen the four mounting screws (located inside and at each end of the HPX
base assembly), in order to rotate the retaining tabs from under the mounting
surface.
Note that when the cover of the HPX base is open, only two of these screws are
visible. To access the other two mounting screws, tip the cover over to the
opposite open position (see FIG. 3).
HPX Base Assembly (shown mounted) - Mounting Screws Locations
Once the retaining tabs have been rotated out from under the mounting surface,
the HPX assembly can be be lifted away from the mounting surface.
FIG. 4 provides a cutaway view of the End Cap, showing the retaining tabs in
both the loose position and the tightened (secure) position:
HPX Base Assembly (shown mounted) - Mounting Screws Locations
