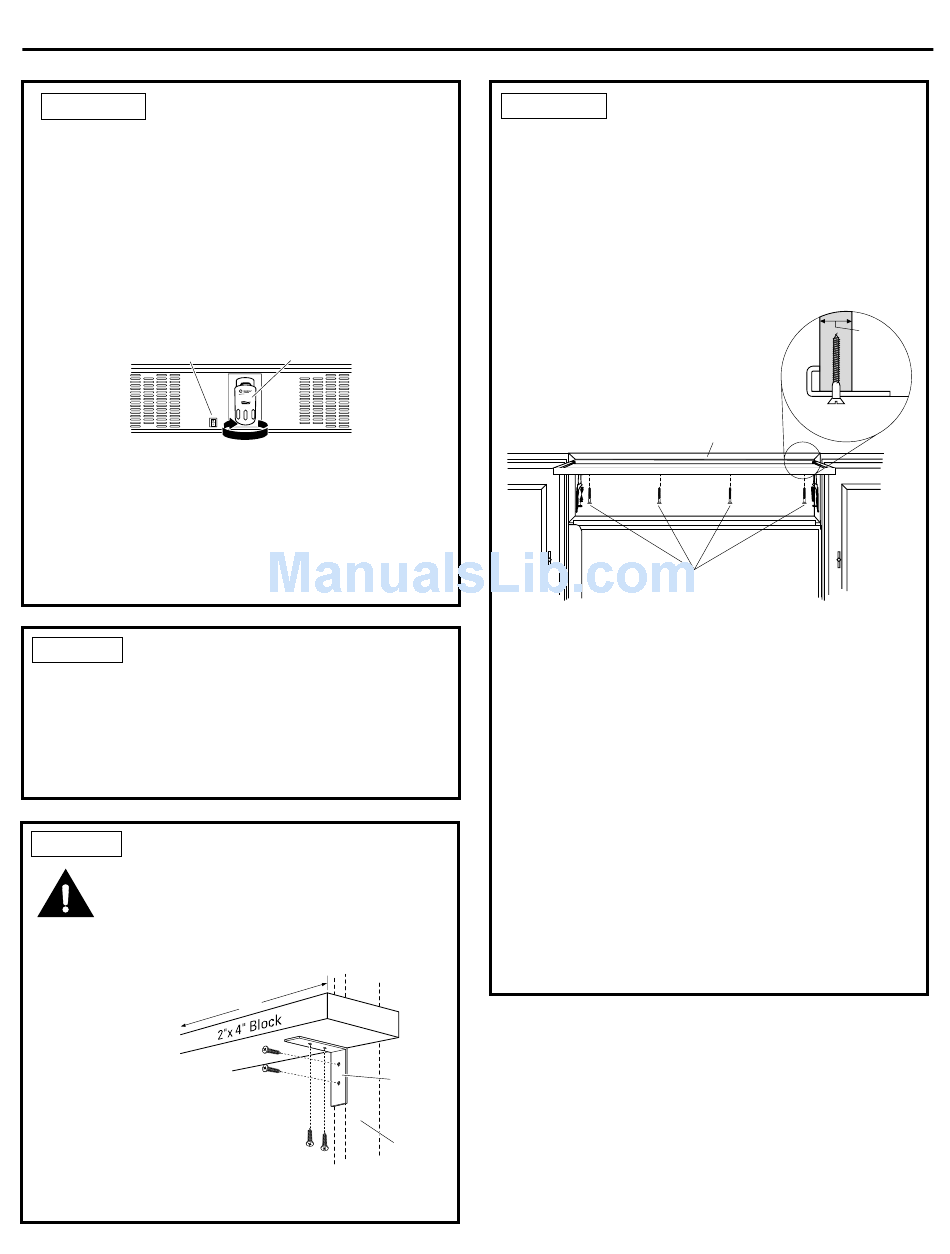

STEP 2A WATER LINE
INSTALLATION WITH
A REVERSE OSMOSIS
SYSTEM
SKIP THIS STEP WHEN NOT USING AN RO SYSTEM
NOTE: If the water supply to the refrigerator is from a
Reverse Osmosis Water System use the refrigerator's
filter bypass plug. Using the refrigerator's water filtra-
tion cartridge with the RO filter can result in hollow
ice cubes.
Master
Power Switch
Rotate Clockwise
• Open the top grille to view the filtration cartridge.
Rotate the filtration cartridge clockwise until
removed.
• Insert filter bypass plug. Rotate the filter bypass plug
counterclockwise until tightly secured in place.

STEP 3 INSTALL SIDE PANELS

SKIP THIS STEP WHEN NOT USING SIDE PANELS
If you are using 1/4" side panels, they should be
inserted into the case trim. Fasten the panels to the
refrigerator with the 3M Dual Lock adhesive strips
before setting refrigerator in place.

STEP 4 INSTALL ANTI-TIP BRACKETS

WARNING:
The refrigerator is top-heavy and must be secured to
prevent the possibility of tipping forward.
• Cut a 2" x 4" wood
block 36" long,
and secure the
block to the
mounting
brackets
provided, using #12
or #14 wood screws.
• Secure the bracket
with a wood block to
the back wall so that it is 82"
(or the rear installation height) from the finished floor.
Installation Instructions
Water Filter
To Remove
ANTI-TIP
PRECAUTIONS
36"
Positioned
Anti-Tip
Wood Screws
Bracket
Mounted into
Vertical
Wall Stud
Wood Studs
STEP 4A ALTERNATE ANTI-TIP
SKIP THIS STEP WHEN USING ANTI-TIP BRACKETS
All Profile built-in refrigerators are top heavy.
They must be secured to prevent the possibility of
tipping forward. Use this alternative method to
secure the refrigerator whenever steel wall studs
are encountered.
• Adjust height of refrigerator to match installation
cutout opening 83-1/2" to 84-1/2". The refrigerator
must be level and plumb with cabinets. The top
case trim at the front is 2-1/8" higher than the rear
and will overlap upper cabinets or cabinet trim.
• Open grille panel to access the top case trim.
• Use a 3/16" bit to drill 4 evenly spaced clearance
holes through the metal top case trim.
• Use a 1/16" bit to drill pilot holes through the
metal clearance holes and into wood soffit. The
holes should be centered in the soffit or a 3/4"
minimum wood brace. The brace spanning the
enclosure must be securely fastened to cabinets
on both sides.
• Install four, 1-1/2" drywall screws into the pilot holes.
(Behind
Drywall)
14
PRECAUTIONS
Top Case Trim
Install (4) 1-1/2" Drywall Screws
Through Trim and Into Soffit
or 3/4" Min. Wood Brace
3/4"
Min.
Side View
Top Case Trim
