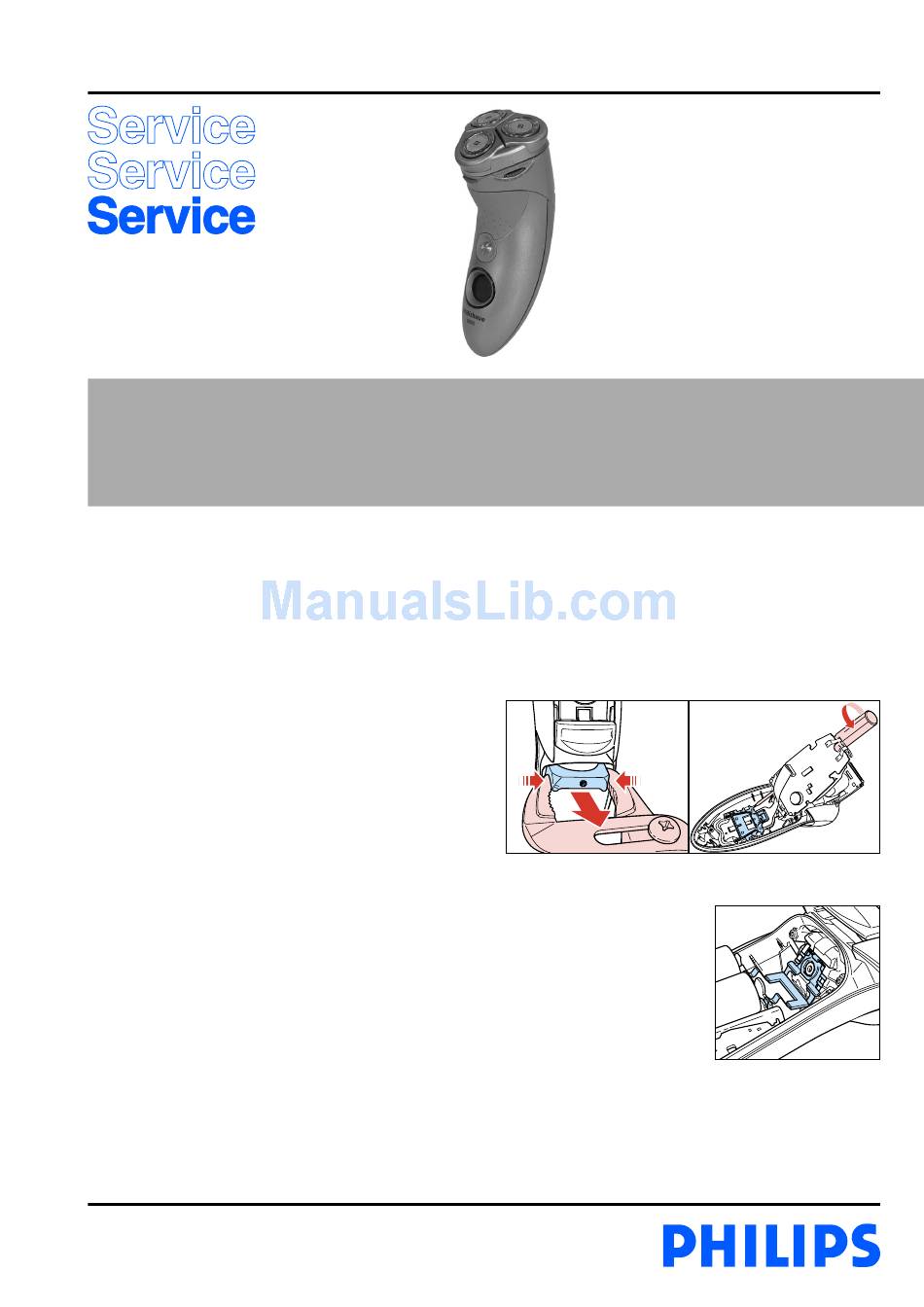

Philips SENSOTEC HQ8890 Service Manual
Hide thumbs Also See for SENSOTEC HQ8890:

Advertisement

Quick Links

Philips Domestic Appliances and Personal Care
Service Manual

PRODUCT INFORMATION

General:

- Rechargeable / Main shaver
- Constant motor voltage
- Electronic push on/off
- Washable

Safety information

- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.

TECHNICAL INFORMATION

- Voltage
- Motor voltage
- Speed of cutters
- Shaving heads
- Battery capacity indication : LCD
- Battery full indication
- Battery low indication
- Charge indication
- Battery
- SAP coding

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

Disassembly:

- Remove shaving unit, to prevent damages during
repairing.
- Remove screws A1 (2x).
- Take cover from housing (trimmer must be opened).
- Remove bracket large (17). (see fig. 1)
Published by Philips Domestic Appliances and Personal Care
04/08
: 100 - 240 Volt 50 - 60 Hz
: 3,6 Volt
: > 2100 r.p.m.
: HQ8 - 4222 036 05820
: LCD
: LCD + audible
: LCD
: AA pack NiMH (green)
: HQ8890
Printed in the Netherlands
- The PCB-board can now be removed out of the housing.
- Remove the connecting strip from the motor by
dis soldering.
- Remove screws B1 (2 x), now the motor and hairchamber
can be removed out of the housing.
- Detach the motor springs (14) from the gearwheel unit
with a small screwdriver.
- For removing the LCD you need a torx screwdriver, set it
under the LCD bracket and turn the screwdriver. (see fig. 2)
fig. 1

Assembly:

- Think by assembly on the
hooks from the connecting
strip assy. (see fig. 3)

REPAIR INSTRUCTION

- No specific issues

OPTIONAL (accessories)

- No specific issues
© Copyright reserved
Shaver
HQ8890
SENSOTEC
fig. 2
fig. 3
Subject to modification
