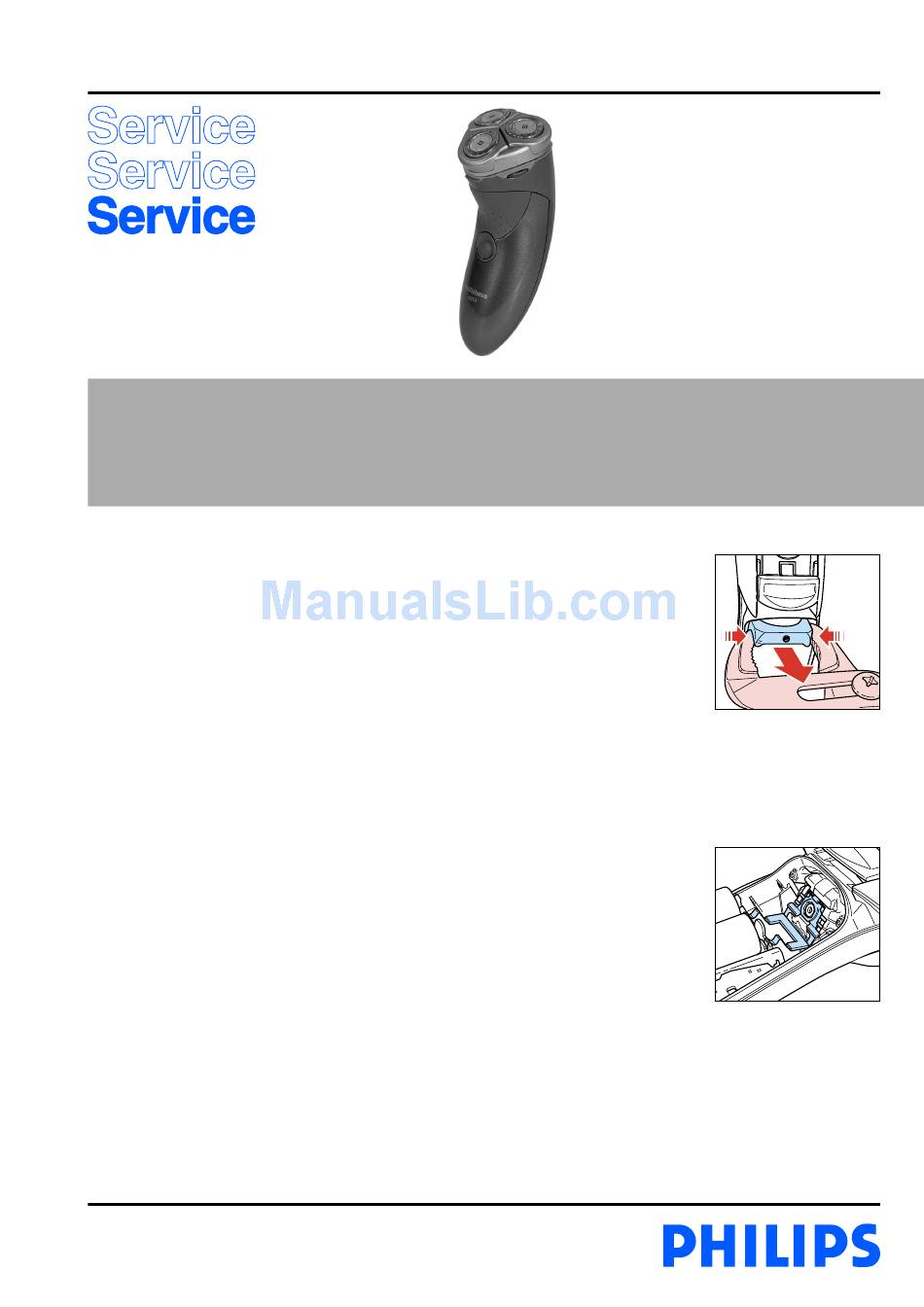

Philips SENSOTEC HQ8850 Service Manual

Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
General:
- Rechargeable / Main shaver
- Constant motor voltage
- Electronic push on/off
- Washable
Safety information
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Voltage
- Motor voltage
- Speed of cutters
- Shaving heads
- Battery full indication
- Battery low indication
- Charge indication
- Battery
- SAP coding
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
Disassembly:
- Remove shaving unit, to prevent damages during
repairing.
- Remove screws A1 (2x).
- Take cover from housing (trimmer must be opened).
Published by Philips Domestic Appliances and Personal Care
04/08
: 100 - 240 Volt 50 - 60 Hz
: 2,4 Volt
: > 2100 r.p.m.
: HQ8 - 4222 036 05820
: LED
: LED (red)
: LED (green)
: AA pack NiMH (green)
: HQ8850
Printed in the Netherlands
- Remove bracket large (17).
(see figure 1)
- The PCB-board can now be
removed out of the housing.
- Remove the connecting strip
from the motor by
dis soldering.
- Remove screws B1 (2 x), now
the motor and hairchamber
can be removed out of the
housing.
- Detach the motor springs (14) from the gearwheel unit
with a small screwdriver.
Assembly:
- Think by assembly on the
hooks from the connecting
strip assy. (see figure 2)
REPAIR INSTRUCTION
- No specific issues
OPTIONAL (accessories)
- No specific issues
© Copyright reserved
Shaver
HQ8850
SENSOTEC
figure 1
figure 2
Subject to modification
