Tektronix Y400 Setup Manual

Warning!
To avoid injury, do not connect this product to any
source which may be subject to the effects of
lightning.
Important Safety Information
Review the following safety precautions to avoid
injury and prevent damage to this product or any
products connected to it.
Service. Only qualified personnel should perform
service procedures.
Power. Use only the Power cords, Desk Top Power
Supplies, Batteries, or In-Vehicle Power Adapters
specified for this product and certified for the country
of use. Observe all ratings marked on these parts.
Intended Use. The Y400 is intended for use only with
the specified application modules available from
Tektronix. Important safety information is contained
in the application module user manuals.
Read Application Module Manuals. Before operating
the Y400 NetTek Analyzer Platform, refer to the
application module manuals for:
H Detailed instructions on installing and charging
the battery. Recharge batteries for the recom-
mended charge cycle only.
H System specifications, environmental ratings, and
electrical ratings.
H General safety warnings and cautions related to
operating the system and an explanation of the
safety symbols marked on the product.
H Proper use of controls and settings, and proper
connection of inputs and outputs.
H Proper use of the product's shoulder strap, strand
hook, and other accessories.
H Proper application module installation.
H Proper system maintenance.
Copyright E Tektronix, Inc. All rights reserved

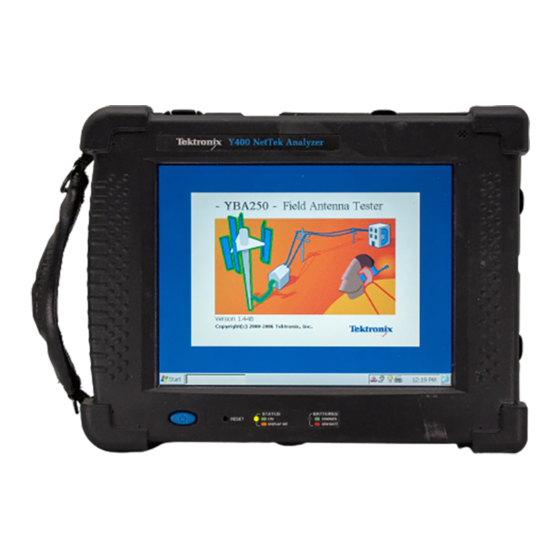

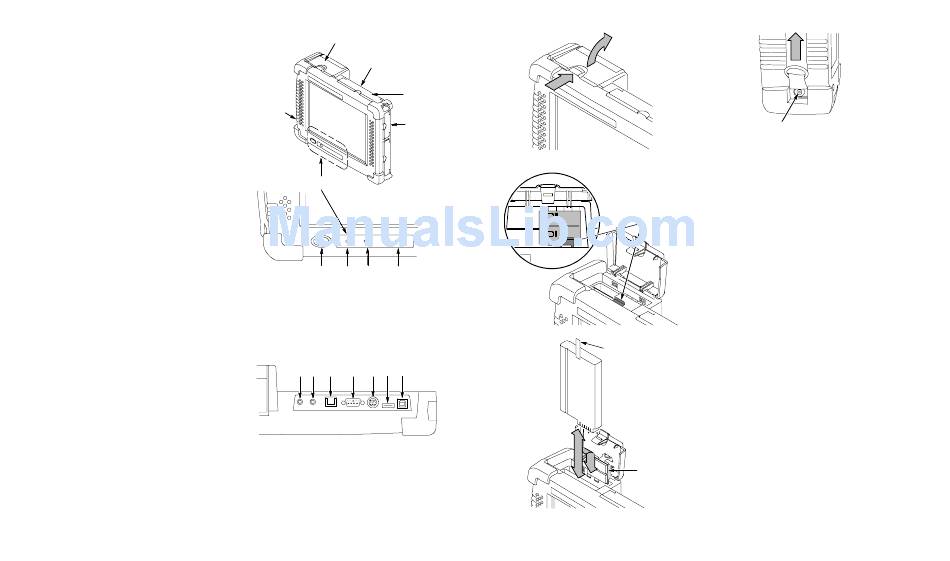

Layout
Batteries
Application
modules
I/O ports
External
power
PC card
Front panel
1 2 3 4
1
.
Power/Suspend button
2
.
Reset button
3
.
Status light
4
.
Battery charge/level light
Input and Output Ports
3
1 2 4 5 6 7
1
.
Microphone input
2
.
Headphone jack
3
.
Ethernet (RJ-45)
4
.
Serial (RS-232)
5
.
Keyboard
6
.
USB host
7
.
USB slave
Installing/Removing Batteries
1
2
Pull and lift tab:
Swing up retainer
3
Lift battery by strap
Retainer in
open position
Connecting Power Adapters
Power adapter jack
Charging Batteries
1
.
Connect AC or DC power adapter to Y400.
2
.
Connect AC or DC power adapter to appropriate
power source. The battery charge/level light turns
green.
3
.
Battery charge time (full charge):
H Analyzer powered off: 4 hours
H Analyzer powered on: 8 hours
For more information on battery charging, battery
calibration, and power management, select Start >
Help > Windows CE Basics > Tektronix NetTek
Analyzer Platform Basics > Power Management.
Powering On and Off the Analyzer
To power on the NetTek Analyzer, press the
Power/Suspend button (blue button at lower left
corner of instrument). Powering up the NetTek
Analyzer takes about 30 seconds.
To power off the NetTek Analyzer, do one of the
following:
H Press the Power/Suspend button
H Select Start > Shutdown > Shutdown
For more information on the Shutdown menu
functions, select Start > Help > Windows CE Basics
> Tektronix NetTek Analyzer Platform Basics >
Shutting Down the Instrument
