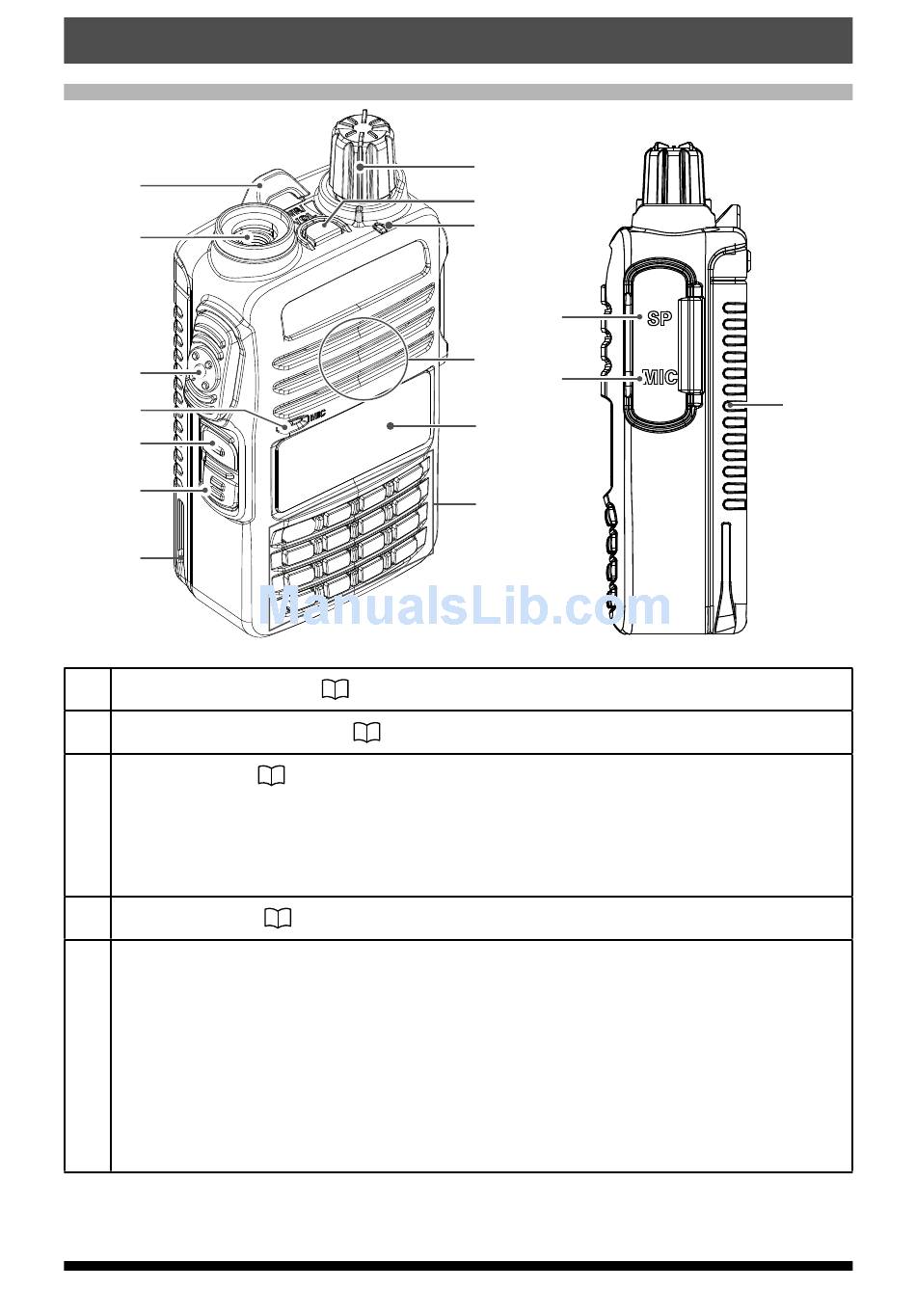

Transceiver

①
②
③
④
⑤
⑥
⑦
①
Strap attachment (
②
Antenna Jack (SMA) (
PTT Switch (
• Press and hold the PTT switch to transmit, and release it to receive.
③
• In the Set mode, press the PTT switch to save the new setting and
return to normal operation.
④
Microphone (
MONI/T.CALL Switch
• USA/Asian version
While pressing and holding the MONI/T.CALL Switch, the squelch is
⑤
opened temporarily. Press the Function key, then press the MONI/
T.CALL Switch to adjust the squelch level.
• European version
Press the MONI/T.CALL switch to activate the T-CALL(1750 Hz).
Controls & Connections
11)
11)
15)
15)
⑧
⑨
⑩
⑭
⑪
⑮
⑫
⑬
⑦
